SEAT

GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

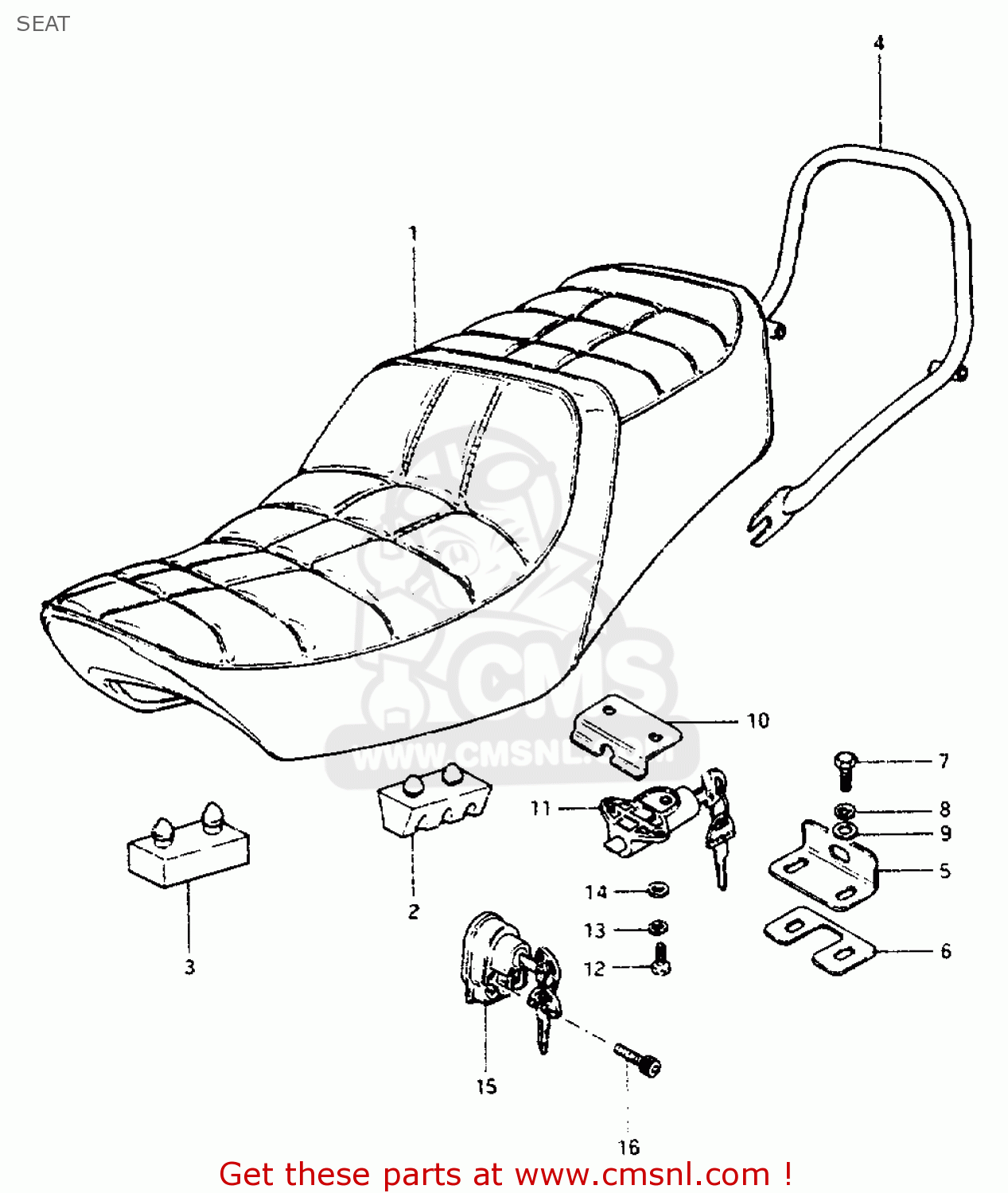

Seat diagram GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

451004750641G
ref: 1-1

SEAT ASSY (BLACK)

€ 340.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4514945330
ref: 2

CUSHION,SUPPORT(50X25X32)

€ 2.00

0932108006
ref: 3

CUSHION

€ 3.00

4621047500
ref: 4

HANDLE,PILLION RIDER

€ 77.50

4521334400
ref: 5

STRIKER, SEAT LOCK

€ 0.00

4521747200
ref: 6

SHIM,SEAT LOCK STRIKER

€ 1.50

0110706168
ref: 7

BOLT, UPPER

€ 3.00

0832121068
ref: 8

LOCK WASHER

€ 2.50

0832221068
ref: 9

WASHER

€ 2.00

4521434400
ref: 10

GUIDE, PLATE

€ 3.50

9570047820
ref: 11

LOCK ASSEMBLY,SEAT

€ 61.50

0110706208
ref: 12

BOLT

€ 2.00

0832121068
ref: 13

LOCK WASHER

€ 2.50

0832221068
ref: 14

WASHER

€ 2.00

9570034210
ref: 15

LOCK ASSY,HELMET

€ 59.00

0910605008
ref: 16

BOLT 5X25

€ 2.00
