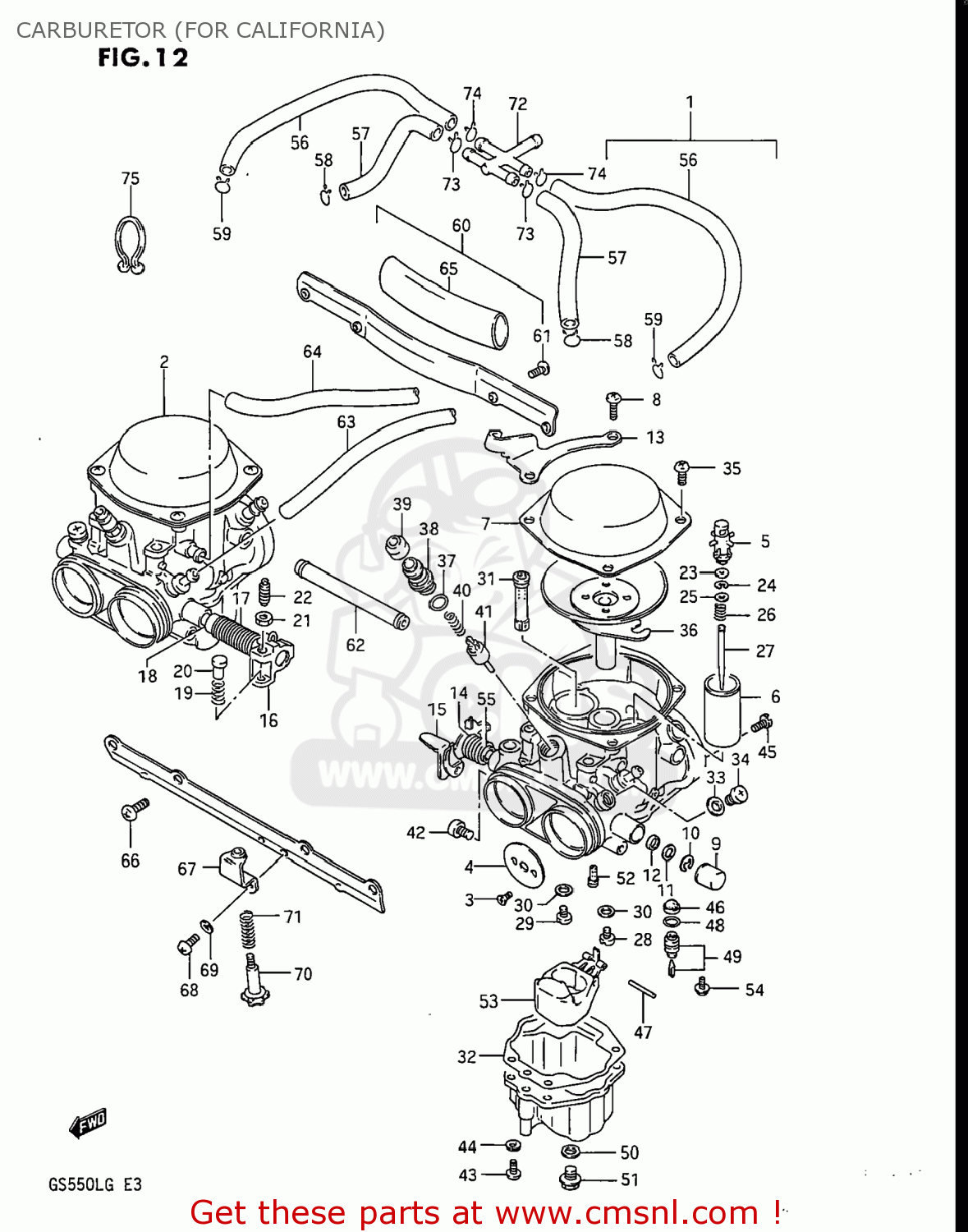

CARBURETOR (FOR CALIFORNIA)

ref

part #

description

quantity

1

1320143640
ref: 1

CARBURETOR ASSEMBLY

€ 324.00

2

1320243640
ref: 2

CARBURETOR ASSEMBLY

€ 324.00

3

1360444080
ref: 3

SCREW

€ 3.50

4

1355143450
ref: 4

VALVE,THROTTLE

€ 0.00

5

1351143410
ref: 5

HOLDER,GUIDE

€ 6.50

6

1355143440
ref: 6

VALVE,THROTTLE

€ 0.00

7

1350243430
ref: 7

COVER,DIAPHRAGM

€ 0.00

8

0211205125
ref: 8
02112-0512A

SCREW

€ 1.50

9

1357845530
ref: 9
13578-47070

CAP,THROTTLE SHAFT

€ 5.50

10

1361744080
ref: 10

E RING

€ 3.50

11

1355747070
ref: 11

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

12

1365151010
ref: 12

SEAL

€ 4.00

13

1362143420
ref: 13

BRACKET,THROTTLE CABLE

€ 5.50

14

1357343410
ref: 14

SPRING,THROTTLE SHAFT

€ 6.50

15

1355043410
ref: 15

SHAFT ASSEMBLY

€ 0.00

16

1355043400
ref: 16

SHAFT ASSEMBLY

€ 0.00

17

1357343400
ref: 17

SPRING

€ 9.50

18

1357443410
ref: 18

RING

€ 0.00

19

1326844010
ref: 19

SPRING,THROTTLE SCREW

€ 3.00

20

1357547070
ref: 20

PIN,THROTTLE LEVER

€ 2.50

21

1360747070
ref: 21

NUT

€ 4.00

22

1360547080
ref: 22

SCREW

€ 7.00

23

1338747010
ref: 23

RING

€ 7.50

24

1341547070
ref: 24
13394-10010

CAP,LEVER

€ 4.50

25

1338244030
ref: 25

WASHER

€ 3.50

26

1338844030
ref: 26

SPRING

€ 6.00

27

1338343410
ref: 27

NEEDLE JET

€ 8.50

28-1

0949190007
ref: 28-1

JET,MAIN(90)

€ 10.50

28-2

0949192004
ref: 28-2

JET,MAIN(92.5)

€ 8.50

29-1

0949197003
ref: 29-1

JET,MAIN(97.5)

€ 8.50

29-2

0949120012
ref: 29-2

JET,MAIN(102.5)

€ 8.50

30

1333244080
ref: 30
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

31

0949400452
ref: 31

JET,NEEDLE

€ 16.00

32

1325143410
ref: 32
13251-05C00

GASKET,FLOAT CHAMBER (MCA)

€ 10.50

33

1353143410
ref: 33

WASHER

€ 3.50

34

1360543410
ref: 34

SCREW

€ 0.00

35

0211205105
ref: 35
02112-0510A

SCREW

€ 2.00

36

1350043410
ref: 36

DIAPHRAGM,CARBURETOR

€ 181.50

37

1327847090
ref: 37

O RING

€ 2.00

38

1341843410
ref: 38

HOLDER,GUIDE

€ 6.50

39

1368104010
ref: 39

CAP

€ 3.00

40

1341743410
ref: 40
13417-01010

SPRING

€ 3.50

41

1341143410
ref: 41

VALVE,STARTER

€ 23.50

42

1360573000
ref: 42

SCREW

€ 10.50

43

0211204165
ref: 43
02112-0416A

SCREW

€ 1.00

44

0832121045
ref: 44
08321-0104A

LOCK WASHER

€ 2.00

45

0949230004
ref: 45

JET,PILOT(150)

€ 7.50

46

1337665010
ref: 46
13376-19F00

FILTER

€ 6.50

47

1325420010
ref: 47

PIN,FLOAT

€ 3.00

48

1337444080
ref: 48
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

49

1337043410
ref: 49
13370-48B00

VALVE ASSEMBLY,NEEDLE

€ 70.50

50

1324644080
ref: 50

GASKET (NAS)

€ 3.50

51

1324743410
ref: 51
13247-44080

PLUG,DRAIN

€ 9.50

52

0949235010
ref: 52

JET,PILOT(37.5)

€ 10.50

53

1325043410
ref: 53

FLOAT

€ 28.00

54

1360243410
ref: 54

SCREW

€ 2.50

55

1357443400
ref: 55

RING,THROTTLE SHAFT

€ 0.00

56

1368306A00
ref: 56

HOSE

€ 7.50

57

1368343570
ref: 57

HOSE

€ 3.50

58

1367111300
ref: 58

CLIP

€ 4.50

59

1367105A30
ref: 59
09401-08410

CLIP

€ 2.50

60

1321043420
ref: 60

FLANGE ASSEMBLY,CARBURETOR

€ 70.50

61

0211205125
ref: 61
02112-0512A

SCREW

€ 1.50

62

1368543410
ref: 62

PIPE,CARBURETOR

€ 25.50

63

1368345050
ref: 63
09355-45855-600

HOSE 4.5X8X390

€ 14.00

64

1368343410
ref: 64
09352-70113-600

HOSE

€ 17.50

65

1368443440
ref: 65

HOSE(16X19X100)

€ 6.50

66

0211206125
ref: 66
02112-0612A

SCREW

€ 1.50

67

1362143430
ref: 67

BRACKET,SLOW ADJUST

€ 6.00

68

0211205085
ref: 68
02112-0508A

SCREW

€ 2.00

69

0832121055
ref: 69
08321-0105A

WASHER,LOCK

€ 3.00

70

1326743420
ref: 70
13267-34390

ADJUSTER

€ 15.50

71

1326843410
ref: 71
13375-14D10

SPRING

€ 6.50

72

1327105A00
ref: 72

SPRING

€ 0.00

73

1367111300
ref: 73

CLIP

€ 4.50

74

1367105A30
ref: 74
09401-08410

CLIP

€ 2.50

75

0940800021
ref: 75

CLIP(ID:16)

€ 1.50
