SEAT
GS550L 1986 (G) USA (E03)

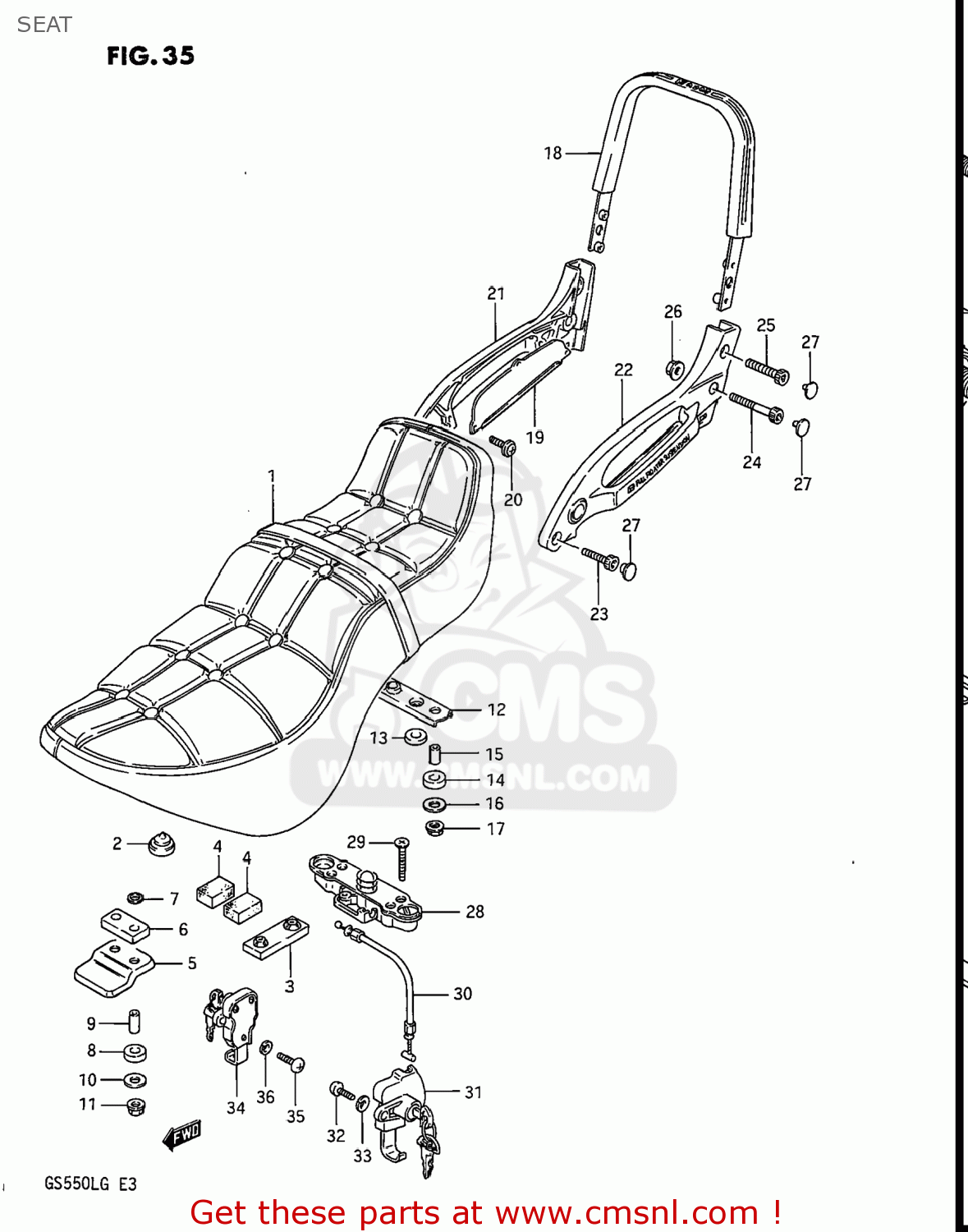

Seat diagram GS550L 1986 (G) USA (E03)
SEAT GS550L 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004352059N
ref: 1-1
45100-43531-59N
SEAT ASSEMBLY
€ 228.00
1-2
451004352159N
ref: 1-2
45100-43531-59N
SEAT ASSEMBLY
€ 228.00
2
0932110012
ref: 2
CUSHION
€ 3.00
3
4514943500
ref: 3
CUSHION,SEAT
€ 3.00
4
4525502100
ref: 4
CUSHION,BATTERY
€ 3.00
5
4511943501
ref: 5
PLATE,SEAT HOOK,FRONT
€ 3.00
6
4512513600
ref: 6
CUSHION,SEAT
€ 3.00
7
0832221067
ref: 7
08322-01067
WASHER
€ 2.00
8
0932426470
ref: 8
CUSHION
€ 0.00
9
0918006035
ref: 9
09180-06249
SPACER (6.1X8X12)
€ 2.50
10
0916006006
ref: 10
09160-06084
WASHER
€ 2.00
11
0831626066
ref: 11
08316-1006B
NUT
€ 2.00
12
4521043400
ref: 12
STRIKER, SEAT LOCK
€ 18.50
13
4521343400
ref: 13
CUSHION,STRIKER
€ 3.50
14
4514723450
ref: 14
CUSHION,SEAT FR
€ 1.50
15
0918006035
ref: 15
09180-06249
SPACER (6.1X8X12)
€ 2.50
16
0916006006
ref: 16
09160-06084
WASHER
€ 2.00
17
0831626066
ref: 17
08316-1006B
NUT
€ 2.00
18
4621043501
ref: 18
HANDLE,PILLION RIDER
€ 86.50
19
4624143500
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 3.50
20
0215205068
ref: 20
02112-0506B
SCREW
€ 2.00
21
4624043501
ref: 21
BRACKET,PILLION RIDER
€ 124.50
22
4625043501
ref: 22
BRACKET,PILLION RIDER
€ 0.00
23
0711008208
ref: 23
07130-08207
BOLT
€ 3.00
24
0711008408
ref: 24
07130-08407
BOLT
€ 3.50
25
0711008258
ref: 25
07130-08257
BOLT
€ 3.50
26
0831931087
ref: 26
NUT
€ 2.50
27
0925006008
ref: 27
CAP(OD:10)
€ 3.00
28
4522013601
ref: 28
LOCK ASSY,SEAT STRIKER
€ 47.00
29
0211206305
ref: 29
02112-0630A
SCREW
€ 2.50
30-1
4528043500
ref: 30-1
45280-43510
CABLE,SEAT LOCK
€ 13.00
30-2
4528043510
ref: 30-2
CABLE,SEAT LOCK
€ 13.00
31
9570043500KEY
ref: 31
LOCK ASSEMBLY,SEAT & HELMET
€ 49.00
32
0211206128
ref: 32
02112-06127
SCREW 6X12
€ 2.00
33
0832121067
ref: 33
08321-01067
WASHER,LOCK
€ 2.50
34
9570043510KEY
ref: 34
LOCK ASSEMBLY,HELMET
€ 39.50
35
0211206128
ref: 35
02112-06127
SCREW 6X12
€ 2.00
36
0832121067
ref: 36
08321-01067
WASHER,LOCK
€ 2.50
