STAND

GS550L 1986 (G) USA (E03)

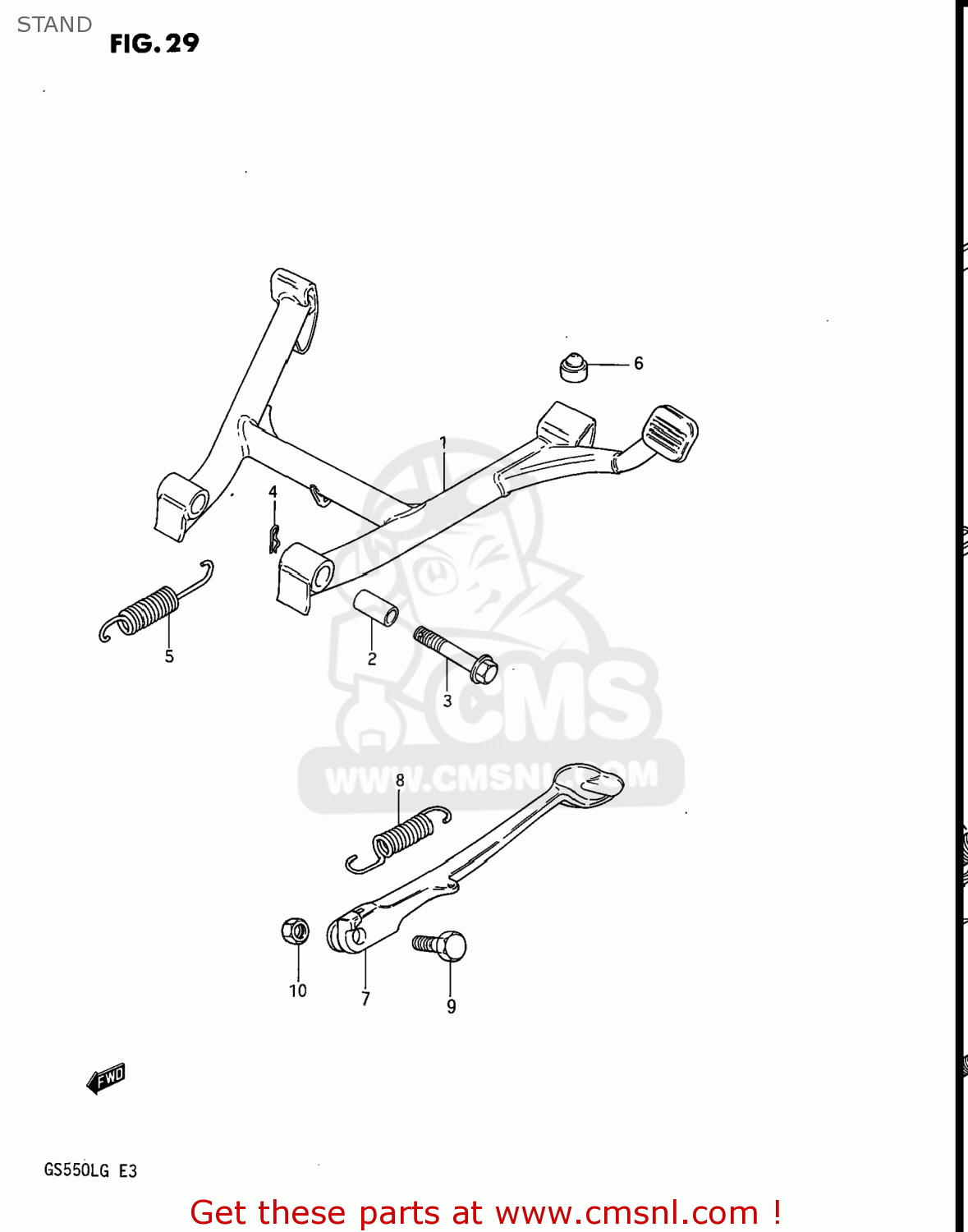

Stand diagram GS550L 1986 (G) USA (E03)

STAND GS550L 1986 (G) USA (E03)

STAND GS550L 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4210043501
ref: 1-1

STAND,CENTER

€ 123.50

1-2

4210043520
ref: 1-2

STAND,CENTER

€ 44.00

2

0918010084
ref: 2

SPACER (10.5X16X31.8)

€ 3.00

3

0910110028
ref: 3

BOLT 10X50

€ 4.50

4

0938510001
ref: 4
09385-10005

CLIP

€ 1.50

5

0944318012
ref: 5

SPRING

€ 9.00

6

0932110001
ref: 6

CUSHION

€ 2.50

7

4231143501291
ref: 7

STAND,SIDE

€ 0.00

8

0944317005
ref: 8
09443-17008-XC0

SPRING

€ 11.50

9

0911110019
ref: 9
09111-10047

BOLT L:30

€ 4.50

10

0831022106
ref: 10
08310-0010A

NUTM10X1.25X8

€ 2.00
