TRANSMISSION
GS550L 1986 (G) USA (E03)

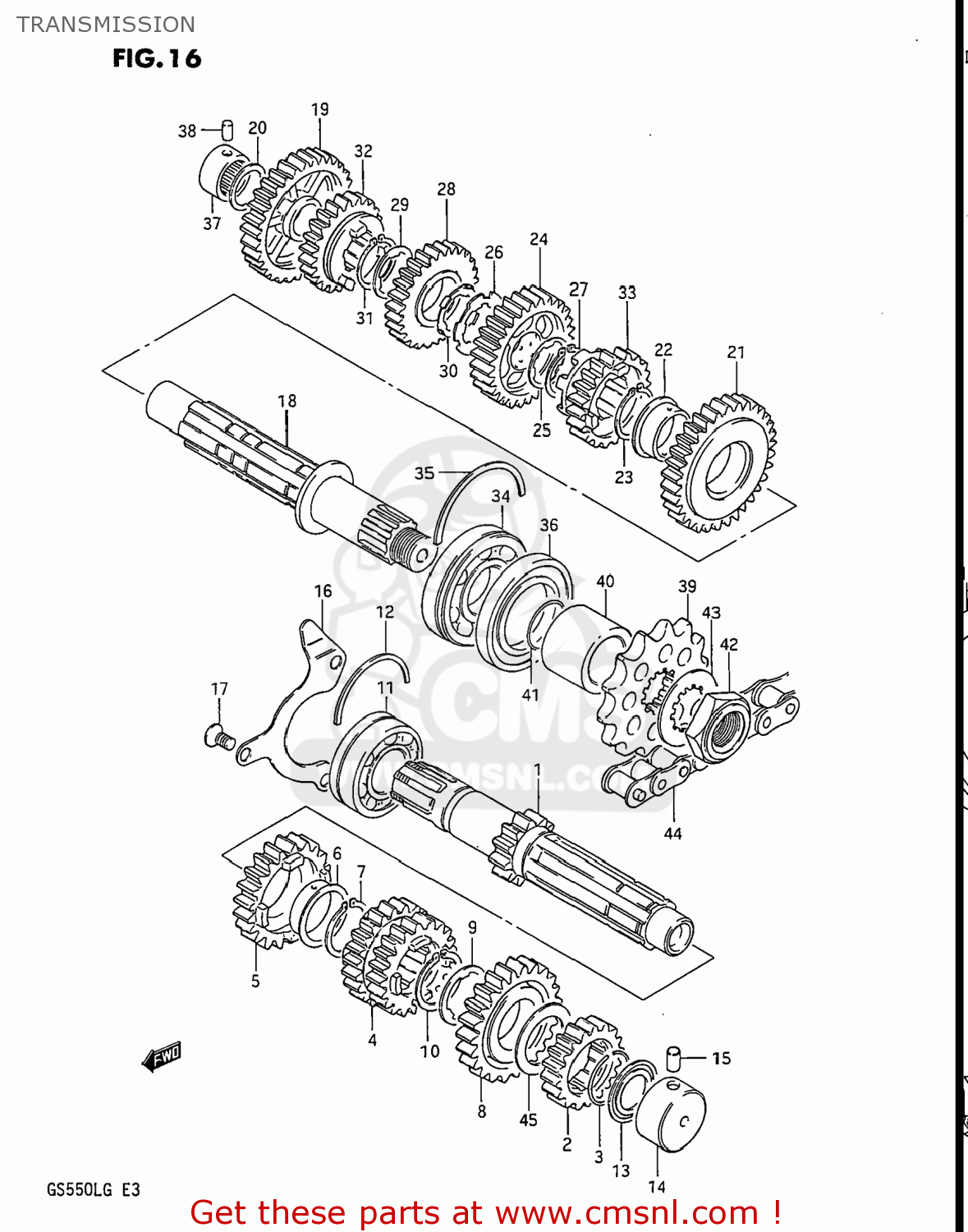

Transmission diagram GS550L 1986 (G) USA (E03)
TRANSMISSION GS550L 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412143400
ref: 1
SHAFT,COUNTER
€ 152.00
2
2422143400
ref: 2
GEAR,SECOND DRIVE
€ 33.50
3
0938025006
ref: 3
RING,SNAP
€ 2.00
4
2423143401
ref: 4
GEAR,THIRD/FOURTH DRIVE
€ 98.50
5
2425143400
ref: 5
GEAR,FIFTH DRIVE
€ 85.00
6
0930125001
ref: 6
24322-19F00
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
€ 3.00
8
2426143401
ref: 8
GEAR,SIXTH DRIVE
€ 74.50
9
0916725012
ref: 9
WASHER,LOCK
€ 3.50
10
0938025003
ref: 10
RING,SNAP
€ 3.00
11
0926725008
ref: 11
BEARING(25X52X19.6)
€ 79.00
12
0939058001
ref: 12
C RING
€ 2.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
€ 7.00
14
0926320049
ref: 14
BEARING(20X34X17.5)
€ 58.00
15
0422107209
ref: 15
PIN
€ 1.50
16
2474143400
ref: 16
PLATE,COUNTERSHAFT BEARING
€ 5.50
17
0212206168
ref: 17
02122-06167
SCREW
€ 2.00
18
2413143401
ref: 18
SHAFT,DRIVE
€ 125.50
19
2431043400
ref: 19
GEAR,FIRST DRIVEN
€ 59.50
20
0821120341
ref: 20
WASHER
€ 2.00
21
2432143400
ref: 21
GEAR,SECOND DRIVEN
€ 76.50
22
0930125001
ref: 22
24322-19F00
BUSHING
€ 12.50
23
0938025003
ref: 23
RING,SNAP
€ 3.00
24
2433043401
ref: 24
GEAR,3RD DRIVEN
€ 102.50
25
0916725012
ref: 25
WASHER,LOCK
€ 3.50
26
0916725013
ref: 26
WASHER,LOCK
€ 2.50
27
0938025003
ref: 27
RING,SNAP
€ 3.00
28
2434043400
ref: 28
GEAR,FOURTH DRIVEN
€ 87.00
29
0916725012
ref: 29
WASHER,LOCK
€ 3.50
30
0916925001
ref: 30
WASHER
€ 2.00
31
0938025003
ref: 31
RING,SNAP
€ 3.00
32
2435143401
ref: 32
GEAR,FIFTH DRIVEN
€ 46.00
33
2436143402
ref: 33
GEAR,SIXTH DRIVEN
€ 48.50
34
0926225065
ref: 34
09262-25105
BALL BEARING 25X62X17
€ 59.50
35
0939062006
ref: 35
09390-62012
C-RING
€ 5.00
36
0928333002
ref: 36
SEAL,OIL(33X62X7)
€ 14.00
37
0926320040
ref: 37
BEARING(20X34X20)
€ 42.50
38
0422107209
ref: 38
PIN
€ 1.50
39
2751143400
ref: 39
27510-21E00
SPROCKET,ENGINE
€ 45.00
40
0918025067
ref: 40
SPACER
€ 4.00
41
0928025001
ref: 41
O RING(D:1,ID:24.5)
€ 2.50
42
0915920001
ref: 42
09159-20004
NUT
€ 12.00
43
0916725011
ref: 43
09167-25019
WASHER
€ 2.50
44
2760031320
ref: 44
27600-19C00-112
CHAIN ASSEMBLY,DRIVE
€ 197.00
45-1
0918125036
ref: 45-1
SHIM (T:0.5)
€ 3.00
45-2
0918125037
ref: 45-2
SHIM (T:0.6)
€ 3.50
45-3
0918125038
ref: 45-3
SHIM (T:0.7)
€ 3.50
45-4
0918125039
ref: 45-4
SHIM
€ 3.00
