GENERATOR

GS550L 1986 (G) USA (E03)

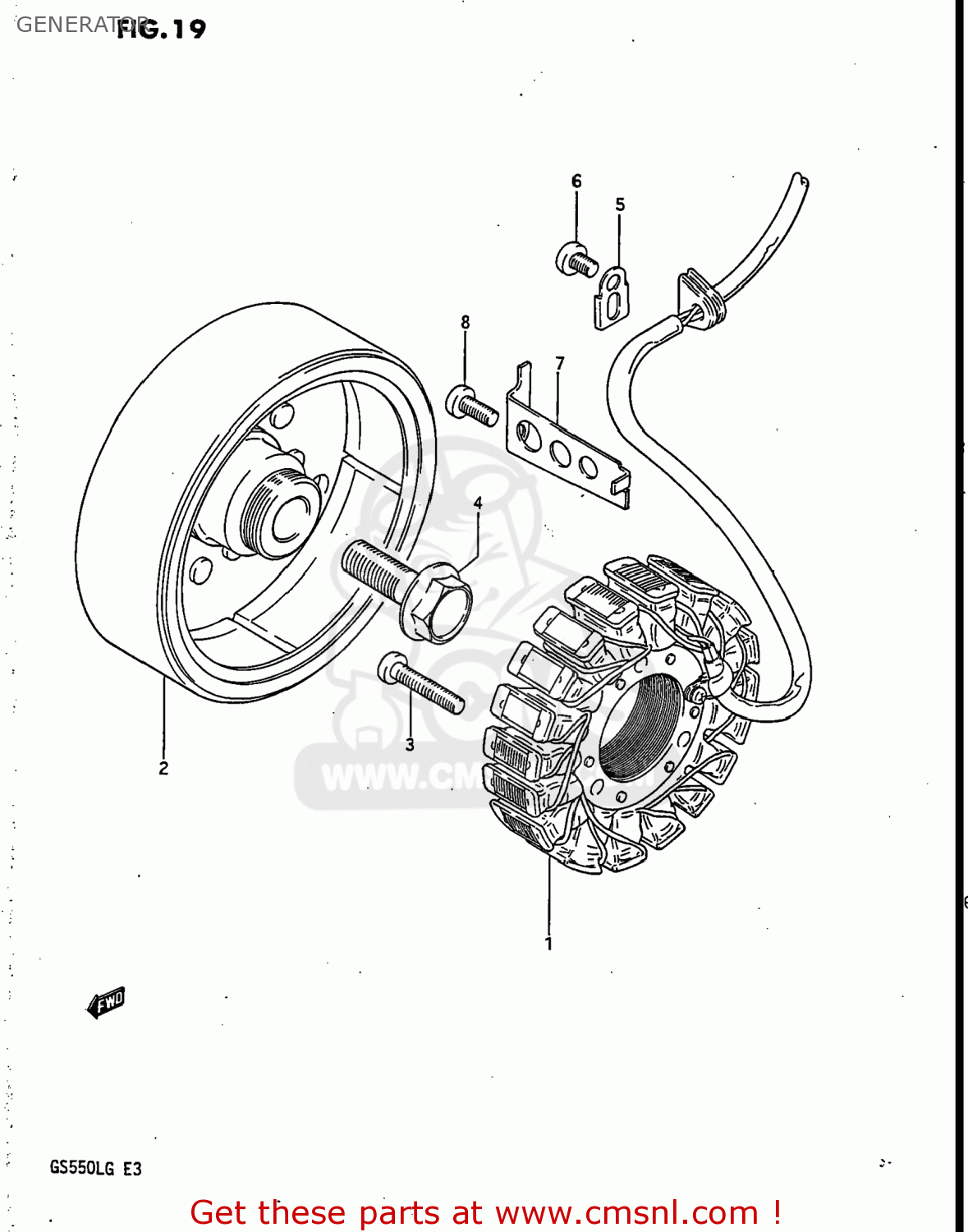

Generator diagram GS550L 1986 (G) USA (E03)

GENERATOR GS550L 1986 (G) USA (E03)

GENERATOR GS550L 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140143400
ref: 1

STARTER ASSY

€ 323.00

2

3140243400
ref: 2

ROTOR ASSEMBLY

€ 368.50

3

0211206308
ref: 3
02112-06307

SCREW 6X30

€ 2.50

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6

0211205088
ref: 6
02112-05087

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8

0211206108
ref: 8
02112-06107

SCREW

€ 1.50
