CRANKCASE COVER
GS550L 1986 (G) USA (E03)

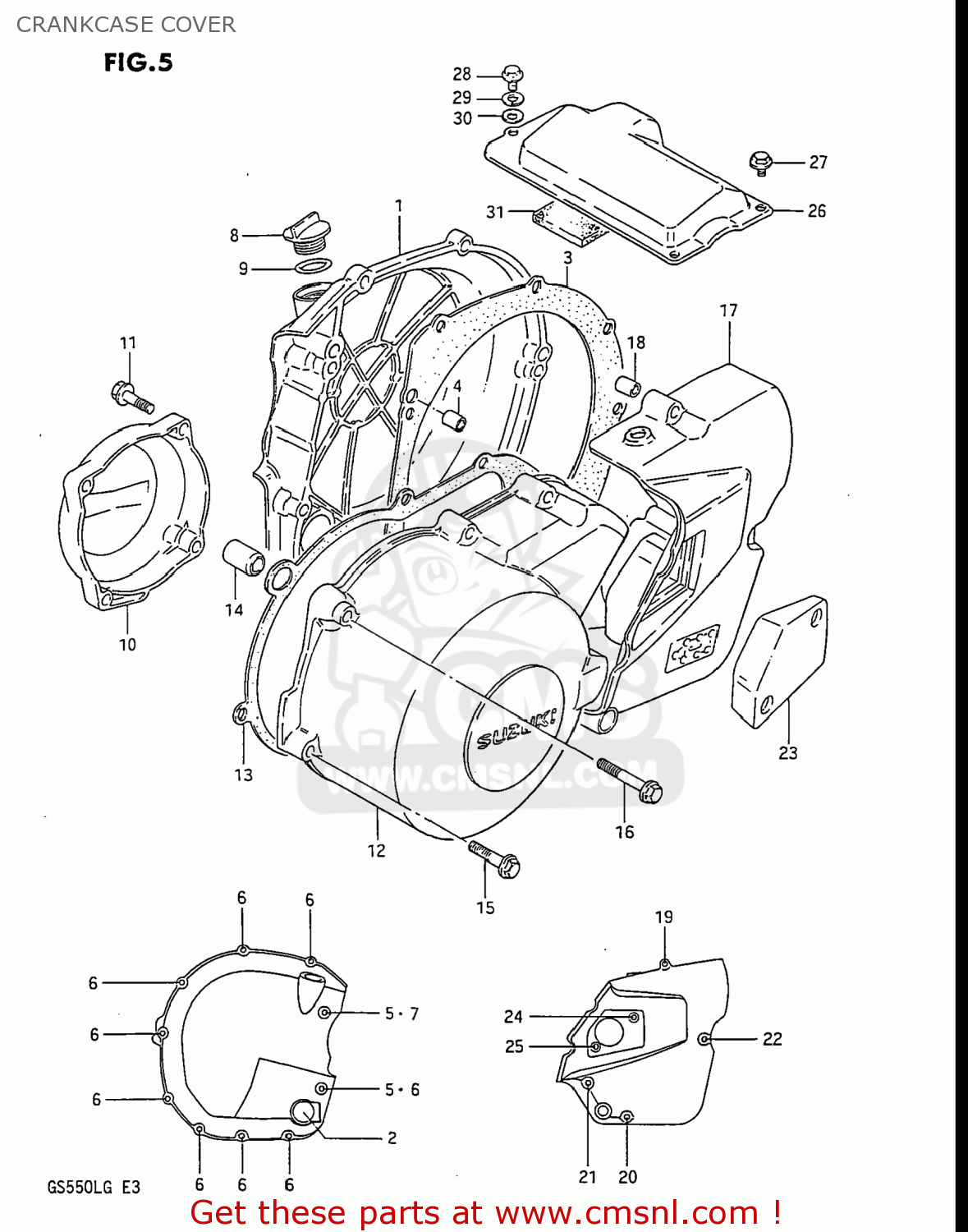

Crankcase cover diagram GS550L 1986 (G) USA (E03)
CRANKCASE COVER GS550L 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134043501
ref: 1
COVER,CLUTCH
€ 125.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148243401
ref: 3
11482-43401-H17
GASKET,CLUTCH COVER (MCA)
€ 16.50
4
0421109129
ref: 4
PIN
€ 2.00
5
0916806015
ref: 5
09168-06023
WASHER
€ 2.00
6
0154706257
ref: 6
BOLT
€ 2.50
7
0154706357
ref: 7
BOLT
€ 2.50
8
0925920007
ref: 8
PLUG(20X10)
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
€ 2.00
10
1138143500
ref: 10
11381-43400
COVER,CONTACT BREAKER
€ 56.50
11
0154706257
ref: 11
BOLT
€ 2.50
12
1135143500
ref: 12
11351-43400
COVER
€ 173.00
13
1148343400
ref: 13
11483-43400-H17
GASKET,MAGNETO COVER (MCA)
€ 15.50
14
0920611005
ref: 14
09206-11017
PIN (11X20)(SUS)
€ 6.50
15
0154706307
ref: 15
BOLT
€ 2.50
16
0154706457
ref: 16
BOLT
€ 2.50
17
1136043500
ref: 17
COVER,ENGINE SPROCKET
€ 82.00
18
0421109129
ref: 18
PIN
€ 2.00
19
0154706407
ref: 19
BOLT
€ 2.50
20
0154706507
ref: 20
BOLT
€ 2.50
21
0154706557
ref: 21
BOLT
€ 2.50
22
0154706807
ref: 22
01547-0680B
BOLT
€ 3.50
23
1138743500
ref: 23
11387-43400
CAP,CLUTCH RELEASE ADJUST
€ 26.00
24
0213205127
ref: 24
02122-05127
SCREW 5X12
€ 2.50
25
0213205207
ref: 25
02122-0520A
SCREW
€ 2.00
26
1138243401
ref: 26
COVER,STARTER MOTOR
€ 20.00
27
0154705084
ref: 27
01547-0508B
BOLT
€ 2.50
28
0154705125
ref: 28
01547-0512B
BOLT
€ 2.00
29
0832121055
ref: 29
08321-0105A
WASHER,LOCK
€ 3.00
30
0916005031
ref: 30
09160-05037
WASHER
€ 1.50
31
1136234200
ref: 31
DAMPER,STARTER MOTOR CLUTCH
€ 5.50
