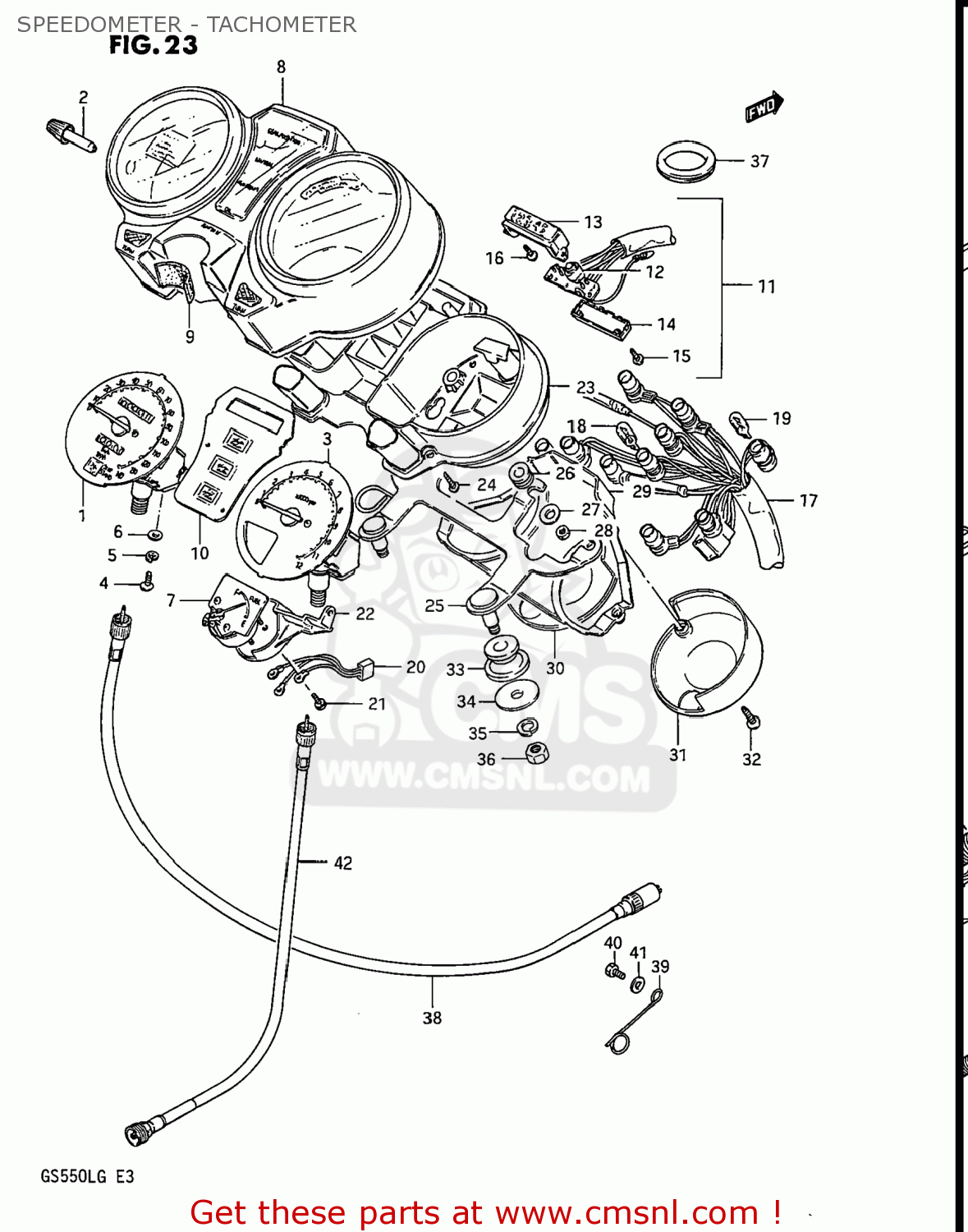

SPEEDOMETER - TACHOMETER - GS550L 1986 (G) USA (E03)

ref

part #

description

quantity

1

3412015530
ref: 1

METER,SPEEDOMETER (KM/MPH)

€ 216.00

2

3412449400
ref: 2

KNOB,TRIP

€ 4.50

3

3422043530
ref: 3
34220-15510

TACHOMETER

€ 184.00

4

0211204108
ref: 4
02112-04107

SCREW 4X10

€ 2.00

5

0832121047
ref: 5
08321-0104A

WASHER,LOCK 4M

€ 2.00

6

0832221048
ref: 6
08322-01047

WASHER

€ 2.00

7

3432015511
ref: 7

METER,FUEL

€ 73.00

8

3415015510
ref: 8

HOOD,METER

€ 105.00

9

3499347000
ref: 9

SEAL,IGNITION SWITCH

€ 3.00

10

3638615510
ref: 10

PLATE,PILOT BOX

€ 17.50

11

3645047751
ref: 11

INDICATOR ASSEMBLY,GEAR POSITION

€ 112.00

12

0947112071
ref: 12

BULB(14V1.12W)

€ 5.00

13

3645233201
ref: 13

CASE,GEAR INDICATOR

€ 18.00

14

3645445100
ref: 14

COVER,LWR

€ 7.00

15

3645645100
ref: 15
03511-03146

SCREW,GEAR INDICATOR

€ 2.00

16

3645633220
ref: 16
35625-01A00

SCREW,INDICATOR

€ 1.50

17

3417315510
ref: 17

SOCKET,PILOT CASE

€ 0.00

18

0947112028
ref: 18

BULB(12V3.4W,T10)

€ 3.50

19

0947112077
ref: 19

BULB(12V1.7W,T10,WB121)

€ 1.00

20

3437815511
ref: 20

CORD,FUELMETER

€ 14.50

21

3438309400
ref: 21

SCREW(3X22)

€ 2.50

22

3495115510
ref: 22

BRACKET,FUEL METER

€ 7.50

23

3411115510
ref: 23

CASE,METER INNER

€ 88.00

24

3645615510
ref: 24

SCREW,PILOT BOX

€ 1.50

25

3495043510
ref: 25

BRACKET,COMBINATION METER

€ 55.00

26

3418915510
ref: 26
34189-32B00

CUSHION

€ 5.00

27

0916005017
ref: 27
09160-05043

WASHER (5.5X16X1.2)

€ 2.50

28

0831011058
ref: 28
08310-00057

NUT

€ 2.50

29

3638315510
ref: 29

COVER,LWR

€ 24.00

30

3419315510
ref: 30

COVER,METER,UNDER

€ 30.00

31

3429315510
ref: 31

COVER,METER UNDER

€ 36.00

32

3645615520
ref: 32
03141-0420A

SCREW

€ 1.50

33

3495631001
ref: 33

CUSHION,METER BRACKET

€ 4.50

34

0916008057
ref: 34
09160-08135

WASHER (8.5X20X1.6)

€ 2.00

35

0832121084
ref: 35
08321-0108A

WASHER,LOCK,8.

€ 2.50

36

0831011085
ref: 36
08310-0008A

NUT

€ 1.50

37

0930830001
ref: 37

GROMMET

€ 1.50

38-1

3491043500
ref: 38-1
34910-08A00

CABLE ASSEMBLY,SPEEDOMETER

€ 26.50

38-2

3491043510
ref: 38-2
34910-31990

CABLE ASSEMBLY,SPEEDOMETER

€ 25.00

39

3493845100
ref: 39

CLAMP,SPEEDOMETER CABLE

€ 14.50

40

0110706168
ref: 40
01500-06167

BOLT, UPPER

€ 3.00

41

0832221068
ref: 41
08322-01067

WASHER

€ 2.00

42

3494043500
ref: 42
34940-47033

CABLE ASSEMBLY,TACHOMETER

€ 20.50

SPEEDOMETER - TACHOMETER

all assemblies
