FRAME COVER

GS550L 1986 (G) USA (E03)

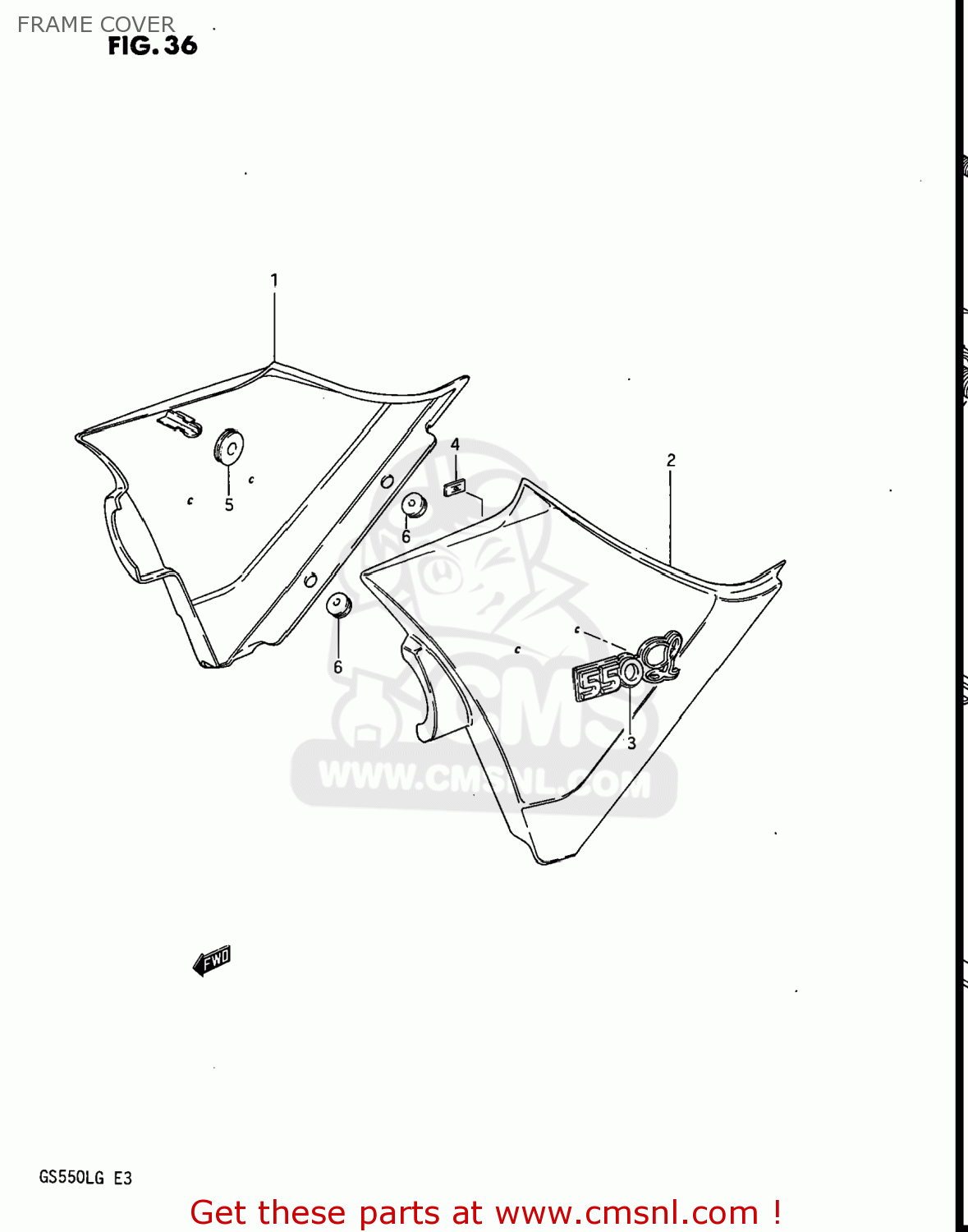

Frame cover diagram GS550L 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

471114351022U
ref: 1-1
47111-43500

COVER,FRAME,RIGHT

€ 46.50

1-2

4711143510019
ref: 1-2
47111-43500

COVER,FRAME,RIGHT

€ 46.50

1-3

471114351020F
ref: 1-3
47111-43500

COVER,FRAME,RIGHT

€ 46.50

1-4

4711143520019
ref: 1-4

COVER,FRAME,RIGHT

€ 37.50

1-5

471114352020F
ref: 1-5

COVER,FRAME,RIGHT

€ 37.00

2-1

472114351022U
ref: 2-1
47211-43500

COVER,FRAME,LEFT

€ 56.00

2-2

4721143510019
ref: 2-2
47211-43500

COVER,FRAME,LEFT

€ 56.00

2-3

472114351020F
ref: 2-3
47211-43500

COVER,FRAME,LEFT

€ 56.00

6813143520
ref: 3

EMBLEM,FRAME COVER

€ 14.00

0914803002
ref: 4

NUT

€ 3.00

0932008018
ref: 5

CUSHION

€ 4.00

0932005006
ref: 6
09320-06504

CUSHION

€ 4.00
