BATTERY

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

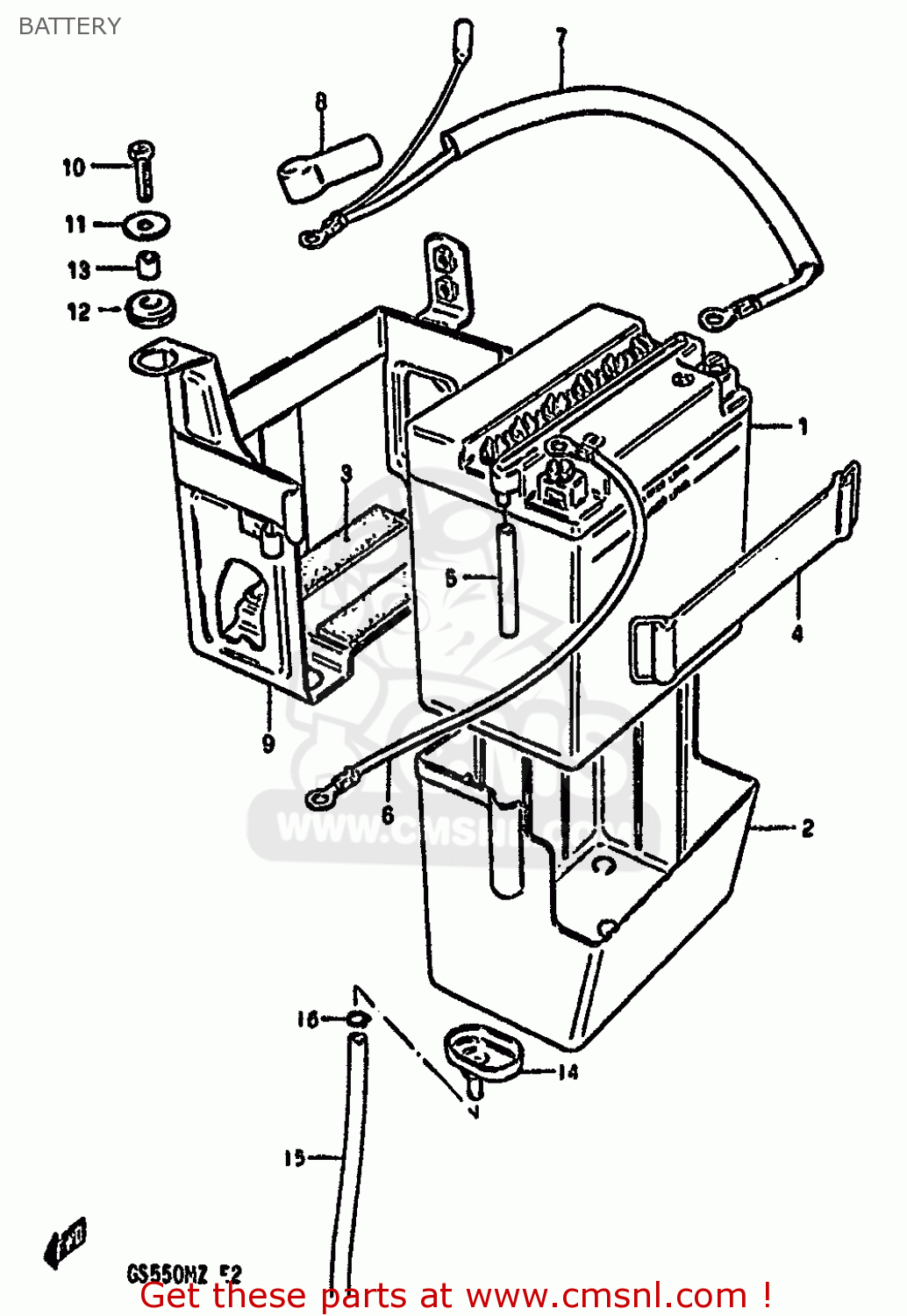

Battery diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

BATTERY GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

BATTERY GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3361044010
ref: 1

BATTERY ASSY (12V)

€ 74.50

2

3366147000
ref: 2

CASE,BATTERY

€ 12.50

3

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

4

0946200043
ref: 4

BAND

€ 4.50

5

3368147000
ref: 5

HOSE, EXHAUST (L:45)

€ 4.50

6

3385034500
ref: 6

LEAD WIRE,BATTERY(-)

€ 7.00

7

3382047002
ref: 7

WIRE,BATTERY PLUS

€ 14.50

8

3362445000
ref: 8

CAP,TERMINAL

€ 5.50

9

4154047010
ref: 9

HOLDER,BATTERY

€ 41.00

10

0912806006
ref: 10

BOLT(6X20)

€ 2.00

11

0916006020
ref: 11

WASHER

€ 2.00

12

0932008007
ref: 12

CUSHION

€ 4.00

13

0918006038
ref: 13

SPACER(6.1X9X7.5)

€ 2.00

14

3366247000
ref: 14

FUNNEL,BATTERY EXHAUST

€ 3.50

15

3368002100
ref: 15
FROM 33680-47001

HOSE,BATTERY EXHAUST

€ 4.50

16

0940108301
ref: 16

CLIP

€ 1.50
