REAR MASTER CYLINDER

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

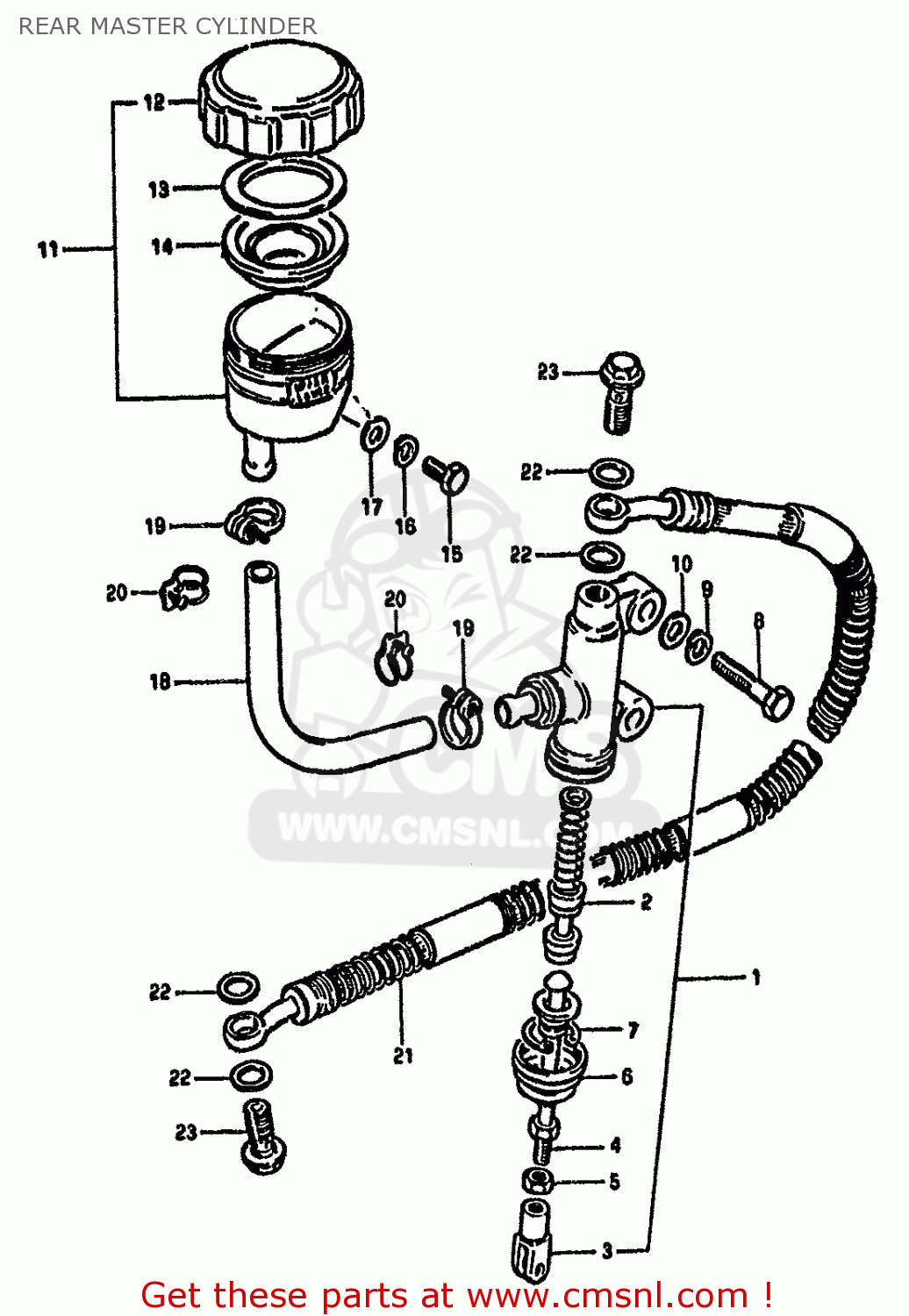

Rear master cylinder diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

REAR MASTER CYLINDER GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
REAR MASTER CYLINDER GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
REAR MASTER CYLINDER GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
6960045301
ref: 1-1
MODEL X
CYLINDER ASSEMBLY,REAR MASTER
€ 177.00
1-2
6960045302
ref: 1-2
MODEL Z
CYLINDER ASSY,RR MASTER
6960045302
€ 177.00
2-1
6960045810
ref: 2-1
MODEL X
PISTON/CUP SET
€ 53.00
2-2
6960045820
ref: 2-2
MODEL Z
PISTON/CUP SET
6960045820
€ 53.00
3-1
6969245001
ref: 3-1
MODEL X
YOKE
6969245001
€ 11.00
3-2
6969234300
ref: 3-2
MODEL Z
YOKE
6969234300
€ 11.00
4
6967045301
ref: 4
ROD,REAR MASTER CYLINDER
€ 13.50
5-1
0831012088
ref: 5-1
MODEL X
NUT
0831012088
€ 2.00
5-2
6969334300
ref: 5-2
MODEL Z
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
6969145001
€ 6.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
0110708308
ref: 8
BOLT (8X30)
0110708308
€ 2.50
9
0832121088
ref: 9
LOCK WASHER
0832121088
€ 2.00
10
0832211088
ref: 10
WASHER
0832211088
€ 2.00
11
6974034200
ref: 11
TANK ASSEMBLY,RESERVOIR
6974034200
€ 27.50
12
5966918605
ref: 12
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
5966818441
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
5966718441
€ 8.50
15
0110706168
ref: 15
BOLT, UPPER
€ 3.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0832221068
ref: 17
WASHER
0832221068
€ 2.00
18
6973147700
ref: 18
HOSE,RESERVOIR TANK
€ 3.50
19
6973534200
ref: 19
MODEL X
CLAMP
€ 4.50
20
0940016302
ref: 20
MODEL Z
CLAMP
0940016302
€ 4.50
21
6948047701
ref: 21
HOSE,REAR BRAKE
€ 0.00
22
0916110005
ref: 22
WASHER
0916110005
€ 2.00
23
0936010007
ref: 23
BOLT,UNION
0936010007
€ 6.50
