FRAME

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

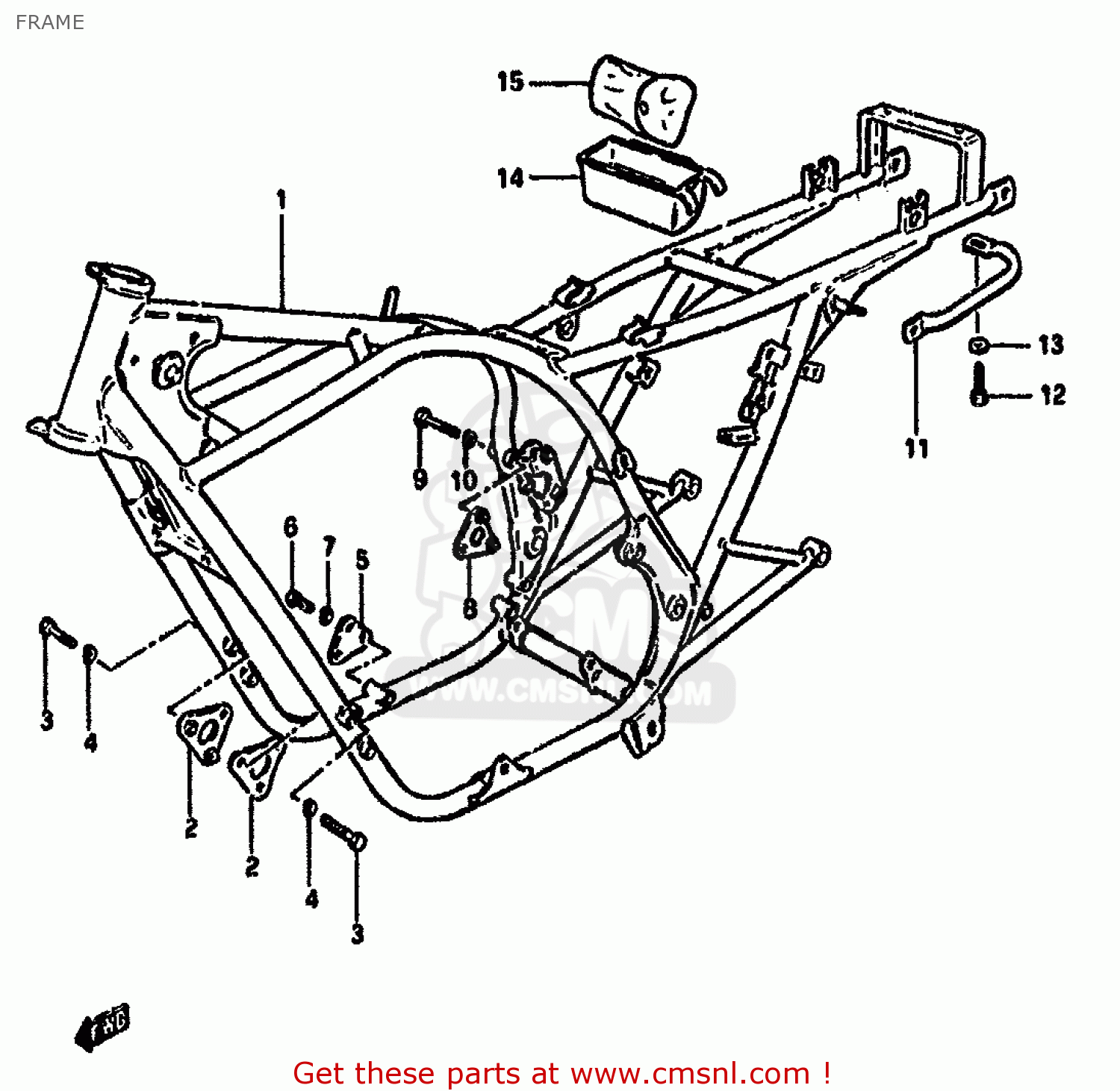

Frame diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

FRAME GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
FRAME GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
FRAME GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
4110047700291
ref: 1-1
FRAME
€ 0.00
1-2
4110047740291
ref: 1-2
E17
FRAME (BLACK)
€ 0.00
1-3
4110047720291
ref: 1-3
E22
FRAME (BLACK)
€ 0.00
2
4191047000019
ref: 2
PLATE,ENGINE MOUNTING
4191047000019
€ 8.50
3
0110708608
ref: 3
BOLT
€ 2.50
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
4199347000019
ref: 5
PLATE,ENGINE MOUNTING
€ 7.50
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
0832121088
€ 2.00
8
4199047001019
ref: 8
PLATE,ENGINE MOUNTING
€ 8.00
9
0110708558
ref: 9
BOLT 8X55
€ 3.00
10
0832121088
ref: 10
LOCK WASHER
0832121088
€ 2.00
11
4161034300
ref: 11
GRIP,FRAME HANDLE
€ 38.50
12
0110708168
ref: 12
BOLT
€ 2.00
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14
4155147000
ref: 14
HOLDER,TOOL
€ 0.00
15-1
0980000230
ref: 15-1
MODEL X
TOOL SET
€ 52.00
15-2
0980006800
ref: 15-2
MODEL Z
TOOL SET
€ 52.00
