REAR BRAKE

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

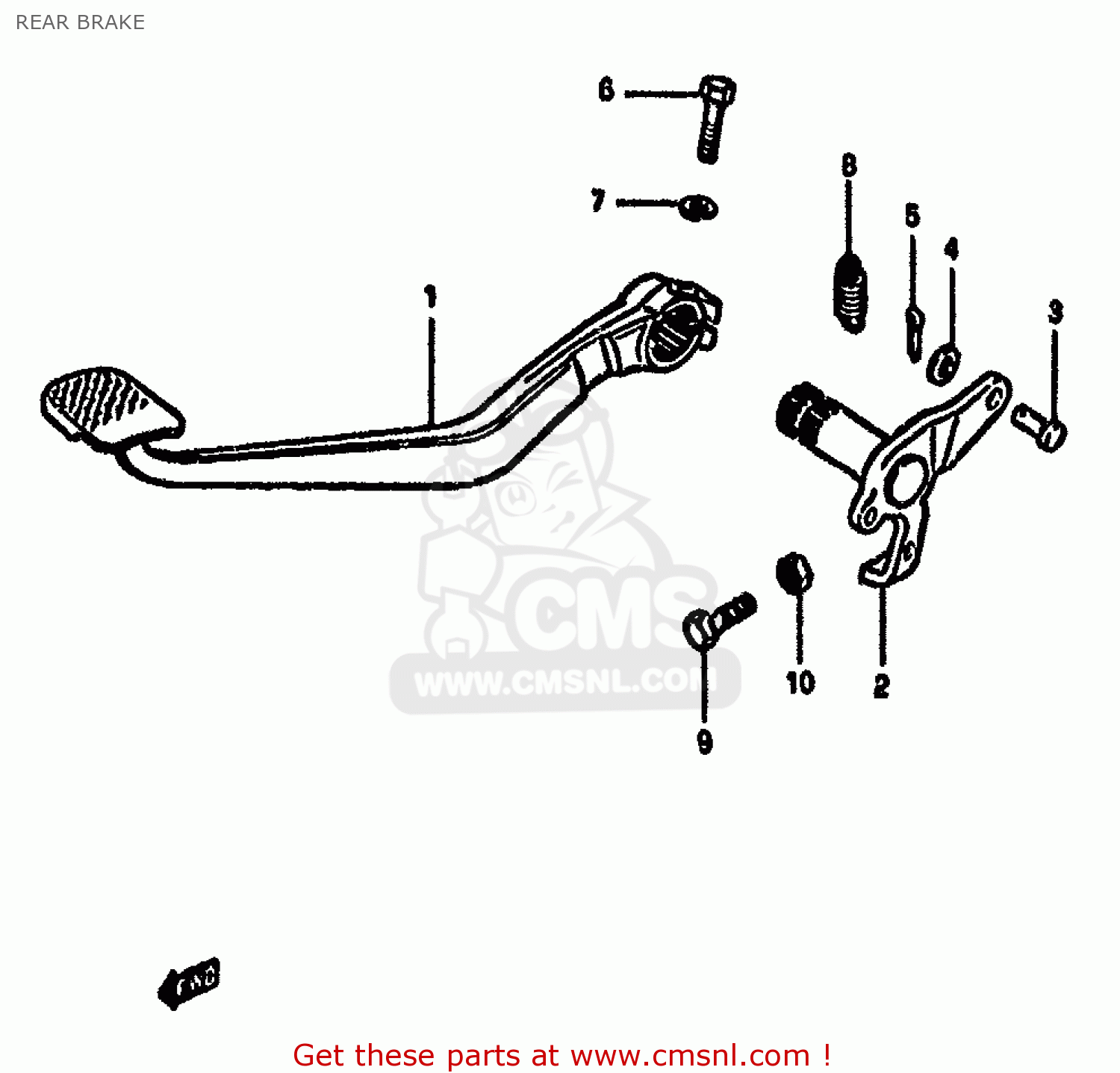

Rear brake diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

REAR BRAKE GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

REAR BRAKE GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4311034300
ref: 1

PEDAL, BRAKE

€ 19.00

2

4312047700
ref: 2

ARM,BRAKE PEDAL

€ 27.50

3

0920006029
ref: 3

PIN

€ 1.50

4

0832221068
ref: 4

WASHER

€ 2.00

5

0411120158
ref: 5

PIN

€ 1.50

6

0110708258
ref: 6

BOLT

€ 2.50

7

0832121088
ref: 7

LOCK WASHER

€ 2.00

8

0944314013
ref: 8

SPRING

€ 21.50

9

0110706208
ref: 9

BOLT

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50
