CHAIN CASE-SHOCK ABSORBER

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

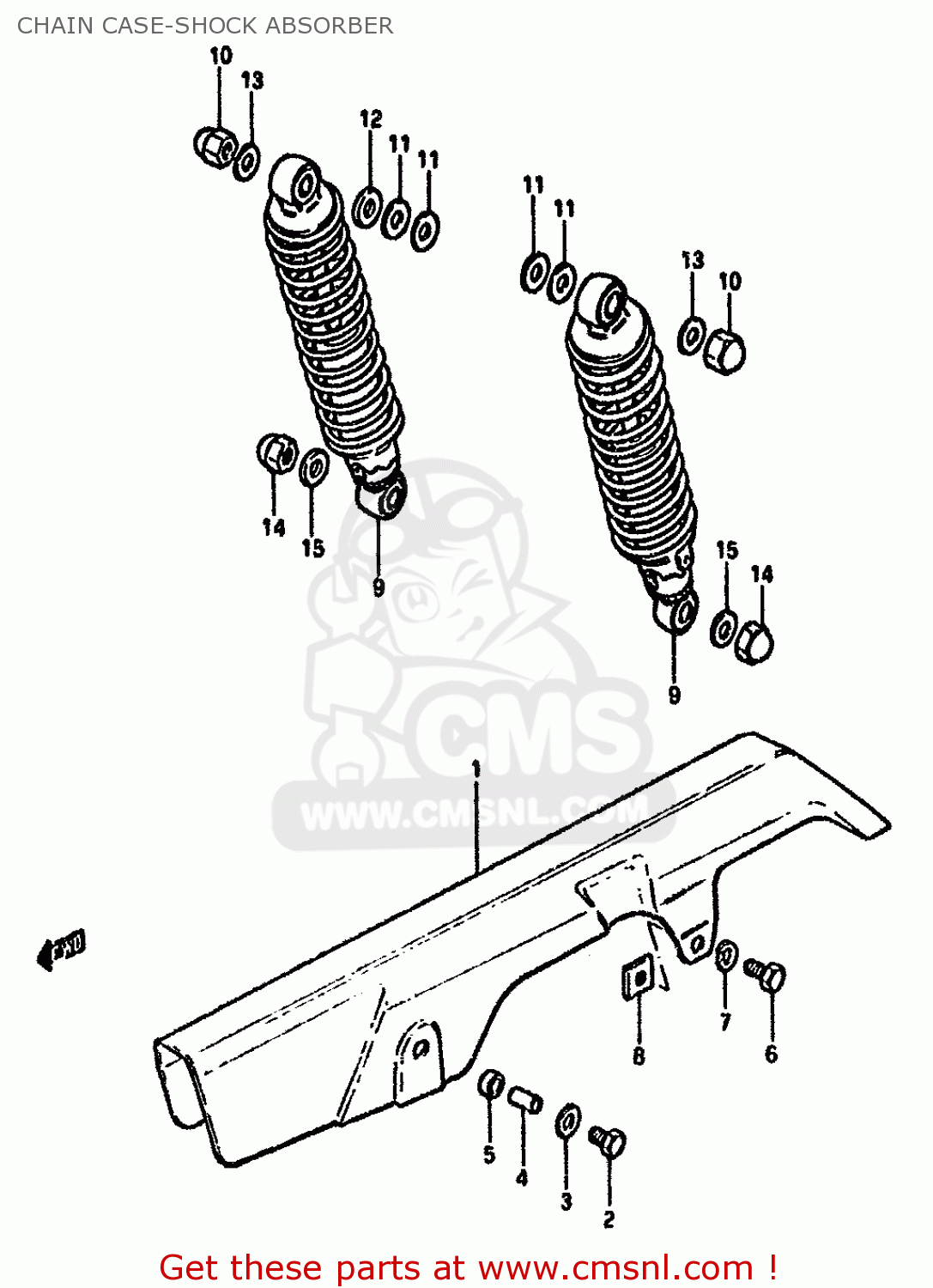

Chain case-shock absorber diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

CHAIN CASE-SHOCK ABSORBER GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
CHAIN CASE-SHOCK ABSORBER GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
CHAIN CASE-SHOCK ABSORBER GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
6131147700291
ref: 1
CASE,CHAIN
6131147700291
€ 49.50
2
0110706108
ref: 2
BOLT
€ 2.00
3
0916006056
ref: 3
WASHER(6.5X18X1)
0916006056
€ 2.00
4
0918006032
ref: 4
SPACER (6.1X8X5.2)
0918006032
€ 2.50
5
0932008005
ref: 5
CUSHION
€ 2.00
6
0110706168
ref: 6
BOLT, UPPER
€ 3.00
7
0832121068
ref: 7
LOCK WASHER
0832121068
€ 2.50
8
6131643000
ref: 8
NUT,CHAIN CASE RR
6131643000
€ 3.00
9-1
6210047700
ref: 9-1
MODEL X
SHOCK ABSORBER ASSY
€ 0.00
9-2
6210047710
ref: 9-2
MODEL Z
SHOCK ABSORBER ASSY
€ 0.00
10
0914510001
ref: 10
NUT
0914510001
€ 2.50
11
0832211128
ref: 11
WASHER
0832211128
€ 2.00
12
0916012012
ref: 12
12.5X24X3.2
WASHER (12.5X24X3.2)
0916012012
€ 2.50
13
0916010001
ref: 13
10.5X24X2.3
WASHER
0916010001
€ 2.00
14
0831311108
ref: 14
NUT, LOWER LH
0831311108
€ 2.50
15
0916010001
ref: 15
10.5X24.23
WASHER
0916010001
€ 2.00
