STARTER CLUTCH

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

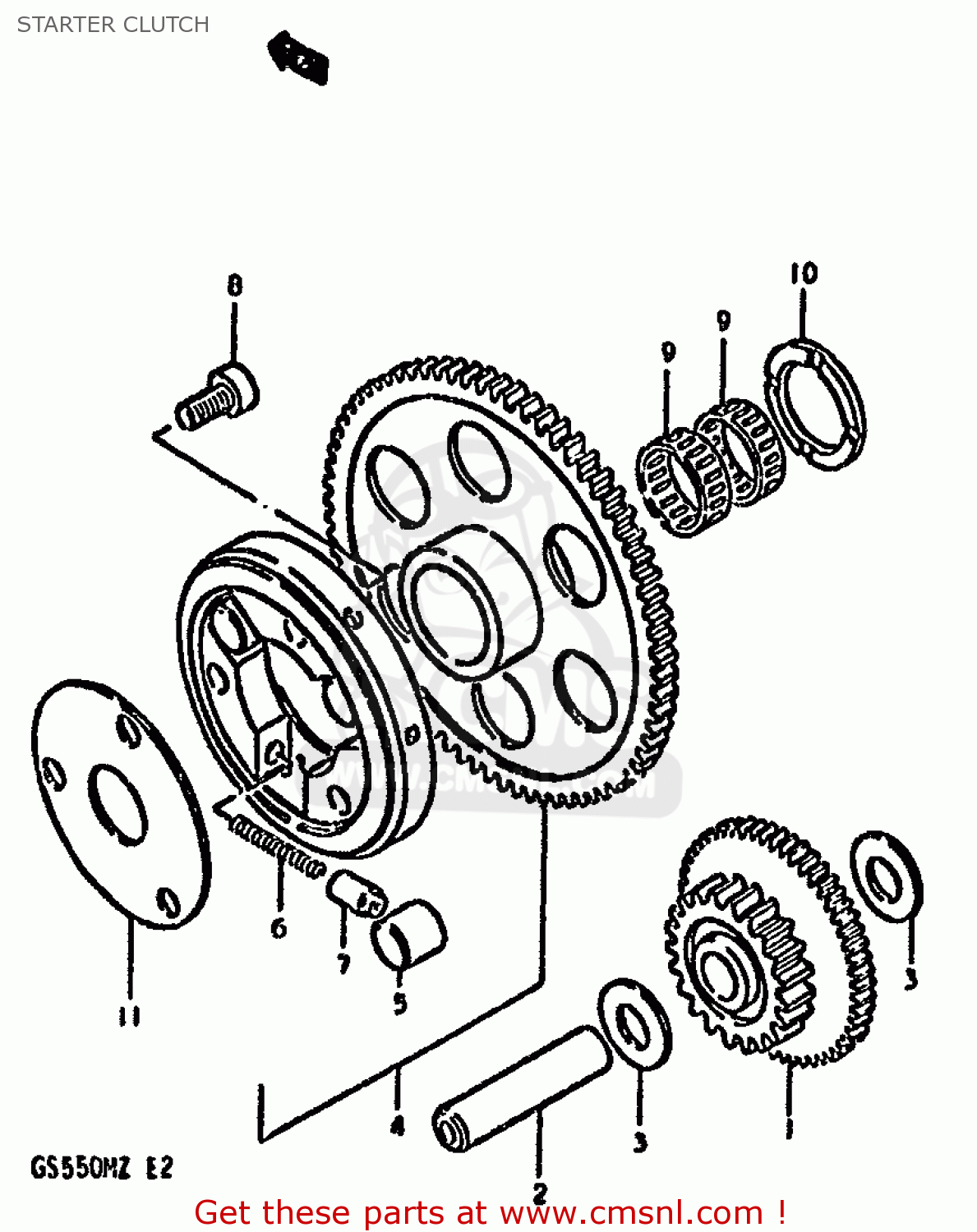

Starter clutch diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1261147000
ref: 1

GEAR,STARTER IDLE

€ 64.50

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

1260047812
ref: 4

CLUTCH SET,STARTER

€ 148.00

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

0944004015
ref: 6

SPRING

€ 2.50

1263331000
ref: 7

PIECE,PUSH

€ 9.00

0910608006
ref: 8

BOLT

€ 3.00

0926325030
ref: 9

ROLLER BEARING (25X30X9

€ 15.00

0916025019
ref: 10

WASHER(25X38X2.5)

€ 10.00

1264945000
ref: 11

SHIM,STARTER CLUTCH HUB

€ 7.00
