FRONT RIGHT DAMPER (MODEL Z)

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

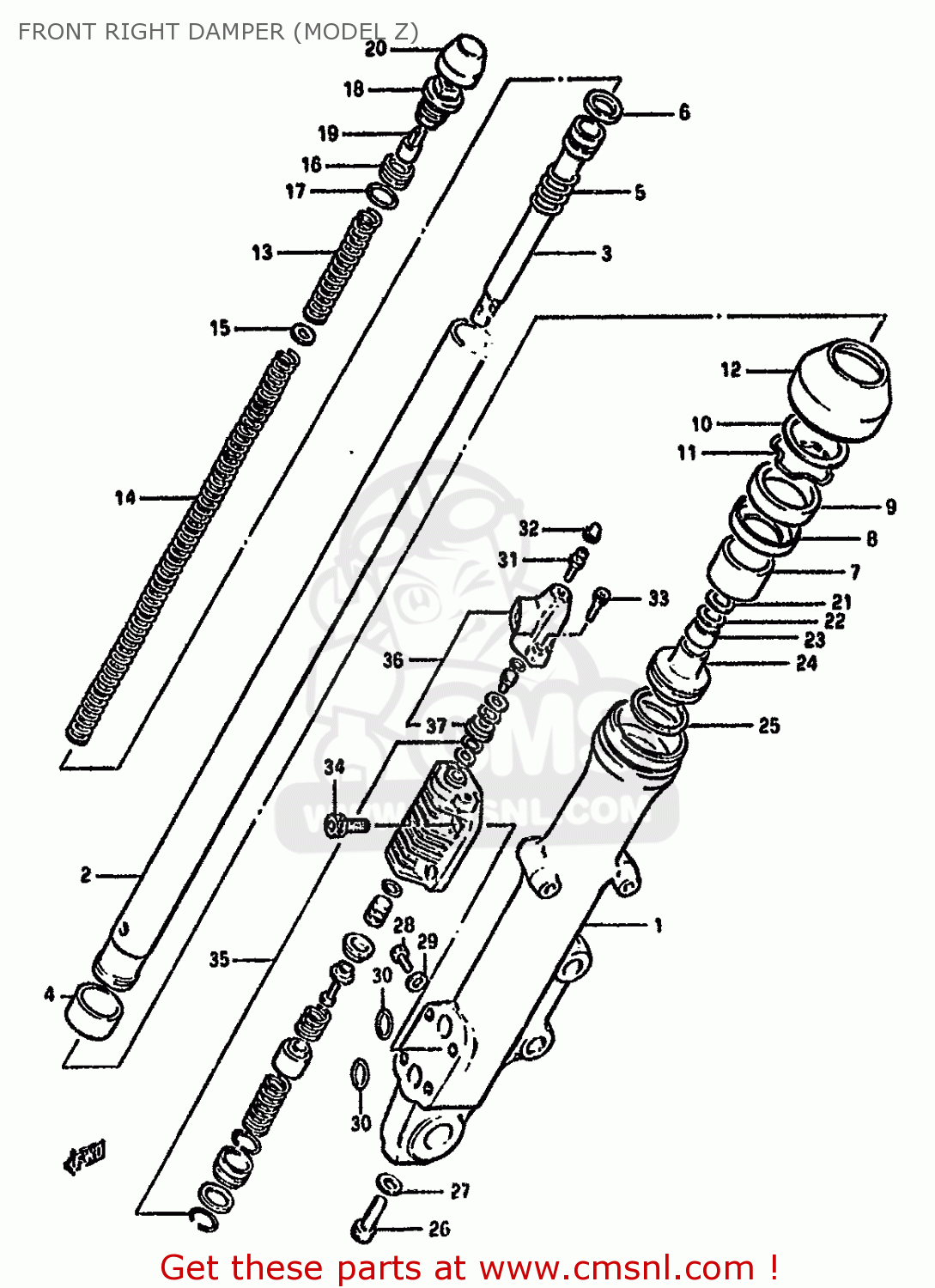

Front right damper (model z) diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

FRONT RIGHT DAMPER (MODEL Z) GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
FRONT RIGHT DAMPER (MODEL Z) GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
FRONT RIGHT DAMPER (MODEL Z) GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
0
5110347710
ref: 0
FRONT DAMPER,RH
€ 0.00
1
5113034310
ref: 1
OUTER TUBE RH
5113034310
€ 113.00
2
5111047710
ref: 2
INNER TUBE
5111047710
€ 203.00
3
5114634530
ref: 3
CYLINDER
€ 0.00
4
5112145400
ref: 4
PISTON
5112145400
€ 22.00
5
5117745030
ref: 5
SPRING,FORK REBOUND
5117745030
€ 4.00
6
5119631230
ref: 6
RING
5119631230
€ 7.50
7
5115245400
ref: 7
BUSH,GUIDE
5115245400
€ 14.00
8
5116845031
ref: 8
SPACER,SEAL
5116845031
€ 5.00
9
5115334200
ref: 9
OIL SEAL,FRONT FORK
5115334200
€ 14.00
10
5115845440
ref: 10
RING,FR FORK
5115845440
€ 3.00
11
5115645440
ref: 11
CIRCLIP,FORK OIL SEAL
€ 3.50
12
5157134200
ref: 12
BOOT
5157134200
€ 19.50
13
5117147700
ref: 13
SPRING (A)
€ 0.00
14
5118447710
ref: 14
SPRING (B)
5118447710
€ 12.00
15
5119247200
ref: 15
WASHER,SPRING
5119247200
€ 2.50
16
5117245450
ref: 16
SEAT, SPRING
€ 6.00
17
5111731030
ref: 17
O-RING
€ 3.50
18
5135145451
ref: 18
BOLT
€ 19.00
19
5118545451
ref: 19
ADJUSTER,SPRING
5118545451
€ 16.00
20
5118945450
ref: 20
CAP
5118945450
€ 7.00
21
5112634310
ref: 21
VALVE
5112634310
€ 2.50
22
5112734310
ref: 22
SPRING,VALVE
5112734310
€ 3.00
23
5112534310
ref: 23
VALVE,OIL LOCK PIEACE
€ 7.00
24
5119534310
ref: 24
PIECE,FRONT FORK OIL LOCK
€ 21.00
25
5112334310
ref: 25
PISTON RING,FRONT FORK
5112334310
€ 10.50
26
5114748130
ref: 26
BOLT(8X27)
5114748130
€ 3.50
27
5114831030
ref: 27
GASKET (NAS)
5114831030
€ 4.00
28
0110706088
ref: 28
BOLT
€ 2.50
29
5118331030
ref: 29
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
30
5179911420
ref: 30
O RING,FR FORK
€ 2.00
31
5177811420
ref: 31
BREATHER
5177811420
€ 8.50
32
5177911420
ref: 32
CAP
5177911420
€ 4.50
33
5179711420
ref: 33
BOLT
€ 2.50
34
5179611420
ref: 34
BOLT
€ 3.00
35
5170011850
ref: 35
MODULATOR VALVE SET,FRONT
5170011850
€ 92.50
36
5170011840
ref: 36
MODULATOR VALVE SET,FRONT
5170011840
€ 72.00
37
5177711420
ref: 37
SEPARATOR,FRONT FORK MODULATOR
5177711420
€ 5.00
