CARBURETOR (MODEL Z)

GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

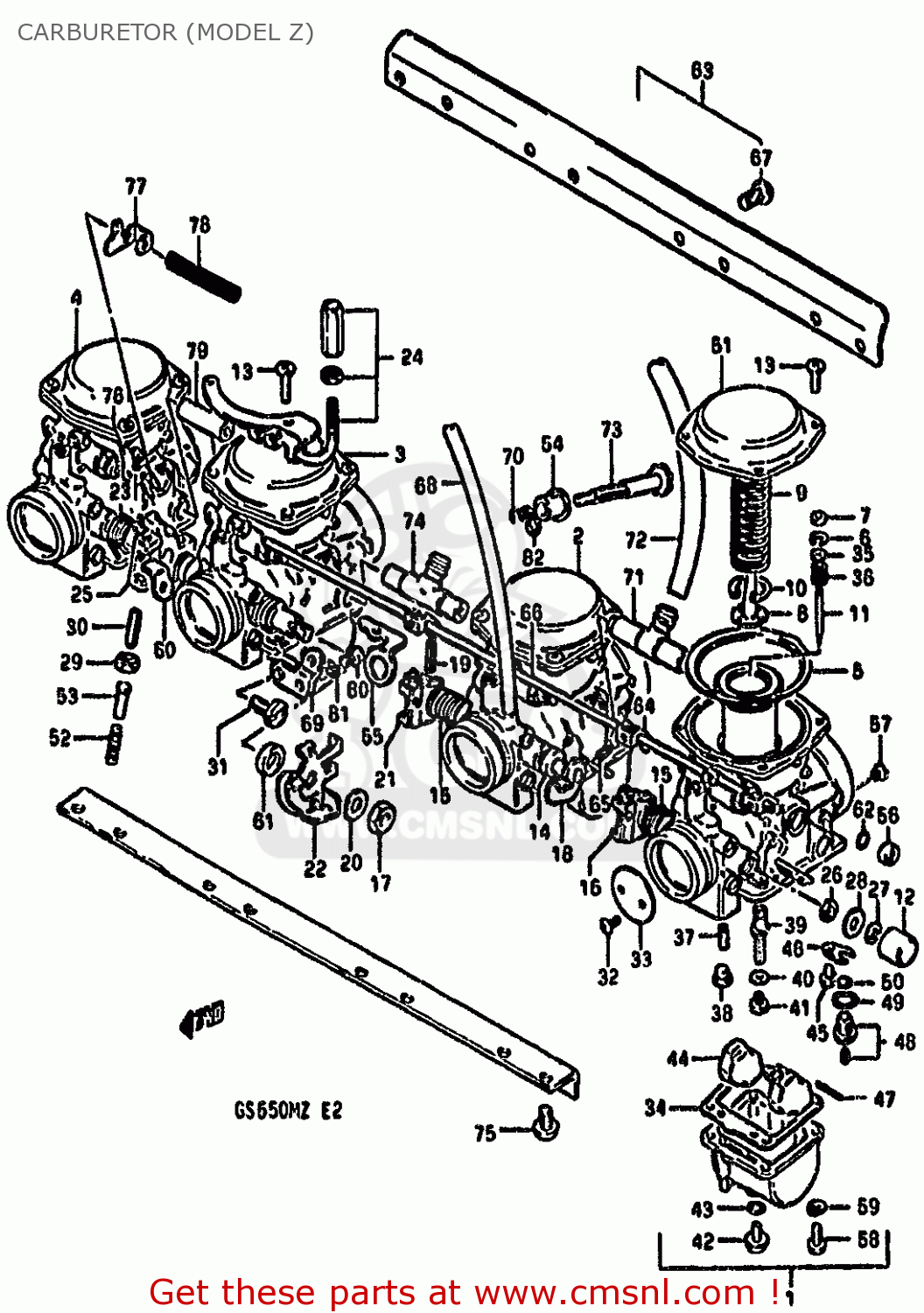

Carburetor (model z) diagram GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)

CARBURETOR (MODEL Z) GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
CARBURETOR (MODEL Z) GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
CARBURETOR (MODEL Z) GS550M 1982 (Z) (E02 E04 E06 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1320147170
ref: 1
CARBURETOR,LH
€ 0.00
2
1320247170
ref: 2
CARBURETOR,ML
€ 0.00
3
1320347170
ref: 3
CARBURETOR,MR
€ 0.00
4
1320447170
ref: 4
CARBURETOR,RH
€ 0.00
5
1350047070
ref: 5
DIAPHRAGM ASSEMBLY
€ 170.50
6
1339431210
ref: 6
CLIP,NEEDLE
1339431210
€ 3.50
7
1338744030
ref: 7
RING
1338744030
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1350347070
ref: 9
SPRING
1350347070
€ 9.50
10
1358144030
ref: 10
E RING
1358144030
€ 6.50
11
1338347090
ref: 11
NEEDLE, JET (5F42-3)
1338347090
€ 13.50
12
1357847070
ref: 12
LH,RH
CAP
1357847070
€ 5.50
13
0211205168
ref: 13
SCREW
0211205168
€ 2.50
14
1355747070
ref: 14
ML,MR
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
15
1357347070
ref: 15
LH,ML
SPRING,THROTTLE SHAFT
1357347070
€ 6.00
16
1355047070
ref: 16
LH
SHAFT,THROTTLE
1355047070
€ 44.50
17
0831022088
ref: 17
MR
NUT 8MM
0831022088
€ 2.00
18
1355047080
ref: 18
ML
SHAFT,THROTTLE
1355047080
€ 42.50
19
1356347070
ref: 19
LH,ML,RH
PIN,THROTTLE SHAFT
€ 0.00
20
1360647070
ref: 20
MR
WASHER
1360647070
€ 3.00
21
1355347070
ref: 21
ML
LEVER,THROTTLE SHAFT
€ 0.00
22
1355547070
ref: 22
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
23
1357347080
ref: 23
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
24
1362147180
ref: 24
MR
BRACKET,THROTTLE CABLE
€ 10.00
25
1355047090
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
SEAL
€ 4.00
27
1361744080
ref: 27
LH,RH
E RING
1361744080
€ 3.50
28
1355747070
ref: 28
LH,RH
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
29
1360747070
ref: 29
LH,ML,RH
NUT
1360747070
€ 4.00
30
1360547080
ref: 30
LH,ML,RH
SCREW
1360547080
€ 7.00
31
1360545410
ref: 31
MR
SCREW
€ 8.00
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33
1355147090
ref: 33
VALVE,THROTTLE (BUTTERFLY)
€ 17.00
34
1325144080
ref: 34
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
35
1338244030
ref: 35
WASHER
1338244030
€ 3.50
36
1338844030
ref: 36
SPRING
1338844030
€ 6.00
37
0949240008
ref: 37
JET
€ 17.50
38
1335744080
ref: 38
PLUG,NEEDLE JET
1335744080
€ 4.50
39
0949400269
ref: 39
JET, NEEDLE (X-6)
€ 18.50
40
1333244080
ref: 40
WASHER,NEEDLE NOZZLE
€ 2.50
41
0949192001
ref: 41
JET
€ 8.50
42
1324744080
ref: 42
PLUG,DRAIN
1324744080
€ 9.50
43
1324644080
ref: 43
GASKET (NAS)
1324644080
€ 3.50
44
1325044080
ref: 44
FLOAT
1325044080
€ 31.00
45
0211204068
ref: 45
SCREW 4X6
0211204068
€ 2.00
46
1337311400
ref: 46
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
47
1325492311
ref: 47
PIN,FLOAT
1325492311
€ 2.00
48
1337011400
ref: 48
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
1337444080
€ 6.00
50
1337665010
ref: 50
FILTER
€ 6.50
51
1350247070
ref: 51
COVER,DIAPHRAGM
€ 0.00
52
1326844010
ref: 52
LH,ML,RH
SPRING,THROTTLE SCREW
1326844010
€ 3.00
53
1357547070
ref: 53
LH,ML,RH
PIN,THROTTLE LEVER
1357547070
€ 2.50
54
1327631210
ref: 54
MR
BUSH
1327631210
€ 4.00
55
1362744090
ref: 55
MR
BRACKET,THROTTLE ADJUST
€ 0.00
56
1368231210
ref: 56
CAP,STARTER VALVE
1368231210
€ 5.00
57
0949324005
ref: 57
JET,AIR
0949324005
€ 13.00
58
0211205168
ref: 58
SCREW
0211205168
€ 2.50
59
0832121058
ref: 59
LOCK WASHER
0832121058
€ 2.00
60
1355047100
ref: 60
MR
SHAFT,THROTTLE
€ 0.00
61
1358947070
ref: 61
MR
WASHER
1358947070
€ 3.00
62
1327847090
ref: 62
O RING
1327847090
€ 2.00
63
1321047180
ref: 63
CARBURETOR ASSEMBLY
€ 0.00
64
1342244080
ref: 64
LEVER
1342244080
€ 10.00
65
1360547070
ref: 65
SCREW
1360547070
€ 5.50
66
1341047070
ref: 66
SHAFT,STARTER
1341047070
€ 29.00
67
0215205128
ref: 67
SCREW
€ 1.50
68
1368331610
ref: 68
HOSE
€ 14.00
69
1362747070
ref: 69
BRACKET,THROTTLE ADJUST
1362747070
€ 4.00
70
1327193011
ref: 70
SPRING
1327193011
€ 4.50
71
1368547070
ref: 71
NIPPLE
1368547070
€ 25.00
72
1368347070
ref: 72
HOSE
1368347070
€ 18.00
73
1326747070
ref: 73
SCREW
1326747070
€ 21.00
74
1368547080
ref: 74
NIPPLE,CARBURETOR
1368547080
€ 25.50
75
0211206128
ref: 75
SCREW 6X12
0211206128
€ 2.00
76
1341349220
ref: 76
LEVER,CHOKE CABLE
€ 4.00
77
1342149220
ref: 77
PLATE,CHOKE CABLE
1342149220
€ 3.00
78
1343749220
ref: 78
SPRING,CHOKE CABLE
€ 0.00
79
1368547090
ref: 79
NIPPLE
1368547090
€ 16.50
80
0211205108
ref: 80
SCREW
0211205108
€ 2.00
81
0832121058
ref: 81
LOCK WASHER
0832121058
€ 2.00
82
1343247090
ref: 82
WASHER
1343247090
€ 2.50
