FRAME COVER

GS650G 1983 (D) USA (E03)

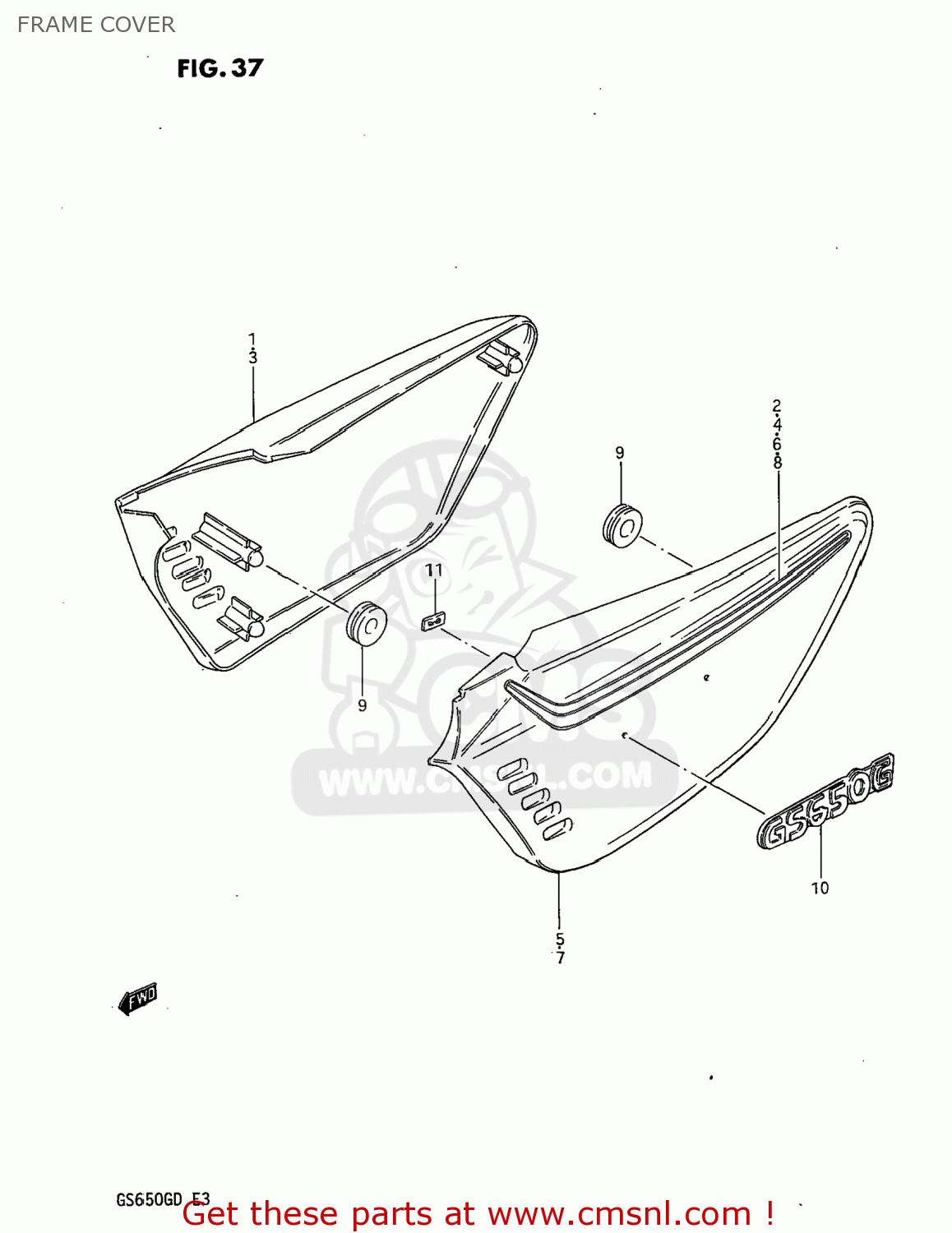

Frame cover diagram GS650G 1983 (D) USA (E03)

FRAME COVER GS650G 1983 (D) USA (E03)

FRAME COVER GS650G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711034220019
ref: 1
47111-34201

COVER,FRAME,RIGHT

€ 57.50

2

681303422076D
ref: 2

TAPE SET,FRAME COVER

€ 0.00

3

471103422005L
ref: 3
47111-34201

COVER,FRAME,RIGHT

€ 57.50

4

681303422073D
ref: 4

TAPE SET,FRAME COVER

€ 0.00

5

4721034220019
ref: 5
47211-34211

COVER,FRAME,LEFT

€ 57.50

6

681403422076D
ref: 6

TAPE SET,FRAME COVER,LEFT

€ 0.00

7

472103422005L
ref: 7
47211-34211

COVER,FRAME,LEFT

€ 57.50

8

681403422073D
ref: 8

TAPE SET,FRAME COVER

€ 0.00

9

0932008018
ref: 9

CUSHION

€ 4.00

10

6813134230
ref: 10

EMBLEM,FRAME COVER

€ 20.00

11

0914803002
ref: 11

NUT

€ 3.00
