FUEL TANK
GS650G 1983 (D) USA (E03)

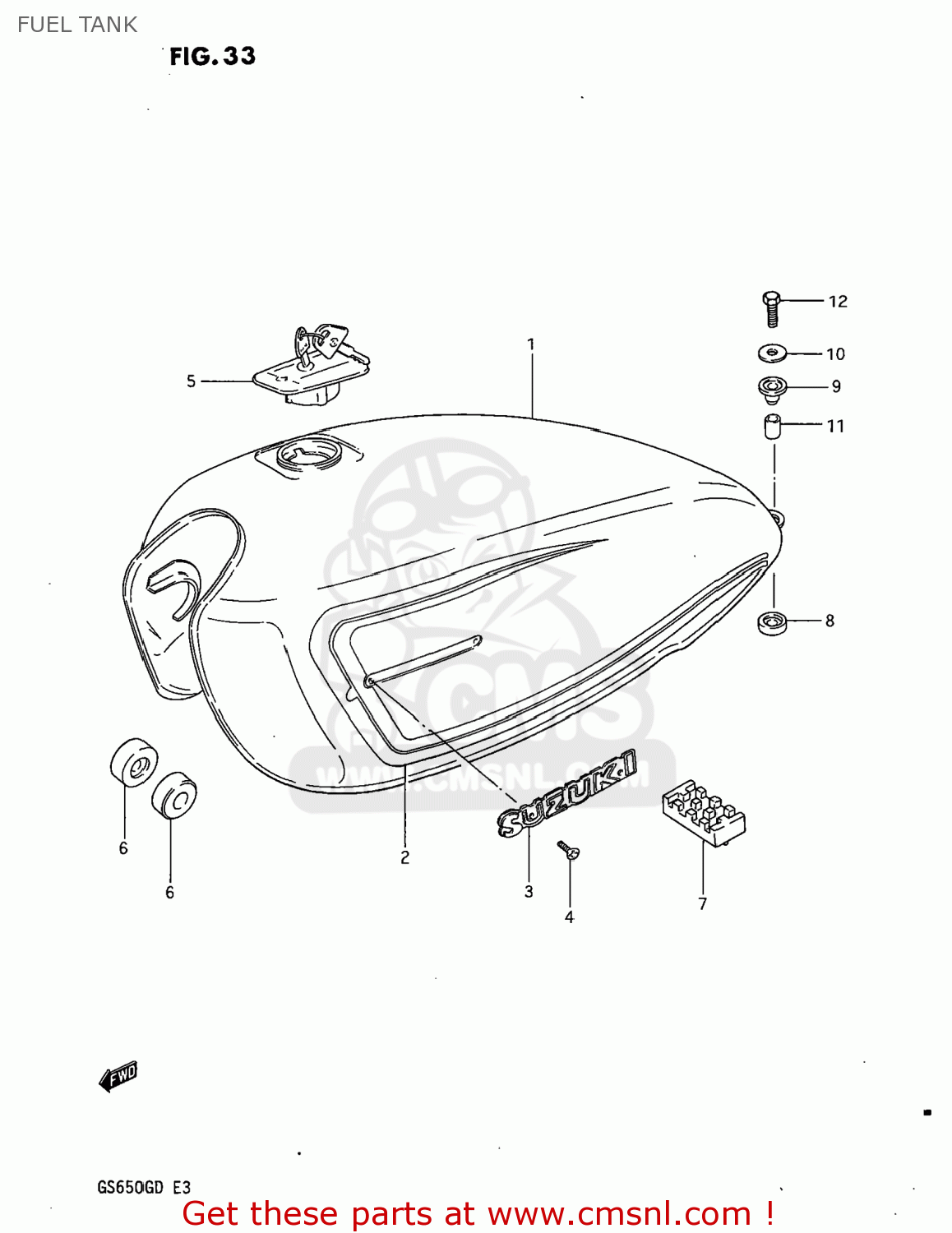

Fuel tank diagram GS650G 1983 (D) USA (E03)
FUEL TANK GS650G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410034220019
ref: 1-1
44110-34212-13L
TANK ASSEMBLY,FUEL
€ 201.50
1-2
441003422005L
ref: 1-2
44110-34212-13L
TANK ASSEMBLY,FUEL
€ 201.50
2
681103422081P
ref: 2
TAPE SET,FUEL TANK
€ 0.00
3
6811144600
ref: 3
EMBLEM
€ 0.00
4
0213203065
ref: 4
02122-0306B
SCREW 3X6
€ 2.00
5
4420049016KEY
ref: 5
44200-49810
CAP SET,FUEL TANK
€ 121.00
6
0932910007
ref: 6
CUSHION
€ 3.00
7
4454134500
ref: 7
CUSHION,FUEL TANK CTR
€ 13.00
8
0932014013
ref: 8
CUSHION
€ 3.00
9
0932010020
ref: 9
CUSHION
€ 4.00
10
0916006004
ref: 10
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
11
0918006072
ref: 11
09180-06271
SPACER
€ 2.00
12
0110706308
ref: 12
01500-06307
BOLT
€ 2.50
