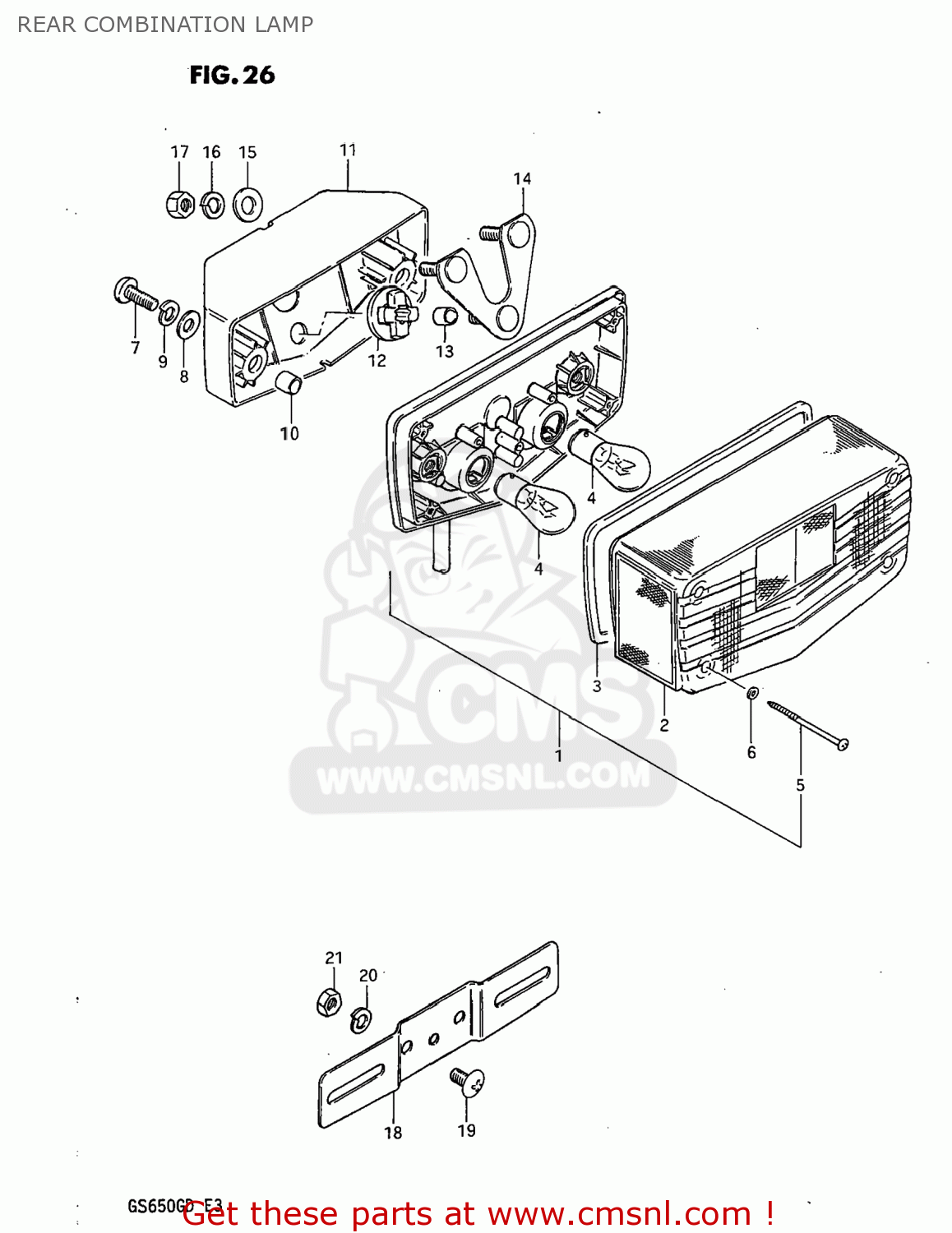

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3572011430
ref: 1

LAMP UNIT,REAR COMBINATION

€ 160.50

2

3571244130
ref: 2

LENS,REAR COMBINATION LAMP

€ 51.00

3

3571344130
ref: 3

GASKET,REAR COMBINATION LAMP LENS (NAS)

€ 6.50

4

0947112035
ref: 4

BULB(12V23W)

€ 5.50

5

3572344130
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0211206208
ref: 7
02112-06207

SCREW

€ 2.00

8

0832221068
ref: 8
08322-01067

WASHER

€ 2.00

9

0832121068
ref: 9
08321-01067

LOCK WASHER

€ 2.50

10

3576644130
ref: 10

SPACER,REAR COMBINATION LAMP

€ 0.00

11

3573044130
ref: 11

BRACKET UNIT,TAIL LAMP

€ 37.00

12

3576544130
ref: 12

CUSHION,REAR COMBINATION LAMP

€ 6.50

13

3576744130
ref: 13

SPACER,REAR COMBINATION LAMP

€ 2.00

14

3572744130
ref: 14

PLATE,REAR COMBINATION LAMP

€ 6.00

15

0916006060
ref: 15
09160-06077

WASHER

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17

0831011068
ref: 17
08310-00067

NUT

€ 2.50

18

3592744130
ref: 18

PLATE,REAR LICENSE

€ 7.00

19

0214206167
ref: 19

SCREW

€ 2.00

20

0832121068
ref: 20
08321-01067

LOCK WASHER

€ 2.50

21

0831011068
ref: 21
08310-00067

NUT

€ 2.50
