SECONDARY DRIVE GEAR

GS650G 1983 (D) USA (E03)

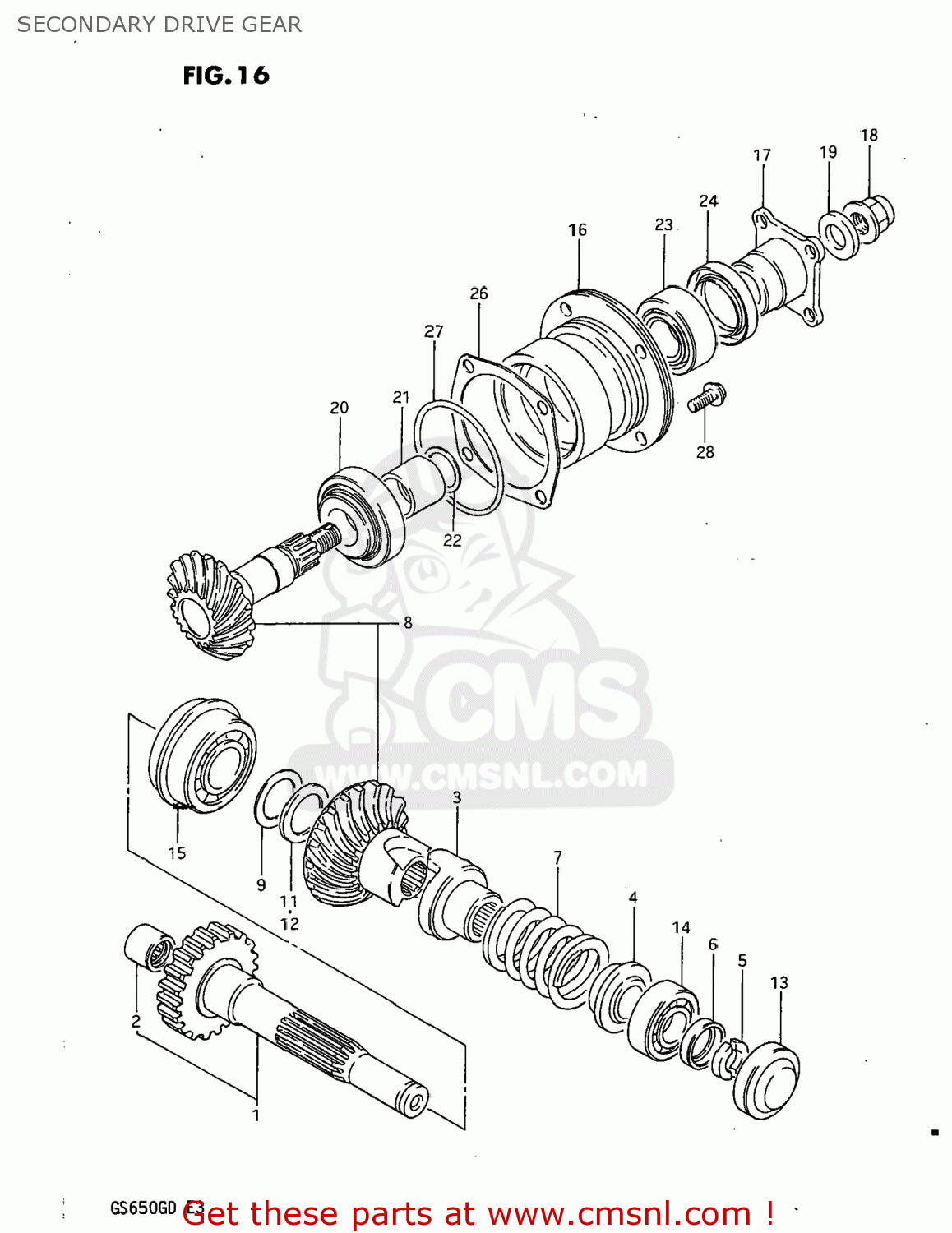

Secondary drive gear diagram GS650G 1983 (D) USA (E03)

SECONDARY DRIVE GEAR GS650G 1983 (D) USA (E03)

SECONDARY DRIVE GEAR GS650G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2414034200
ref: 1

SHAFT,OUTPUT

€ 112.00

2

0926315018
ref: 2

BEARING(15X23X20)

€ 43.00

3

2251134200
ref: 3

DOG

€ 0.00

4

2253134200
ref: 4

STOPPER

€ 0.00

5

2254134200
ref: 5

STOPPER,CAM DOG

€ 4.50

6

2255134200
ref: 6

HOLDER,CAM DOG STOPPER

€ 0.00

7

0944047003
ref: 7

SPRING

€ 0.00

8

2490034812
ref: 8
24910-34202

SECONDARY GEAR SET

€ 164.50

9

2493434200
ref: 9

SHIM,SECONDARY DRIVE

€ 0.00

10

2490034830
ref: 10

SHIM SET,SECONDARY DRIVE BEVEL

€ 79.50

11-1

2493534200
ref: 11-1

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

11-2

2493534210
ref: 11-2

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

11-3

2493534220
ref: 11-3

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

11-4

2493534230
ref: 11-4

SHIM,SECONDARY DRIVE BEVEL

€ 11.00

11-5

2493534240
ref: 11-5

SHIM,SECONDARY DRIVE BEVEL

€ 11.00

11-6

2493534250
ref: 11-6

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

11-7

2493534260
ref: 11-7

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

11-8

2493534270
ref: 11-8

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

11-9

2493534280
ref: 11-9

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

12-1

2493534290
ref: 12-1

SHIM,SECONDARY DRIVE BEVEL

€ 11.00

12-2

2493534300
ref: 12-2

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

12-3

2493534310
ref: 12-3

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

12-4

2493534320
ref: 12-4

SHIM,SECONDARY DRIVE BEVEL

€ 11.00

12-5

2493534330
ref: 12-5

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

12-6

2493534340
ref: 12-6

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

12-7

2493534350
ref: 12-7

SHIM,SECONDARY DRIVE BEVEL

€ 12.00

13

0924147005
ref: 13

PLUG

€ 7.50

14

0926220043
ref: 14

BEARING(20X47X14)

€ 27.00

15

0926730002
ref: 15

BALL BEARING 30X62X24

€ 113.50

16

2494145101
ref: 16

HOUSING,SECONDARY DRIVE

€ 76.50

17

2495149100
ref: 17

FLANGE,UNIVERSAL JOINT

€ 68.00

18

0915914010
ref: 18

NUT

€ 11.00

19

0916014021
ref: 19

WASHER(14X29X4)

€ 5.00

20

0926525012
ref: 20

TAPER,ROLLER BEARING

€ 52.50

21

0918025056
ref: 21

SPACER (25.2X30X40)

€ 7.00

22-1

0918125006
ref: 22-1

SHIM (25X30X1.6)

€ 3.00

22-2

0918125007
ref: 22-2

SHIM (25X30X1.62)

€ 3.00

22-3

0918125008
ref: 22-3

SHIM (25X30X1.64)

€ 3.00

22-4

0918125009
ref: 22-4

SHIM (25X30X1.66)

€ 3.00

22-5

0918125010
ref: 22-5

SHIM (25X30X1.68)

€ 3.00

22-6

0918125011
ref: 22-6

SHIM (25X30X1.7)

€ 3.00

22-7

0918125012
ref: 22-7

SHIM (25X30X1.8)

€ 3.00

22-8

0918125013
ref: 22-8

SHIM (25X30X1.9)

€ 3.00

22-9

0918125014
ref: 22-9

SHIM (25X30X2

€ 3.00

23

0926525011
ref: 23
09265-25024

BEARING

€ 44.00

24

0928335018
ref: 24

SEAL,OIL(35X52X9)

€ 13.00

25

2490045840
ref: 25

SHIM SET,SECONDARY DRIVE

€ 20.50

26-1

2494545100
ref: 26-1

SHIM,DRIVEN GEAR HOUSING

€ 4.00

26-2

2494545102
ref: 26-2

SHIM,DRIVEN GEAR HOUSING

€ 4.50

26-3

2494545103
ref: 26-3

SHIM,DRIVEN GEAR HOUSING

€ 4.50

26-4

2494545104
ref: 26-4

SHIM,DRIVEN GEAR HOUSING

€ 4.00

27

0928070005
ref: 27

O RING(D:3.1,ID:69.4)

€ 6.50

28

0151708258
ref: 28
01550-08257

BOLT

€ 2.50
