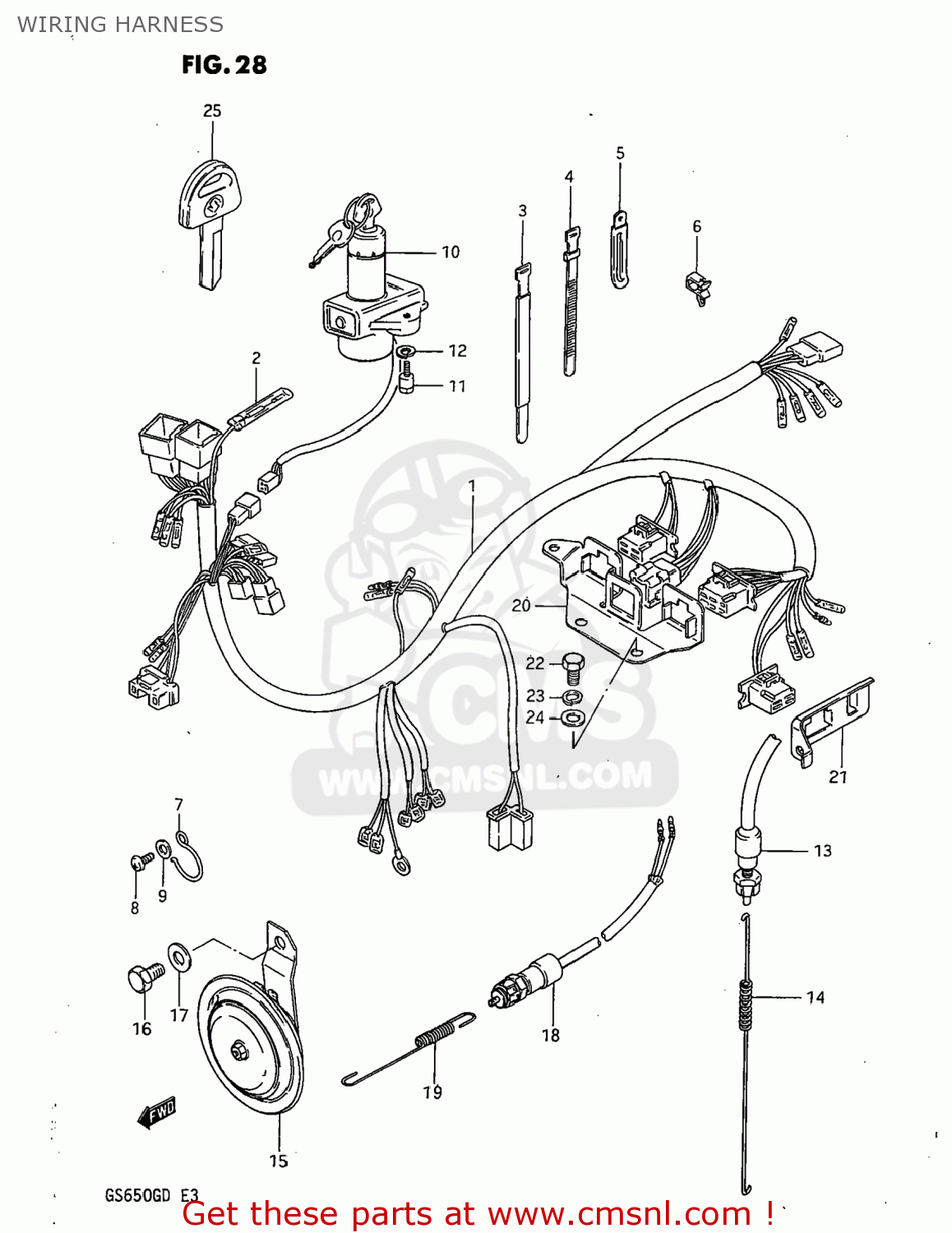

WIRING HARNESS

ref

part #

description

quantity

1

3661034240
ref: 1

HARNESS,WIRING

€ 0.00

2

3661102100
ref: 2

DIODE

€ 6.00

3

0940718301
ref: 3

CLAMP

€ 6.00

4

0940714401
ref: 4

CLAMP

€ 3.00

5

0940406414
ref: 5
09404-06433

CLAMP

€ 3.00

6

0940305305
ref: 6

CLIP

€ 3.00

7

3661944000
ref: 7
36619-44002

GUIDE,WIRING HARNESS

€ 2.50

8

0211206128
ref: 8
02112-06127

SCREW 6X12

€ 2.00

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

3710047011
ref: 10
37100-45301

LOCK ASSEMBLY,STEERING

€ 127.50

11

3715247010
ref: 11
07130-0616B

BOLT

€ 3.00

12

0832121068
ref: 12
08321-01067

LOCK WASHER

€ 2.50

13

3774004571
ref: 13
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

14

0944306018
ref: 14
09443-06018-XC0

SPRING

€ 4.50

15

3850034230
ref: 15

HORN ASSEMBLY

€ 41.00

16

0110708128
ref: 16
01500-08127

BOLT 8X12

€ 2.50

17

0832211088
ref: 17
08322-01087

WASHER

€ 2.00

18

3784034500
ref: 18

SWITCH ASSEMBLY,SIDE STAND

€ 14.00

19

0944306021
ref: 19
09443-06045-XC0

SPRING

€ 5.50

20

4745034200
ref: 20

PLATE, COUPLER HOLDER (A)

€ 32.00

21

4745234200
ref: 21

PLATE, COUPLER HOLDER (B)

€ 8.50

22

0110706128
ref: 22
01500-06127

BOLT

€ 2.00

23

0832121068
ref: 23
08321-01067

LOCK WASHER

€ 2.50

24

0832221068
ref: 24
08322-01067

WASHER

€ 2.00

25

3714647010
ref: 25

KEY,BLANK

€ 15.00
