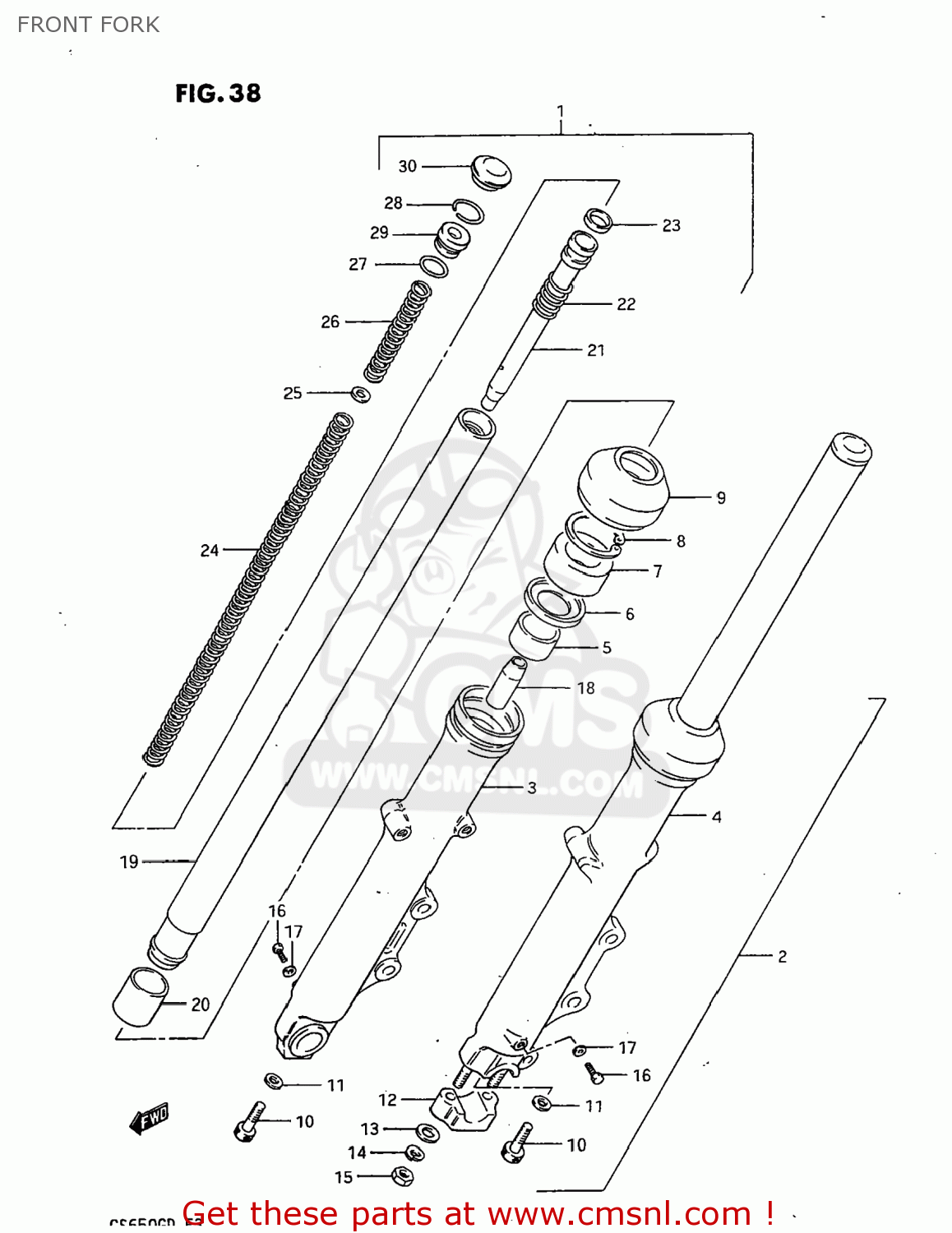

FRONT FORK

ref

part #

description

quantity

1

5110334280
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 308.50

2

5110434280
ref: 2

DAMPER ASSEMBLY,LEFT

€ 237.00

3

5113034200
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 115.50

4

5114034200
ref: 4

TUBE,FORK,LEFT,OUTER

€ 157.00

5

5115245400
ref: 5

BUSH,GUIDE

€ 14.00

6

5116845031
ref: 6
51168-30B00

SPACER,SEAL

€ 5.00

7

5115333300
ref: 7
51153-19D10

OIL SEAL,FRONT FORK

€ 14.00

8

5115645440
ref: 8
51156-01A00

CIRCLIP,FORK OIL SEAL

€ 3.50

9

5157134200
ref: 9
51571-20520

BOOT

€ 19.50

10

5114748130
ref: 10

BOLT(8X27)

€ 3.50

11

5114831030
ref: 11
51148-36011

GASKET (NAS)

€ 4.00

12

5113231030
ref: 12

HOLDER,AXLE

€ 31.50

13

0832221088
ref: 13
08322-01087

WASHER

€ 2.00

14

0832121088
ref: 14
08321-01087

LOCK WASHER

€ 2.00

15

0831011088
ref: 15
08310-00087

NUT

€ 2.00

16

0110706088
ref: 16
09100-06157

BOLT

€ 2.50

17

5118331030
ref: 17

GASKET,DRAIN,PLUG (NAS)

€ 4.00

18

5119545030
ref: 18

PIECE,OIL LOCK

€ 16.00

19

5111034280
ref: 19

TUBE,FORK,INNER

€ 57.00

20

5112145400
ref: 20

PISTON

€ 22.00

21

5114634200
ref: 21
51146-47600

CYLINDER,FRONT FORK

€ 14.50

22

5117745030
ref: 22

SPRING,FORK REBOUND

€ 4.00

23

5119631230
ref: 23

RING

€ 7.50

24

5118434280
ref: 24

SPRING,FRONT FORK,LOWER

€ 18.50

25

5119247200
ref: 25

WASHER,SPRING

€ 2.50

26

5117134200
ref: 26

SPRING,FRONT

€ 6.00

27

5111731030
ref: 27
51181-31030

O-RING

€ 3.50

28

5116947400
ref: 28

RING,STOPPER

€ 2.50

29

5117547400
ref: 29

SPRING SEAT B

€ 5.50

30

5118931230
ref: 30

CAP

€ 6.50

all assemblies
