SEAT TAIL COVER

GS650G 1983 (D) USA (E03)

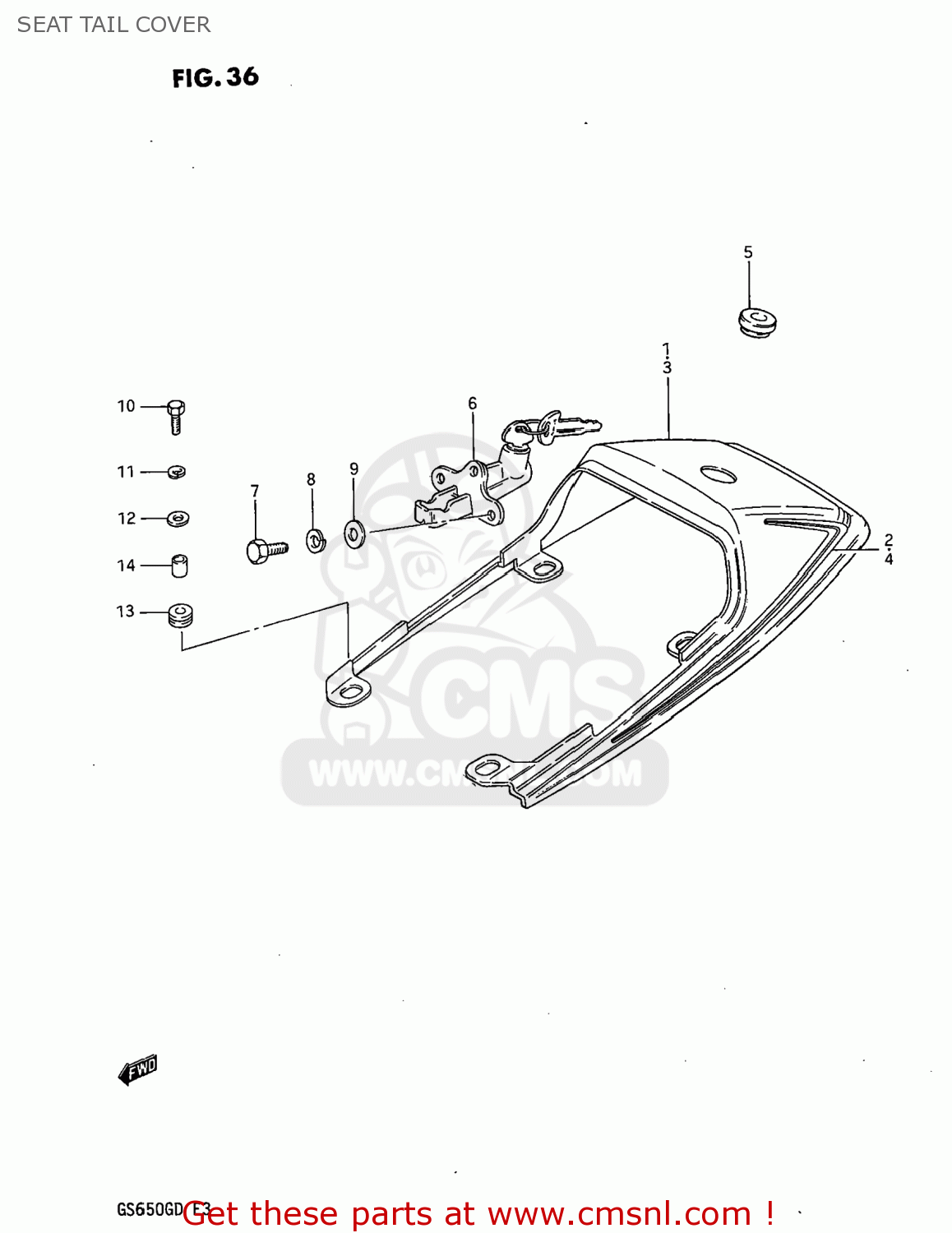

Seat tail cover diagram GS650G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

4550034220019
ref: 1

BOX ASSEMBLY,SEAT TAIL

€ 0.00

681603422076D
ref: 2

TAPE SET,BOX SEAT TAIL

€ 0.00

455003422005L
ref: 3

BOX ASSEMBLY,SEAT TAIL

€ 0.00

681603422073D
ref: 4

TAPE SET,BOX SEAT TAIL

€ 0.00

4552249200
ref: 5

GROMMET,SEAT LOCK HOLE

€ 5.50

9570049830
ref: 6

LOCK SET,SEAT

€ 81.50

0110706128
ref: 7
01500-06127

BOLT

€ 2.00

0832121068
ref: 8
08321-01067

LOCK WASHER

€ 2.50

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

0110706208
ref: 10
01500-06207

BOLT

€ 2.00

0832121068
ref: 11
08321-01067

LOCK WASHER

€ 2.50

0916006012
ref: 12
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

0932010011
ref: 13
09320-10502

CUSHION

€ 5.50

0918007004
ref: 14

SPACER(6.5X10.5X12)

€ 2.50
