RIGHT HANDLE SWITCH
GS650G 1983 (D) USA (E03)

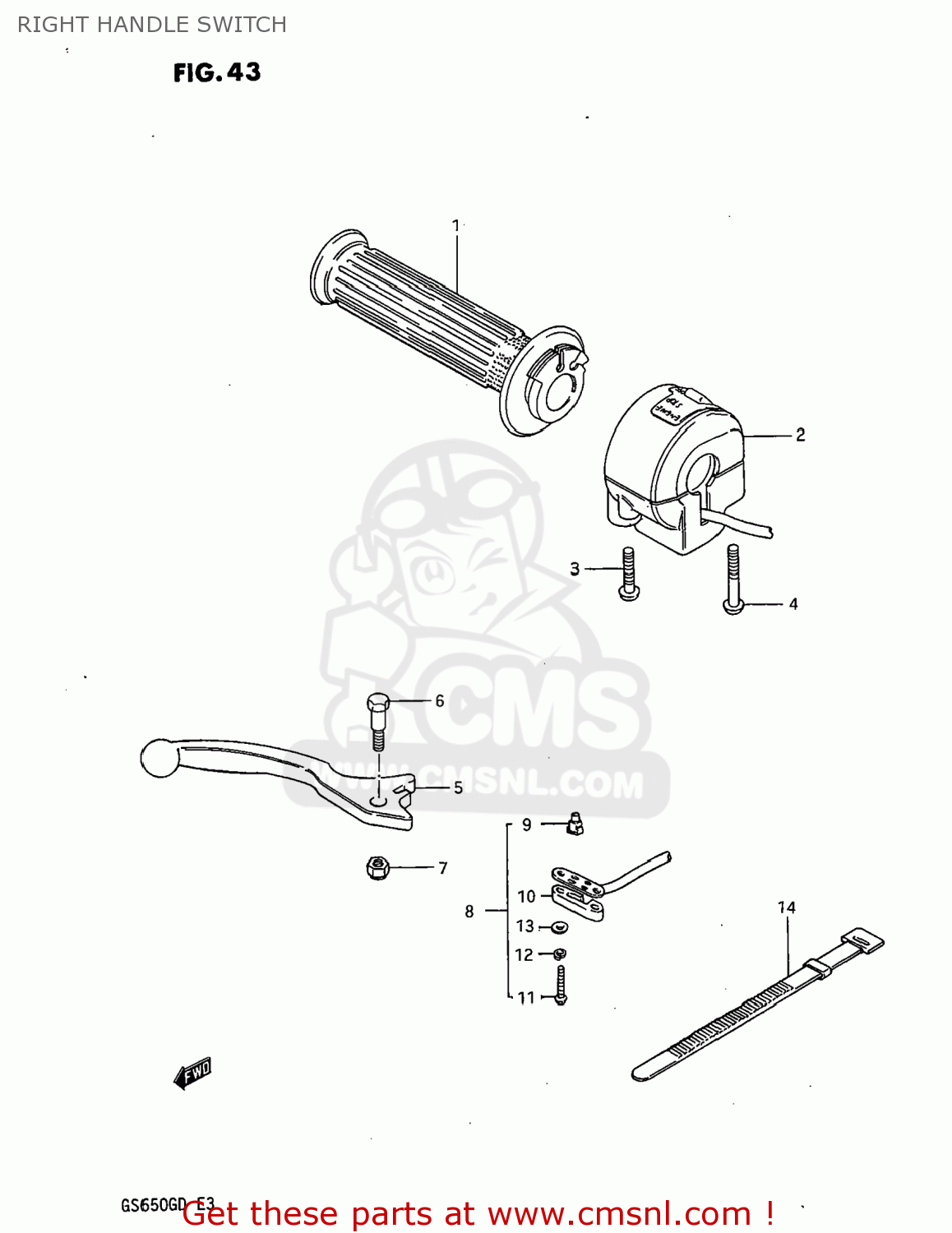

Right handle switch diagram GS650G 1983 (D) USA (E03)
RIGHT HANDLE SWITCH GS650G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711044011
ref: 1
57110-49510
GRIP,THROTTLE
€ 33.00
2-1
3720034530
ref: 2-1
37200-345V0
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 46.50
2-2
3720034510
ref: 2-2
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 86.50
3
0211205258
ref: 3
02112-05257
SCREW
€ 2.00
4
0211205358
ref: 4
02112-05357
SCREW
€ 1.50
5
5742049101
ref: 5
LEVER,BRAKE
€ 36.50
6
5743118621
ref: 6
BOLT
€ 8.00
7
0831921068
ref: 7
08319-2106A
NUT 6MM
€ 2.00
8
5746049300
ref: 8
57460-45500
SWITCH ASSEMBLY
€ 40.00
9
5746518601
ref: 9
CONTACT,SWITCH
€ 4.50
10
5748133010
ref: 10
COVER,FR BK TERMINAL BASE
€ 19.50
11
0912503105
ref: 11
09125-03105-XC0
SCREW
€ 2.50
12
0832121038
ref: 12
09162-03001
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
08322-01037
WASHER
€ 2.00
14
0940712402
ref: 14
CLAMP(L:120)
€ 3.00
