CYLINDER
GS650GL 1982 (Z) USA (E03)

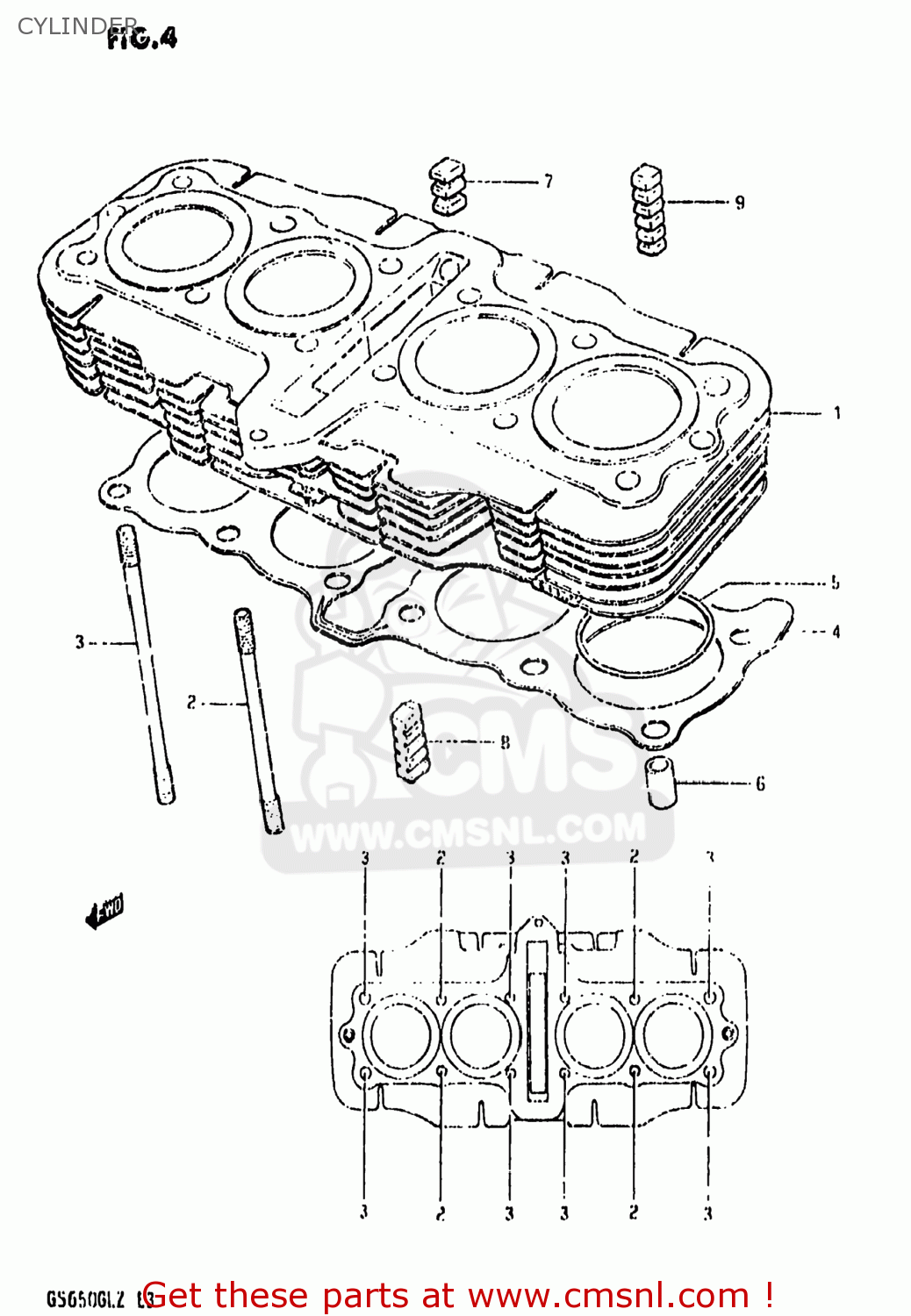

Cylinder diagram GS650GL 1982 (Z) USA (E03)
CYLINDER GS650GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121034202
ref: 1
CYLINDER
€ 0.00
2
0910808061
ref: 2
BOLT,STUD
€ 7.00
3
0910808062
ref: 3
BOLT,STUD
€ 4.50
4
1124134201
ref: 4
11241-34220
GASKET,CYLINDER (MCA)
€ 24.00
5
0928061001
ref: 5
O RING(D:2,ID:61)
€ 4.00
6
0920613001
ref: 6
04211-13189
PIN
€ 2.50
7
1125134200
ref: 7
11251-36500
PAD,CYLINDER
€ 6.50
8
1125234200
ref: 8
11251-36500
PAD,CYLINDER
€ 6.50
9
1125334200
ref: 9
11251-36500
PIN,EXHAUST VALVE
€ 6.50
