REAR COMBINATION LAMP

GS650GL 1982 (Z) USA (E03)

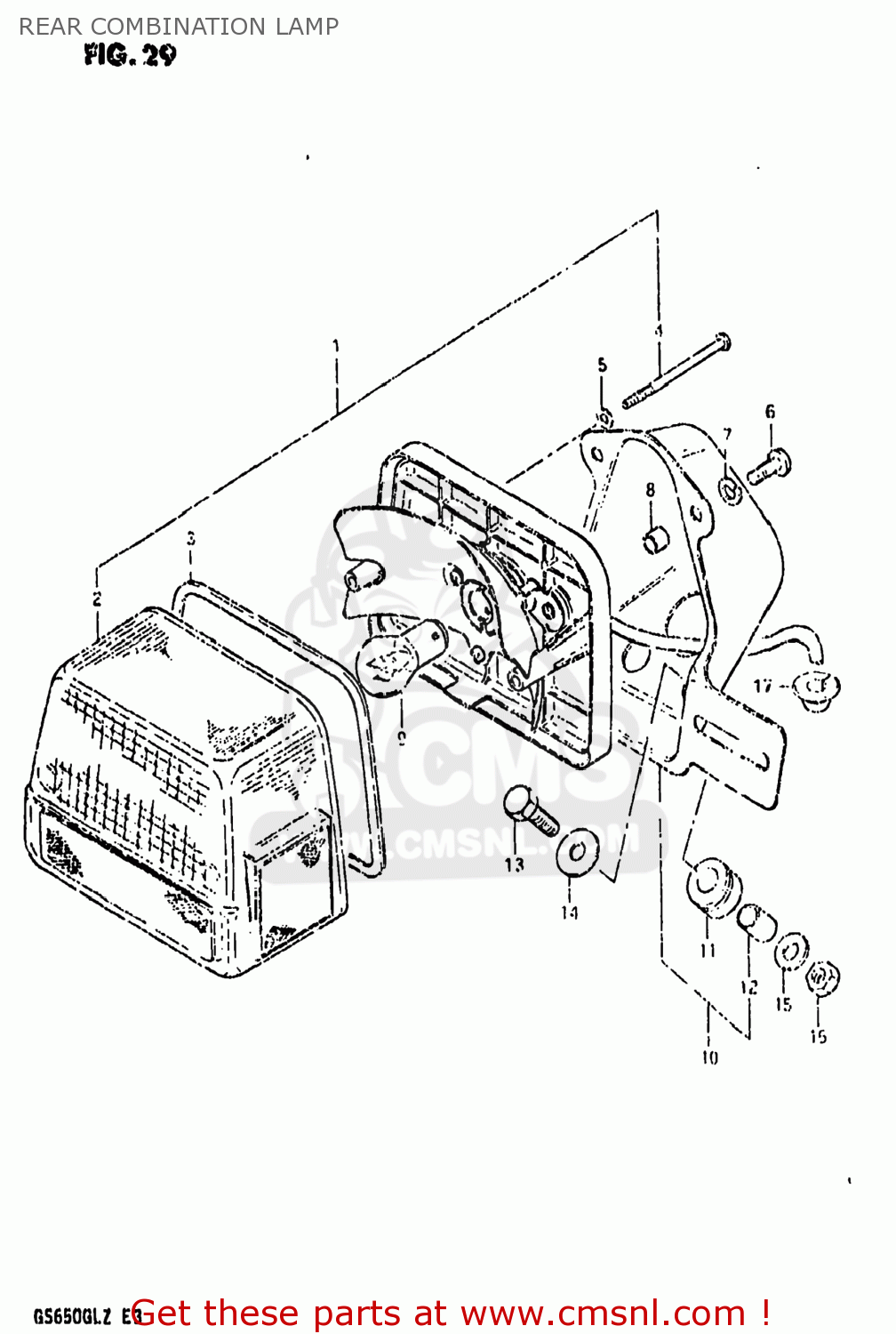

Rear combination lamp diagram GS650GL 1982 (Z) USA (E03)

REAR COMBINATION LAMP GS650GL 1982 (Z) USA (E03)

REAR COMBINATION LAMP GS650GL 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3572049130999
ref: 1

LAMP UNIT,RR COMBNATION

€ 130.50

2

3571249130
ref: 2

LENS

€ 49.00

3

3571349130
ref: 3

GASKET (NAS)

€ 5.50

4

3572344130
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0211206128
ref: 6
02112-06127

SCREW 6X12

€ 2.00

7

0832121058
ref: 7
08321-0105A

LOCK WASHER

€ 2.00

8

3576639210
ref: 8

SPACER

€ 0.00

9

0947112035
ref: 9

BULB(12V23W)

€ 5.50

10

3573049130
ref: 10

BRACKET UNIT,TAIL LAMP

€ 0.00

11

3576522210
ref: 11

CUSHION

€ 4.00

12

3576637120
ref: 12

SPACER

€ 2.50

13

0110706258
ref: 13
01500-06257

BOLT

€ 2.00

14

0916006027
ref: 14
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

15

0832221068
ref: 15
08322-01067

WASHER

€ 2.00

16

0930807004
ref: 16

GROMMET

€ 2.50
