CYLINDER HEAD
GS650GL 1982 (Z) USA (E03)

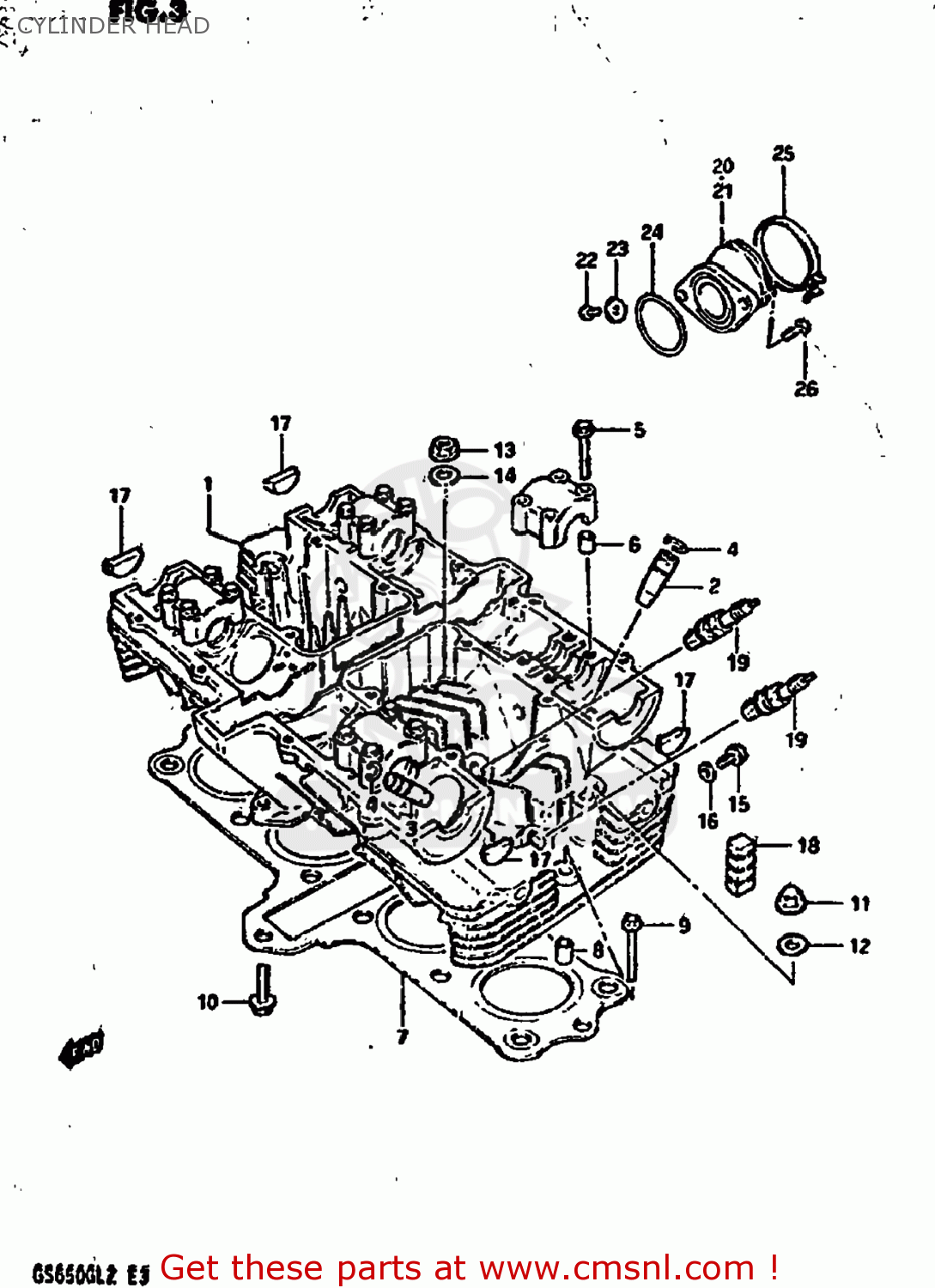

Cylinder head diagram GS650GL 1982 (Z) USA (E03)
CYLINDER HEAD GS650GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110034200
ref: 1-1
11100-34810
HEAD ASSEMBLY,CYLINDER
€ 1,167.50
1-2
1110034210
ref: 1-2
HEAD,CYLINDER
€ 1,020.00
2
1111534270
ref: 2
GUIDE,INTAKE VALVE
€ 14.50
3
1111647740
ref: 3
GUIDE,EXHAUST VALVE
€ 17.50
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7-1
1114134200
ref: 7-1
11140-34811
GASKET,CYLINDER HEAD (MCA)
€ 128.50
7-2
1114134202
ref: 7-2
11140-34811
GASKET,CYLINDER HEAD (MCA)
€ 128.50
8
0421111189
ref: 8
PIN
€ 2.00
9
0151706458
ref: 9
01550-06457
BOLT,UNDER
€ 2.50
10
0151706308
ref: 10
01550-06307
BOLT
€ 2.00
11
0915908029
ref: 11
NUT
€ 6.00
12
0916808009
ref: 12
09168-08013
GASKET (NAS)
€ 4.50
13
0915908031
ref: 13
09159-08034
NUT
€ 2.00
14
0916008039
ref: 14
WASHER(8.5X19X2.3)
€ 2.00
15
0151706128
ref: 15
01550-06127
BOLT
€ 2.50
16
0916806009
ref: 16
09168-06023
GASKET (NAS)
€ 2.00
17
0924123002
ref: 17
PLUG
€ 8.50
18
1125236500
ref: 18
11251-36200
PAD,CYLINDER
€ 6.00
19-1
0948200144
ref: 19-1
SPARK PLUG D8EA
€ 3.50
19-2
0948200145
ref: 19-2
09482-00223
SPARK PLUG X24ES-U
€ 3.50
20
1311047010
ref: 20
PIPE,INTAKE,R
€ 40.00
21
1312047010
ref: 21
PIPE,INTAKE,L
€ 38.00
22
0910605006
ref: 22
07130-0510B
BOLT
€ 2.00
23
0832221058
ref: 23
08322-01057
WASHER
€ 2.50
24
0928038003
ref: 24
09280-38004
O-RING
€ 4.50
25
0940250306
ref: 25
CLAMP
€ 6.00
26
0211206168
ref: 26
02112-06167
SCREW
€ 2.50
