SPEEDOMETER-TACHOMETER (MODEL X)
GS650GL 1982 (Z) USA (E03)

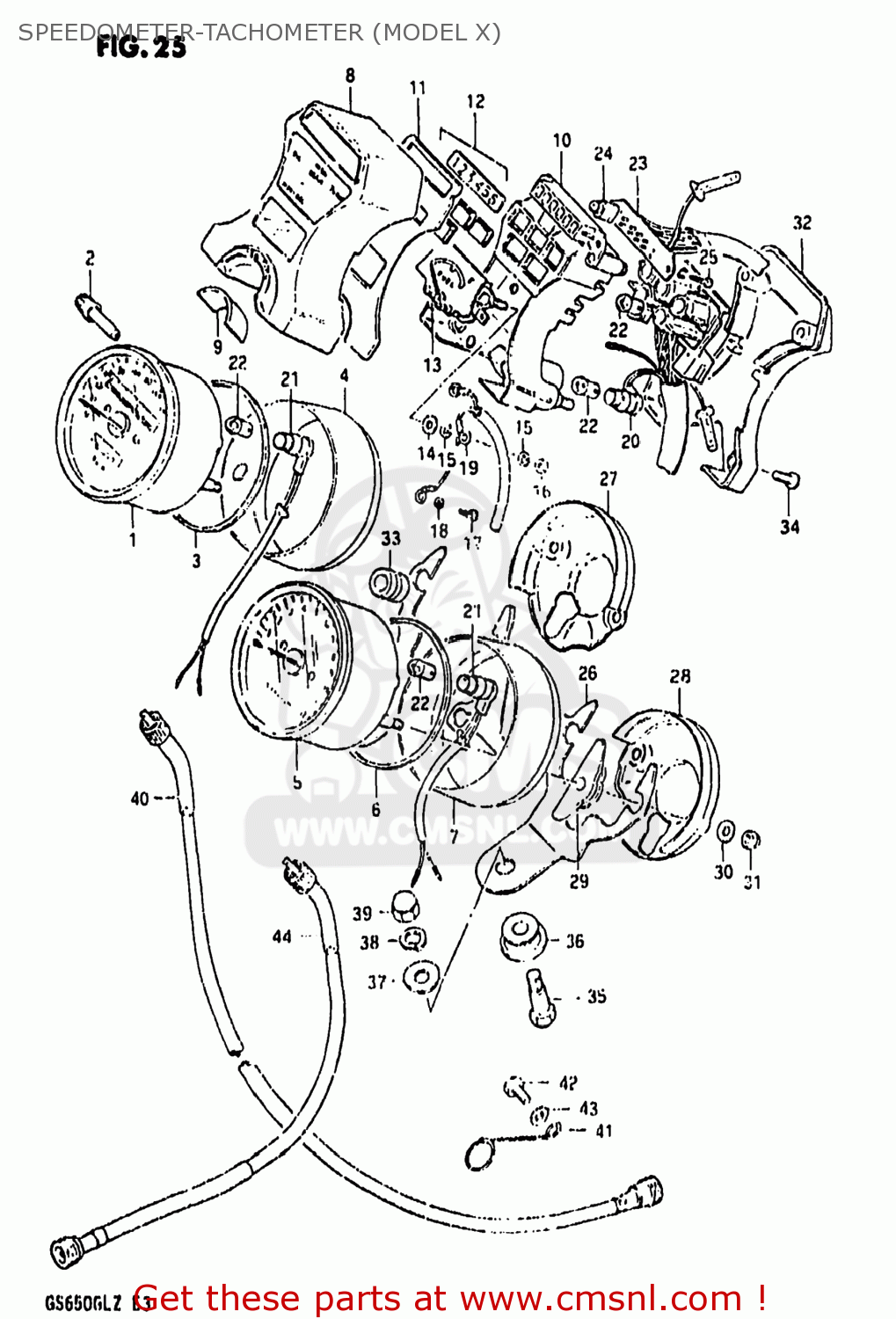

Speedometer-tachometer (model x) diagram GS650GL 1982 (Z) USA (E03)
SPEEDOMETER-TACHOMETER (MODEL X) GS650GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411045230
ref: 1
METER,SPEEDOMETER
€ 323.50
2
3498045020
ref: 2
KNOB
€ 4.50
3
3418945300
ref: 3
CUSHION
€ 10.00
4
3415145300
ref: 4
COVER,SPEEDOMETER
€ 16.00
5
3421047201
ref: 5
34210-45360
TACHOMETER
€ 392.00
6
3418945300
ref: 6
CUSHION
€ 10.00
7
3425145300
ref: 7
COVER,TACHOMETER
€ 12.00
8
3638145300
ref: 8
CASE,PILOT BOX,OUTER
€ 54.50
9
3499347000
ref: 9
SEAL,IGNITION SWITCH
€ 3.00
10
3638245300
ref: 10
36382-45301
CASE, PILOT BOX INNER
€ 27.00
11
3638645300
ref: 11
PLATE,PILOT BOX
€ 6.50
12
3630045810
ref: 12
36300-45811
LENS SET,PILOT
€ 22.50
13
3432045300
ref: 13
34320-45450
METER,FUEL
€ 85.00
14
0832221048
ref: 14
08322-01047
WASHER
€ 2.00
15
0831022048
ref: 15
08310-00047
NUT 4MM
€ 2.00
16
0831022048
ref: 16
08310-00047
NUT 4MM
€ 2.00
17
0211203088
ref: 17
02112-03087
SCREW
€ 1.50
18
0832121038
ref: 18
09162-03001
LOCK WASHER
€ 1.50
19
3437845301
ref: 19
34378-45410
LEAD WIRE, FUELMETER
€ 23.00
20-1
3632545301
ref: 20-1
36325-45302
SOCKET
€ 61.00
20-2
3632545302
ref: 20-2
SOCKET,PILOT CASE
€ 61.00
21-1
3417345301
ref: 21-1
34173-45302
SOCKET,METER
€ 15.50
21-2
3417345302
ref: 21-2
SOCKET,METER
€ 15.50
22-1
0947112001
ref: 22-1
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
22-2
0947112028
ref: 22-2
BULB(12V3.4W,T10)
€ 3.50
23
3645347200
ref: 23
INDICATOR ASSEMBLY,GEAR POSITION
€ 106.50
24
0947112071
ref: 24
BULB(14V1.12W)
€ 5.00
25
3645745100
ref: 25
SCREW
€ 2.00
26
3495045300
ref: 26
BRACKET,COMBINATION METER
€ 14.00
27
3419345300
ref: 27
ORNAMENT,SPEEDOMETER
€ 35.50
28
3429345300
ref: 28
COVER,TACHOMETER
€ 35.50
29
3419145300
ref: 29
CUSHION,METER
€ 3.50
30
0832221058
ref: 30
08322-01057
WASHER
€ 2.50
31
0831311057
ref: 31
08313-1005A
NUT
€ 1.50
32
3638345300
ref: 32
COVER,PILOT BOX,UNDER
€ 41.50
33
3638445300
ref: 33
CUSHION,PILOT BOX
€ 3.50
34
3638745300
ref: 34
SCREW,PILOT BOX
€ 2.00
35
0911108031
ref: 35
BOLT(8X31)
€ 4.00
36
3495631001
ref: 36
CUSHION,METER BRACKET
€ 4.50
37
0916008047
ref: 37
09160-08130
WASHER(8.5X23X1.2)
€ 2.00
38
0832121088
ref: 38
08321-01087
LOCK WASHER
€ 2.00
39
0831311088
ref: 39
08313-10087
NUT
€ 2.50
40
3491034411
ref: 40
34910-34412
CABLE ASSEMBLY,SPEEDOMETER
€ 20.50
41
3493837000
ref: 41
GUIDE,SPEEDOMETER CABLE
€ 14.50
42
0110706168
ref: 42
01500-06167
BOLT, UPPER
€ 3.00
43
0832221068
ref: 43
08322-01067
WASHER
€ 2.00
44
3494045411
ref: 44
34940-05311
CABLE ASSEMBLY,TACHOMETER
€ 49.00
