FRONT FORK (MODEL X)
GS650GL 1982 (Z) USA (E03)

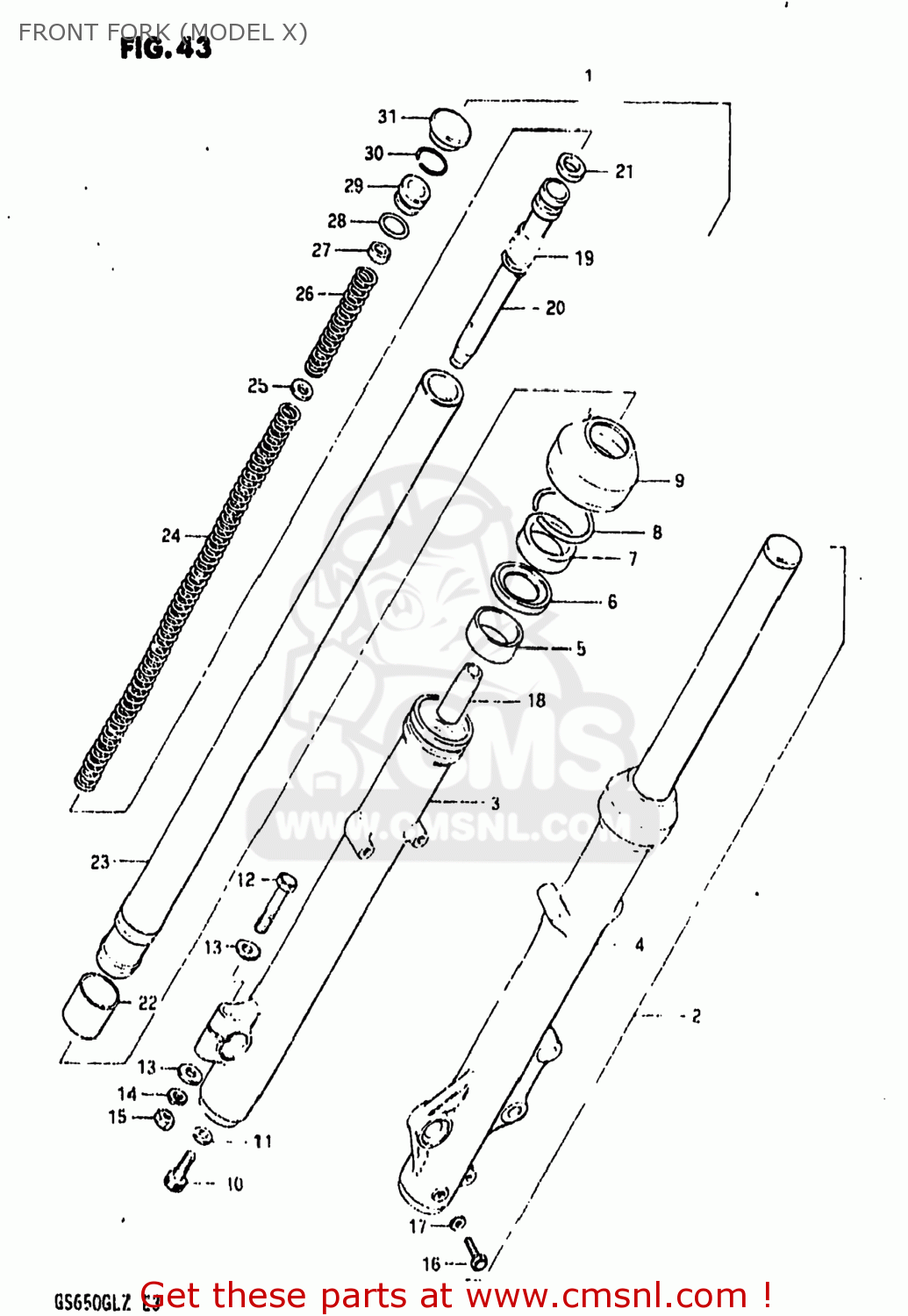

Front fork (model x) diagram GS650GL 1982 (Z) USA (E03)
FRONT FORK (MODEL X) GS650GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110334400
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 212.00
2
5110434400
ref: 2
DAMPER ASSEMBLY,LEFT
€ 183.50
3
5113134400
ref: 3
TUBE,OUTER,RIGHT
€ 114.50
4
5114134400
ref: 4
TUBE,OUTER,LEFT
€ 102.00
5
5115245400
ref: 5
BUSH,GUIDE
€ 14.00
6
5116845031
ref: 6
51168-30B00
SPACER,SEAL
€ 5.00
7
5115334200
ref: 7
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
8
5115631231
ref: 8
51156-01A00
CIRCLIP,FORK OIL SEAL
€ 3.50
9
5157134200
ref: 9
51571-20520
BOOT
€ 19.50
10
5114748130
ref: 10
BOLT(8X27)
€ 3.50
11
5114831030
ref: 11
51148-36011
GASKET (NAS)
€ 4.00
12
0110708508
ref: 12
01500-08507
BOLT 8X50
€ 3.00
13
0832221088
ref: 13
08322-01087
WASHER
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0831012088
ref: 15
08310-00087
NUT
€ 2.00
16
0910006011
ref: 16
BOLT(6X8)
€ 2.50
17
5118331030
ref: 17
GASKET,DRAIN,PLUG (NAS)
€ 4.00
18
5119545030
ref: 18
PIECE,OIL LOCK
€ 16.00
19
5117745030
ref: 19
SPRING,FORK REBOUND
€ 4.00
20
5114645230
ref: 20
CYLINDER,FRONT FORK
€ 23.50
21
5119631230
ref: 21
RING
€ 7.50
22
5112145400
ref: 22
PISTON
€ 22.00
23
5111034400
ref: 23
TUBE,FORK,INNER
€ 180.50
24
5118447200
ref: 24
SPRING,FRONT FORK MAIN,LOWER
€ 26.50
25
5119247200
ref: 25
WASHER,SPRING
€ 2.50
26
5117145030
ref: 26
SPRING,FRONT FORK,UPPER
€ 9.50
27
5117634400
ref: 27
SPACER,SPRING
€ 3.50
28
5111731030
ref: 28
51181-31030
O-RING
€ 3.50
29
5117547400
ref: 29
SPRING SEAT B
€ 5.50
30
5116947400
ref: 30
RING,STOPPER
€ 2.50
31
5118931230
ref: 31
CAP
€ 6.50
