FOOTREST (MODEL Z)
GS650GL 1982 (Z) USA (E03)

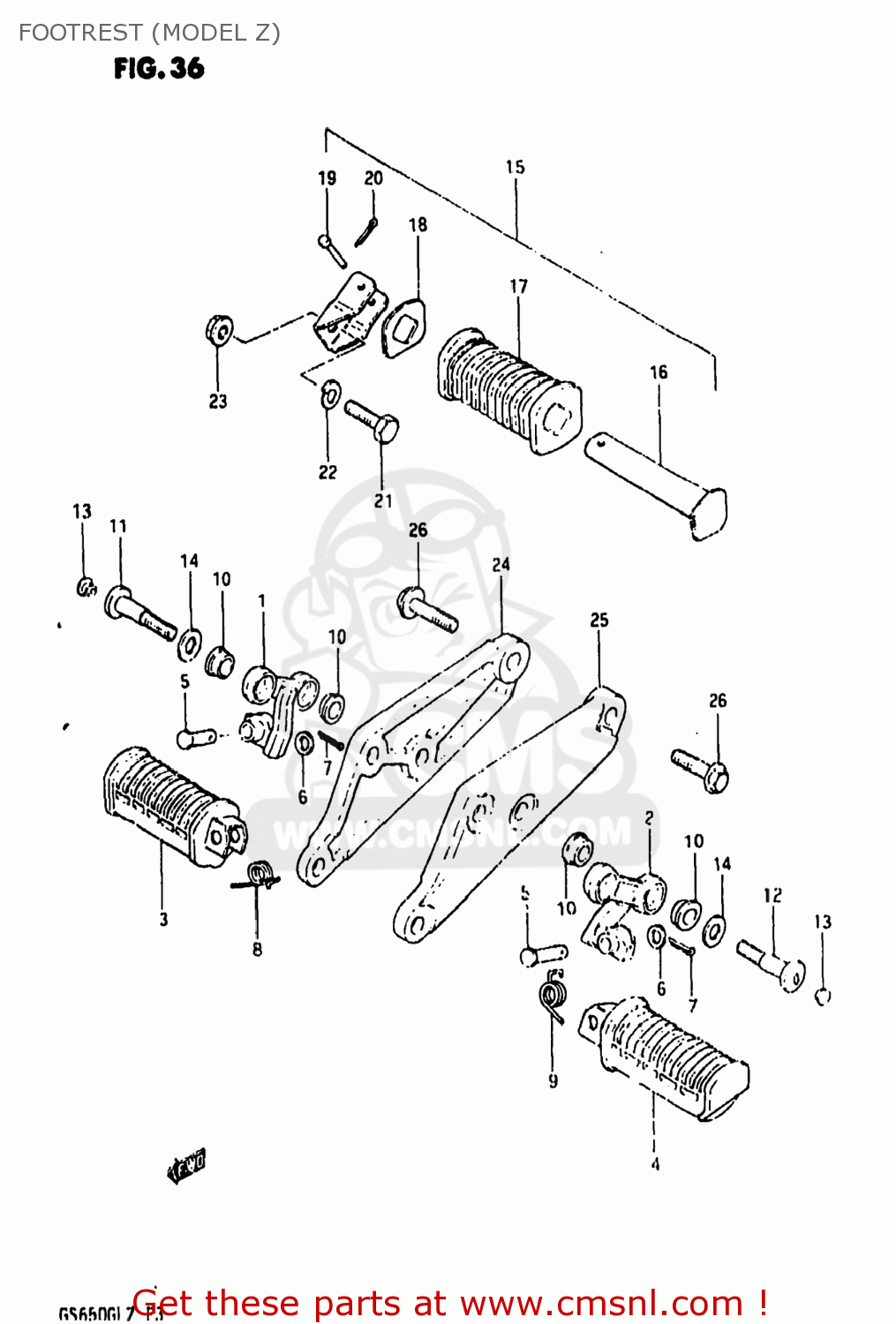

Footrest (model z) diagram GS650GL 1982 (Z) USA (E03)
FOOTREST (MODEL Z) GS650GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351034211
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 32.50
2
4352034211
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 18.00
3
4355034500
ref: 3
43550-34501
RUBBER,FOOTREST
€ 36.00
4
4356034500
ref: 4
43560-34501
FOOTREST
€ 37.00
5
0920008002
ref: 5
PIN
€ 2.00
6
0832211088
ref: 6
08322-01087
WASHER
€ 2.00
7
0411120158
ref: 7
04111-2015A
PIN
€ 1.50
8
0944819012
ref: 8
09448-19014
SPRING
€ 6.00
9
0944819013
ref: 9
09448-19015
SPRING
€ 4.00
10
0930514004
ref: 10
BUSH
€ 6.00
11
0910610004
ref: 11
BOLT
€ 4.00
12
0910610005
ref: 12
BOLT
€ 4.00
13
4357534500
ref: 13
CAP
€ 1.50
14
0916010035
ref: 14
WASHER(10.5X28X2.3)
€ 2.00
15-1
4360034500
ref: 15-1
FOOTREST ASSY,PILLION,R
€ 118.00
15-2
4370034500
ref: 15-2
FOOTREST ASSY,PILLION,L
€ 107.50
16-1
4361049201
ref: 16-1
BAR,REAR FOOTREST,RIGHT
€ 8.00
16-2
4362049201
ref: 16-2
BAR,REAR FOOTREST,LEFT
€ 23.00
17
4361249201
ref: 17
RUBBER,PILLION FOOTREST
€ 30.50
18
4363149201
ref: 18
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
19
0920006010
ref: 19
PIN
€ 2.50
20
0411120158
ref: 20
04111-2015A
PIN
€ 1.50
21
0110710358
ref: 21
01500-1035B
BOLT,M10X1.25X
€ 2.50
22
0832121108
ref: 22
08321-01107
LOCK WASHER
€ 2.00
23
0831616108
ref: 23
08316-10107
NUT
€ 2.00
24
4381134210
ref: 24
BRACKET,MUFFLER,RIGHT
€ 72.00
25
4382134210
ref: 25
BRACKET,MUFFLER,LEFT
€ 72.00
26
0152710258
ref: 26
01550-1025A
BOLT
€ 3.00
