HEADLAMP
GS650GL 1982 (Z) USA (E03)

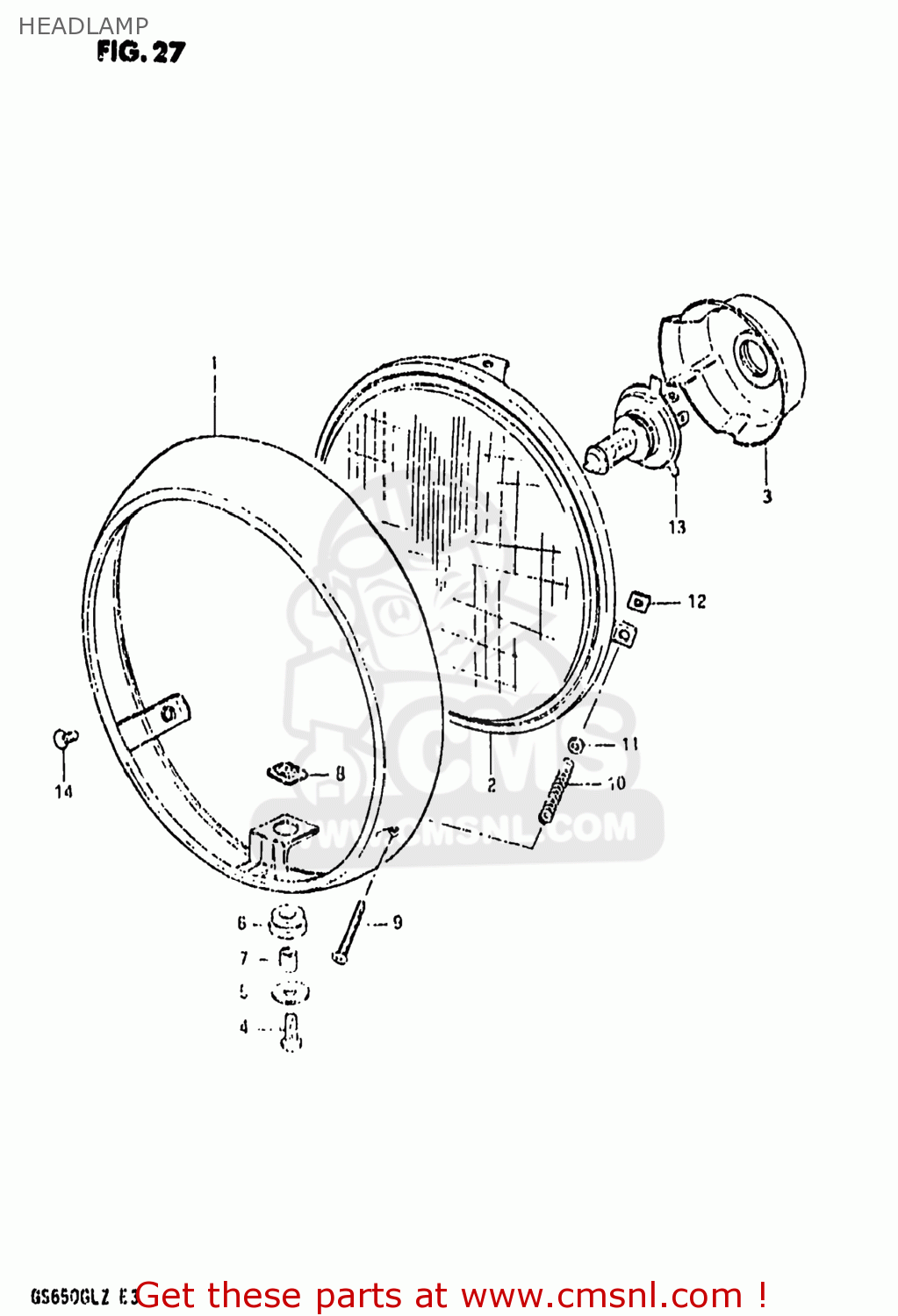

Headlamp diagram GS650GL 1982 (Z) USA (E03)
HEADLAMP GS650GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
3510045231999
ref: 0
HEADLAMP ASSEMBLY
€ 249.00
1
3511145231
ref: 1
RIM
€ 50.00
2
3512145230
ref: 2
LAMP UNIT
€ 119.50
3
3517345200
ref: 3
COVER,SOCKET
€ 14.00
4
0211205168
ref: 4
02112-05167
SCREW
€ 2.50
5
3513845230
ref: 5
09160-05045
WASHER
€ 2.00
6
3513945230
ref: 6
CUSHION
€ 1.50
7
3513345230
ref: 7
SPACER
€ 2.00
8
3515548510
ref: 8
NUT
€ 2.00
9
3515145230
ref: 9
SCREW
€ 3.50
10
3515445230
ref: 10
35154-48510
SPRING,HEADLAMP ADJUST
€ 3.00
11
3515727630
ref: 11
WASHER
€ 2.50
12
3515248510
ref: 12
35135-45600
NUT,HEADLAMP ADJUSTER
€ 3.00
13
0947112060
ref: 13
BULB(12V60/55W,H4)
€ 8.00
14
0912705013
ref: 14
SCREW(5X12)
€ 2.50
