BATTERY

GS750T 1983 (D) USA (E03)

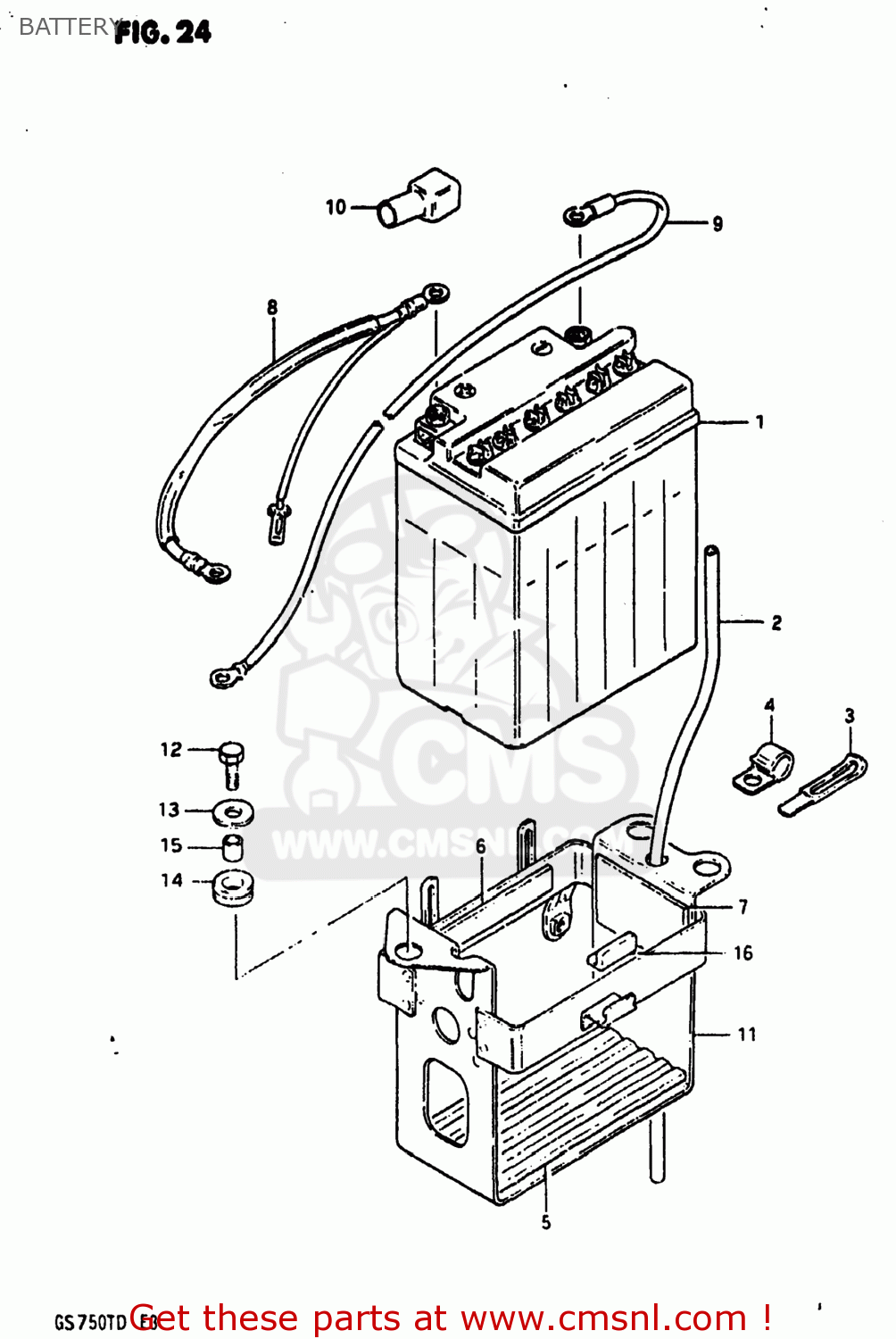

Battery diagram GS750T 1983 (D) USA (E03)

BATTERY GS750T 1983 (D) USA (E03)

BATTERY GS750T 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

2

3368049000
ref: 2

HOSE,BATTERY EXHAUST

€ 7.00

3

0940406401
ref: 3
09404-06432

CLAMP L:35

€ 2.50

4

0940309303
ref: 4

CLAMP

€ 5.50

5

3365131000
ref: 5

PROTECTOR,BATTERY

€ 29.00

6

3365249000
ref: 6

PROTECTOR(20X90)X4

€ 2.00

7

3365208410
ref: 7
33651-37000

PROTECTOR,BATTERY

€ 5.00

8

3382049000
ref: 8

WIRE,BATTERY PLUS

€ 16.00

9

3385003201
ref: 9

LEAD WIRE,BATTERY(-)

€ 8.50

10

3362445000
ref: 10

CAP,TERMINAL

€ 5.50

11

4154049500
ref: 11
41540-08C00

HOLDER,BATTERY

€ 49.00

12

0110706168
ref: 12
01500-06167

BOLT, UPPER

€ 3.00

13

0916006020
ref: 13
09160-06066

WASHER

€ 2.00

14

0932008007
ref: 14
09320-08021

CUSHION

€ 4.00

15

0918006038
ref: 15

SPACER(6.1X9X7.5)

€ 2.00

16

4711702400
ref: 16

CUSHION,FRAME COVER

€ 2.00
