REAR SWINGING ARM
GS750T 1983 (D) USA (E03)

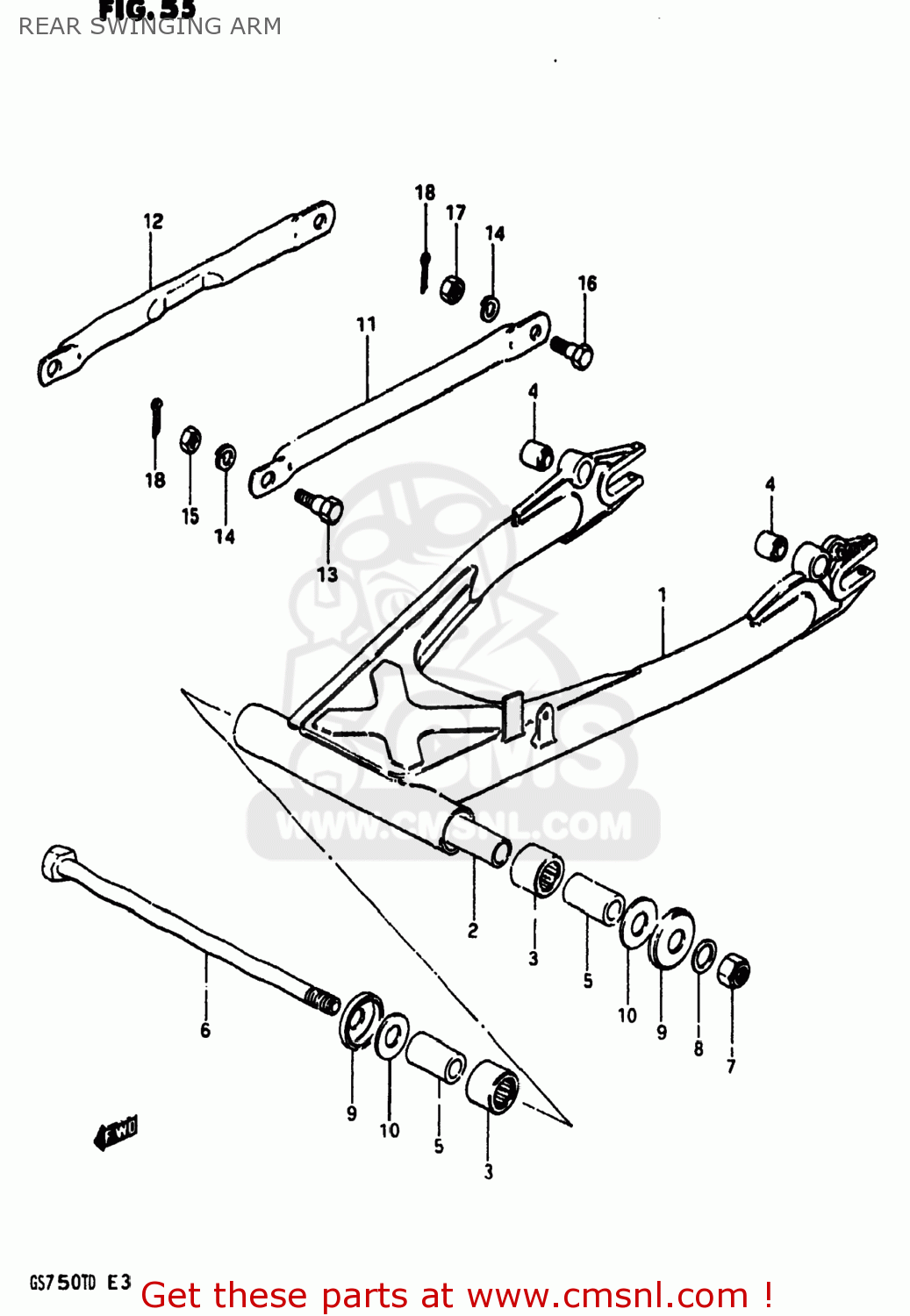

Rear swinging arm diagram GS750T 1983 (D) USA (E03)
REAR SWINGING ARM GS750T 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110045880019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 94.00
2
6128145001
ref: 2
SPACER,RR SWGARM PIVOT CTR
€ 19.50
3
0926322017
ref: 3
BEARING(22X29X30)
€ 18.50
4
0931910008
ref: 4
BUSH
€ 8.00
5
6125145001
ref: 5
SPACER,RR SWGARM PIVOT
€ 12.50
6
6121145400
ref: 6
SHAFT,REAR SWING ARM
€ 49.00
7
0831921148
ref: 7
08319-2114A
NUT 14MM
€ 3.00
8
0832211148
ref: 8
08322-01147
WASHER
€ 2.00
9
6126245002
ref: 9
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
10
0916014020
ref: 10
WASHER(14.2X34X1)
€ 2.50
11
6431144000019
ref: 11
64311-44200-019
TORQUE LINK,REAR
€ 13.00
12
6431144200019
ref: 12
LINK,REAR TORQUE
€ 13.00
13
0911110010
ref: 13
BOLT(10X24.5)
€ 5.50
14
0832121108
ref: 14
08321-01107
LOCK WASHER
€ 2.00
15
0831022108
ref: 15
08310-00107
NUT
€ 2.50
16
0910110003
ref: 16
BOLT(10X31)
€ 4.00
17
0831011108
ref: 17
08310-00107
NUT
€ 2.50
18
0411120208
ref: 18
04111-2020A
PIN 20X20
€ 1.50
