CYLINDER HEAD COVER (MODEL Z)
GS750T 1983 (D) USA (E03)

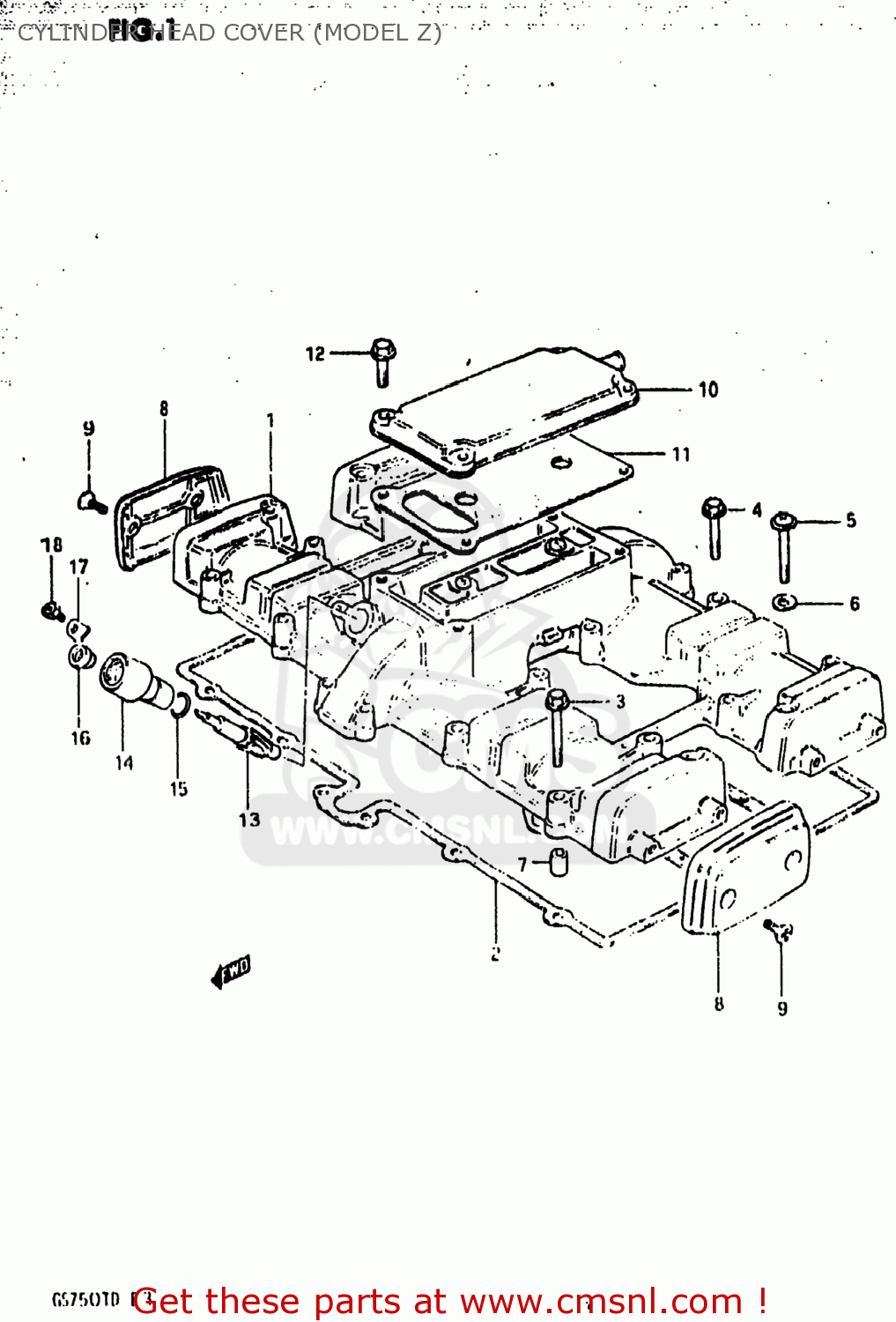

Cylinder head cover (model z) diagram GS750T 1983 (D) USA (E03)
CYLINDER HEAD COVER (MODEL Z) GS750T 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1117145420
ref: 1
11171-45422
COVER,CYLINDER HEAD
€ 259.50
2
1117349210
ref: 2
11173-49224-H17
GASKET,CYLINDER HEAD COVER (MCA)
€ 47.00
3
0151706408
ref: 3
01550-06407
BOLT
€ 2.50
4
0151706358
ref: 4
01550-06357
BOLT 6X35
€ 2.50
5
0215206408
ref: 5
02112-16407
SCREW 6X40
€ 3.00
6
0916806015
ref: 6
09168-06023
WASHER
€ 2.00
7
0920608001
ref: 7
PIN(6.2X8X11)
€ 2.00
8
1117449210
ref: 8
CAP,CYLINDER HEAD COVER
€ 28.50
9
0912705013
ref: 9
SCREW(5X12)
€ 2.50
10
1117645401
ref: 10
11176-45402
COVER,BREATHER
€ 24.50
11
1117745400
ref: 11
11177-45400-H17
GASKET (MCA)
€ 19.00
12
0151706208
ref: 12
01550-06207
BOLT,REAR
€ 2.50
13
2643149200
ref: 13
26431-49201
GEAR,TACHOMETER DRIVEN
€ 40.00
14
2644145000
ref: 14
26441-49000
SLEEVE,TACHOMETER DRIVE
€ 18.00
15
2645145000A
ref: 15
SEAL,TACHOMETER DRIVEN
€ 4.50
16
0928905002
ref: 16
SEAL,OIL(5X12X8)
€ 11.00
17
2644933000
ref: 17
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
18
0912805101
ref: 18
SCREW(5X12)
€ 1.50
