REAR WHEEL (MODEL Z)
GS750T 1983 (D) USA (E03)

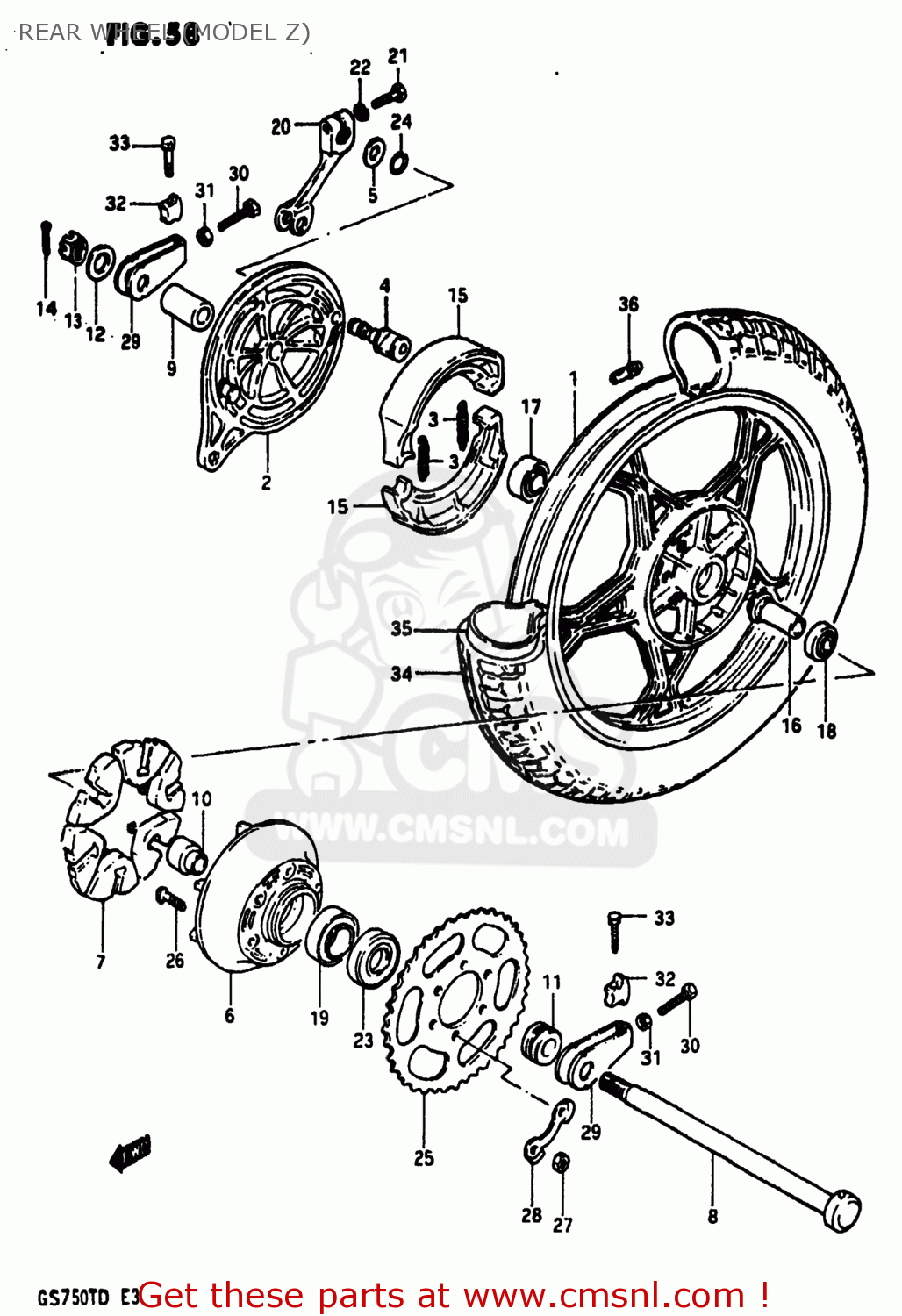

Rear wheel (model z) diagram GS750T 1983 (D) USA (E03)
REAR WHEEL (MODEL Z) GS750T 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6415047400291
ref: 1
64150-47401-291
WHEEL,REAR
€ 182.50
2
6421045900
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 58.00
3
5542030000
ref: 3
SPRING,BRAKE SHOE
€ 3.50
4
5444045900
ref: 4
CAM,FRONT BRAKE
€ 9.00
5
0916016015
ref: 5
09160-16043
WASHER (16.5X42X2.6)
€ 2.00
6
6461131001
ref: 6
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
7
6465131000
ref: 7
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
8
6471149000
ref: 8
64711-4900V
AXLE,REAR
€ 59.00
9
0918020084
ref: 9
SPACER
€ 2.00
10
6473331000
ref: 10
64733-3100V
SPACER,REAR HUB BEARING
€ 20.00
11
0918020054
ref: 11
SPACER(20X33X28.3)
€ 13.00
12
0916019008
ref: 12
WASHER(19X34X4)
€ 3.00
13
0831431188
ref: 13
08314-3118A
NUT 18MM
€ 5.00
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15
6441031000
ref: 15
64400-31830
SHOE,BRAKE (MCA)
€ 111.00
16
6473045900
ref: 16
SPACER,REAR HUB BEARING
€ 8.50
17
0812362047
ref: 17
BEARING
€ 17.00
18
0814362047
ref: 18
09262-20042
BEARING, LH
€ 21.00
19
0811363050
ref: 19
09262-25073
BEARING
€ 21.50
20
6445145900
ref: 20
LEVER,REAR BRAKE CAM
€ 10.00
21
0110706308
ref: 21
01500-06307
BOLT
€ 2.50
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
23
0928533001
ref: 23
SEAL,OIL(33X62X7)
€ 20.00
24
0928016005
ref: 24
O RING(D:2.4,ID:15.8)
€ 1.50
25
6451145001
ref: 25
SPROCKET,RR
€ 82.00
26
0911910002
ref: 26
09105-10001
BOLT
€ 3.50
27
0914010026
ref: 27
09140-10026-XC0
NUT
€ 2.00
28
0916910007
ref: 28
WASHER
€ 7.50
29
6141045201
ref: 29
61410-31001
ADJUSTER,CHAIN
€ 50.00
30
0910408018
ref: 30
09104-08034
BOLT 8X50
€ 3.00
31
0831012088
ref: 31
08310-00087
NUT
€ 2.00
32
6143331000
ref: 32
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
33
0151708408
ref: 33
01550-08407
BOLT (8X40)
€ 3.50
34-1
6510045910
ref: 34-1
65100-45116
TIRE
€ 102.00
34-2
6510045950
ref: 34-2
TIRE
€ 0.00
35
6520049010
ref: 35
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
36-1
5541145100
ref: 36-1
55412-17G00
BALANCER,WHEEL
€ 7.00
36-2
5541245100
ref: 36-2
BALANCER,WHEEL
€ 4.00
36-3
5541345100
ref: 36-3
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
