OIL PUMP - OIL FILTER

GS750T 1983 (D) USA (E03)

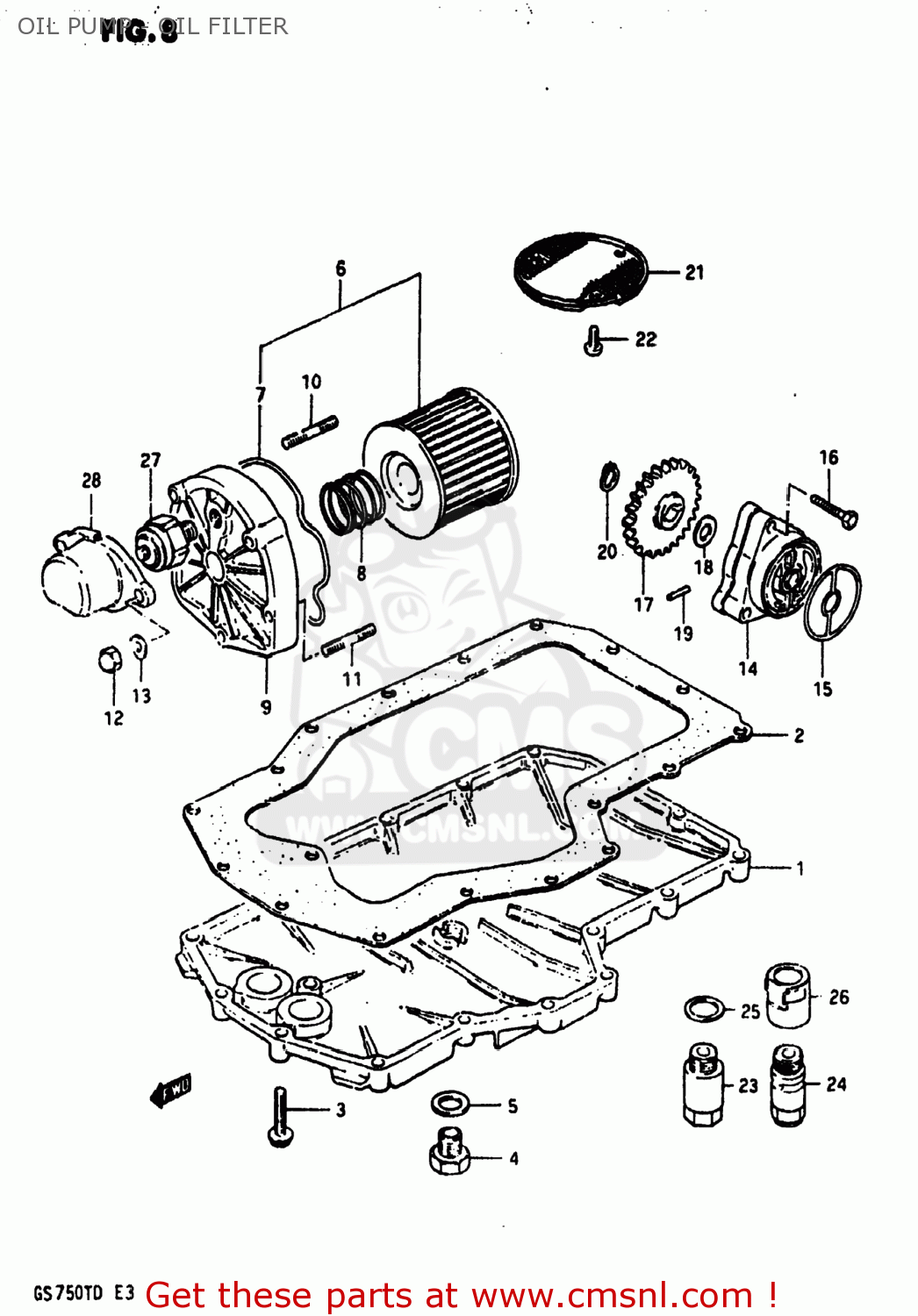

Oil pump - oil filter diagram GS750T 1983 (D) USA (E03)

OIL PUMP - OIL FILTER GS750T 1983 (D) USA (E03)
OIL PUMP - OIL FILTER GS750T 1983 (D) USA (E03)
OIL PUMP - OIL FILTER GS750T 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1151145400
ref: 1-1
11511-45401
PAN,OIL
1151145400
€ 600.50
1-2
1151145411
ref: 1-2
11511-45401
PAN,OIL
€ 600.50
2
1148945400
ref: 2
11489-45400-H17
GASKET,OIL PAN (MCA)
1148945400
€ 27.50
3-1
0151706258
ref: 3-1
01550-06257
BOLT
0151706258
€ 2.50
3-2
0151706255
ref: 3-2
01550-0625A
BOLT
€ 2.50
4
0924714001
ref: 4
09247-14002
PLUG
0924714001
€ 5.00
5
0916814004
ref: 5
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
6
1651045040
ref: 6
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
7
1651849200
ref: 7
O RING,OIL FILTER CHAMBER CAP
1651849200
€ 8.50
8
0944032004
ref: 8
SPRING
0944032004
€ 13.50
9-1
1653145400
ref: 9-1
CAP,ENGINE OIL FILTER
1653145400
€ 29.50
9-2
1653145430
ref: 9-2
CAP,ENGINE OIL FILTER
€ 0.00
10
0142106308
ref: 10
01421-06307
STUD 6X30
€ 2.50
11
0142106258
ref: 11
01421-06257
STUD 6X25
0142106258
€ 2.50
12-1
0831311068
ref: 12-1
08313-10067
NUT
0831311068
€ 2.00
12-2
0831311065
ref: 12-2
08313-1006A
NUT 6MM
0831311065
€ 2.00
13-1
0832221068
ref: 13-1
08322-01067
WASHER
0832221068
€ 2.00
13-2
0832221065
ref: 13-2
08322-0106B
WASHER
€ 2.00
14
1640049220
ref: 14
PUMP ASSY,ENGINE OIL
1640049220
€ 155.00
15
1649149200
ref: 15
16491-31300
O-RING,OIL PUMP
1649149200
€ 12.50
16
0910306045
ref: 16
BOLT(6X32)
0910306045
€ 3.00
17
1633145000
ref: 17
GEAR,ENG OIL PUMP DRIVEN
1633145000
€ 135.50
18
0822110185
ref: 18
SHIM
0822110185
€ 2.00
19
0926104009
ref: 19
PIN(4X15.8)
0926104009
€ 1.50
20
0833131109
ref: 20
CIRCLIP
0833131109
€ 2.00
21-1
1652045400
ref: 21-1
STRAINER,ENGINE OIL
1652045400
€ 9.50
21-2
1652045500
ref: 21-2
STRAINER,ENGINE OIL
€ 9.50
22
0211206128
ref: 22
02112-06127
SCREW 6X12
0211206128
€ 2.00
23
1644045400
ref: 23
16440-45902
VALVE ASSEMBLY,OIL RELIEF
€ 37.50
24
1644045900
ref: 24
16440-45902
VALVE ASSEMBLY,OIL RELIEF
€ 37.50
25
0821216221
ref: 25
WASHER
0821216221
€ 6.00
26
1644945400
ref: 26
GUIDE, OIL REGULATOR
€ 0.00
27
3782034200
ref: 27
37820-33D10
SWITCH ASSEMBLY
3782034200
€ 29.00
28-1
3782145401
ref: 28-1
37821-45410
COVER,OIL PRESSURE SWITCH
3782145401
€ 9.00
28-2
3782145410
ref: 28-2
COVER,OIL PRESSURE SWITCH
€ 9.00
