CRANKCASE (MODEL D)
GS750T 1983 (D) USA (E03)

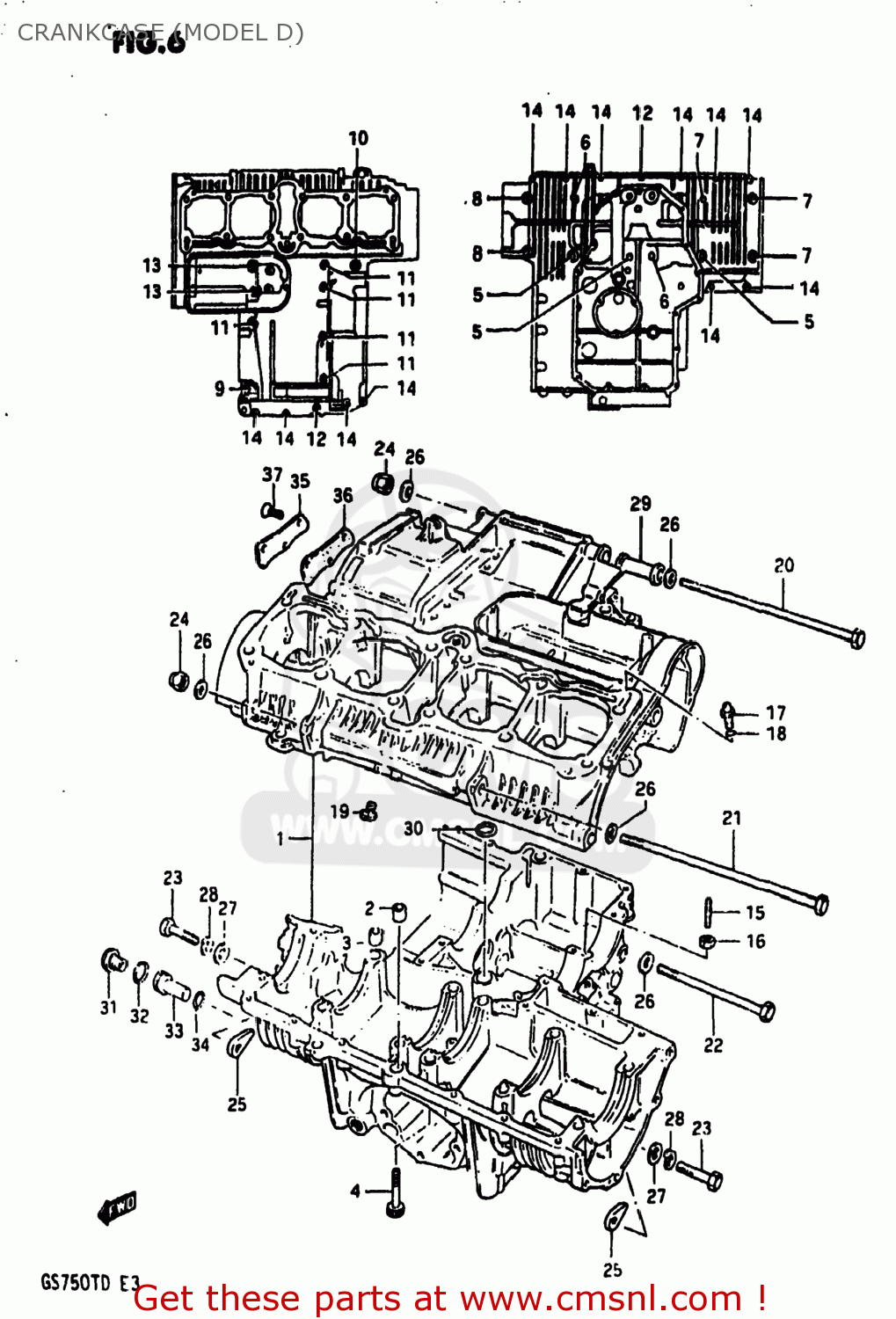

Crankcase (model d) diagram GS750T 1983 (D) USA (E03)
CRANKCASE (MODEL D) GS750T 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130045841
ref: 1
CRANKCASE SET
€ 932.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910608015
ref: 4
07130-0860B
BOLT
€ 4.50
5
0910308040
ref: 5
BOLT(8X140)
€ 4.00
6
0910308024
ref: 6
09103-08134
BOLT
€ 3.00
7
0151708955
ref: 7
01550-0895A
BOLT (8X95)
€ 3.50
8
0151708705
ref: 8
BOLT (8X70)
€ 2.50
9
0151708658
ref: 9
01550-08657
BOLT 8X65
€ 3.00
10
0151706955
ref: 10
BOLT (5X95)
€ 3.00
11
0151706805
ref: 11
01550-06803
BOLT
€ 2.50
12
0151706605
ref: 12
01550-0660A
BOLT ,6X60
€ 2.50
13
0151706458
ref: 13
01550-06457
BOLT,UNDER
€ 2.50
14
0151706405
ref: 14
01550-0640A
BOLT (6X40)
€ 2.00
15
0142106358
ref: 15
01421-0635A
STUD BOLT
€ 2.00
16
0831616068
ref: 16
08319-31067
NUT
€ 2.50
17
0949324008
ref: 17
JET
€ 16.00
18
0928003003
ref: 18
O RING(D:1.05,ID:3.1)
€ 2.50
19
0949324005
ref: 19
JET,AIR
€ 13.00
20
0910010140
ref: 20
BOLT 10X230
€ 13.50
21
0910110010
ref: 21
09101-10010-XC0
BOLT 10X250
€ 49.50
22
0910010078
ref: 22
BOLT(10X165)
€ 10.50
23
0110710605
ref: 23
01500-1060A
BOLT (10X60)
€ 3.50
24
0915910011
ref: 24
NUT
€ 3.00
25
0915910020
ref: 25
NUT
€ 7.50
26
0832211105
ref: 26
08322-0110A
WASHER
€ 2.50
27
0916010054
ref: 27
09160-10005
WASHER (10.5X20X3.2)
€ 2.00
28
0832121105
ref: 28
08321-0110A
LOCK WASHER
€ 3.00
29
1161049300
ref: 29
SPACER
€ 14.50
30
0928013001
ref: 30
O RING(D:3.2,ID:12.9)
€ 4.00
31
0924718001
ref: 31
PLUG
€ 8.00
32
0928018004
ref: 32
O RING(D:2.4,ID:17.8)
€ 5.50
33
1132945400
ref: 33
PIN,OIL GALLERY
€ 2.50
34
0928010005
ref: 34
09280-10016
SEAL (D:1.9 ID:9.8)
€ 3.50
35
1139445000
ref: 35
CAP,OIL GALLERY
€ 6.50
36
1149745000
ref: 36
11497-45000-H17
GASKET,OIL GALLERY (MCA)
€ 13.00
37
0212206168
ref: 37
02122-06167
SCREW
€ 2.00
