CLUTCH
GS750T 1983 (D) USA (E03)

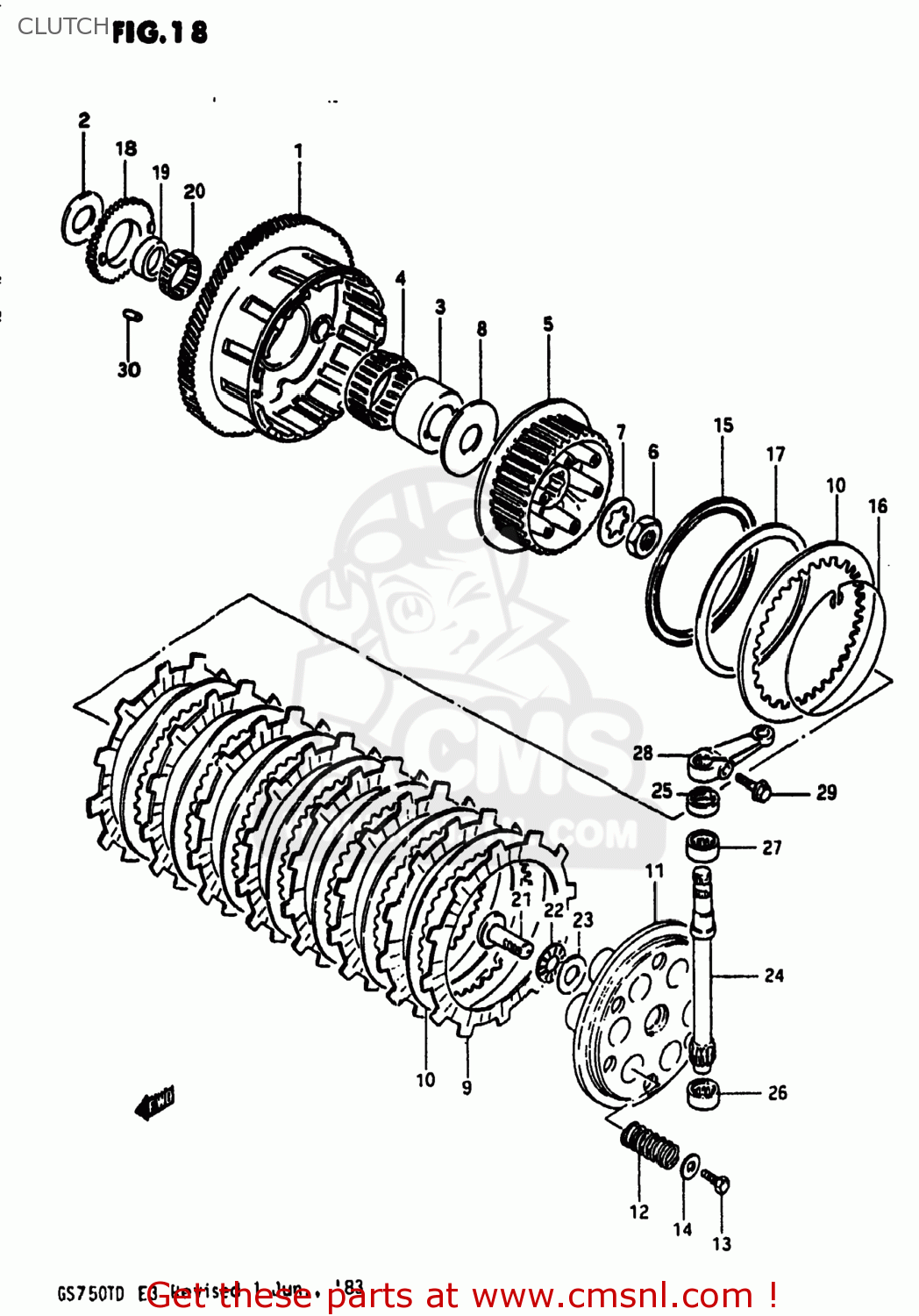

Clutch diagram GS750T 1983 (D) USA (E03)
CLUTCH GS750T 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120045400
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 432.50
2
0916025023
ref: 2
09160-25055
WASHER
€ 9.50
3-1
2125145001
ref: 3-1
21251-49200
SPACER,PRIMARY DRIVEN
€ 65.50
3-2
2125149200
ref: 3-2
SPACER
€ 65.50
4
0926351001
ref: 4
09263-51002
BEARING
€ 37.00
5
2141145100
ref: 5
HUB,CLUTCH SLEEVE
€ 107.50
6
0914024004
ref: 6
09140-24007
NUT
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
€ 7.50
8
0916025022
ref: 8
WASHER(25X66X3.5)
€ 13.50
9
2144145100
ref: 9
PLATE,CLUTCH DRIVE (MCA)
€ 20.00
10
2145131000
ref: 10
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 9.00
11
2146245102
ref: 11
21462-12C00
DISC,CLUTCH PRESSURE
€ 146.50
12
0944019007
ref: 12
SPRING
€ 3.00
13
0110706168
ref: 13
01500-06167
BOLT, UPPER
€ 3.00
14
0916006020
ref: 14
09160-06066
WASHER
€ 2.00
15
2147145101
ref: 15
SEAT,WAVE WASHER
€ 16.00
16
2148145100
ref: 16
RING,STOPPER
€ 5.00
17
0916400003
ref: 17
WASHER
€ 9.00
18
1632145002
ref: 18
GEAR,ENG OIL PUMP DRIVE(NT:38)
€ 151.00
19
1632545001
ref: 19
SPACER,OIL PUMP DRIVE GEAR
€ 13.50
20
0926336002
ref: 20
BEARING(36X40X10)
€ 24.50
21
2316549000
ref: 21
RACK,CLUTCH RELEASE
€ 15.00
22
0926315003
ref: 22
BEARING(15X28X2)
€ 7.00
23
0916015015
ref: 23
09160-15045
WASHER
€ 4.00
24
2326145400
ref: 24
PINION,CLUTCH RELEASE
€ 475.50
25
0928512002
ref: 25
09285-12006
OIL SEAL
€ 7.00
26
0926312014
ref: 26
BEARING(12X19X12)
€ 11.00
27
0926315012
ref: 27
BEARING(15X22X12)
€ 11.50
28-1
2327137400
ref: 28-1
23271-45400
ARM,CLUTCH RELEASE
€ 31.50
28-2
2327149001
ref: 28-2
23271-45400
ARM,CLUTCH RELEASE
€ 31.50
29
0151706208
ref: 29
01550-06207
BOLT,REAR
€ 2.50
30
2121549000
ref: 30
CUSHION,PRIMARY DRIVEN GEAR
€ 3.00
