LEFT HANDLE SWITCH (MODEL D)
GS750T 1983 (D) USA (E03)

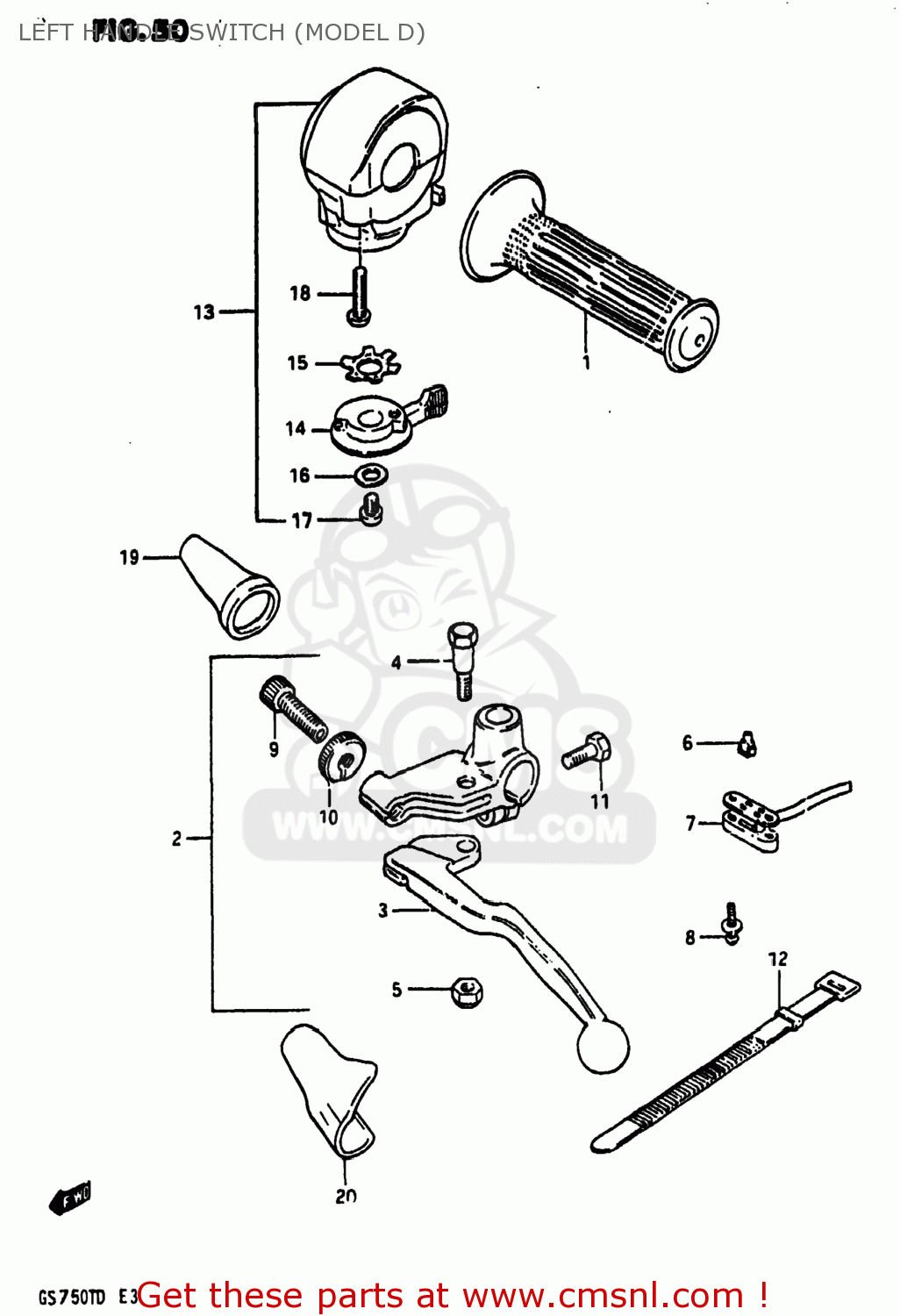

Left handle switch (model d) diagram GS750T 1983 (D) USA (E03)
LEFT HANDLE SWITCH (MODEL D) GS750T 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721145030
ref: 1
57211-24201
GRIP,LEFT
€ 18.50
2
5750049112
ref: 2
57500-49301
LEVER ASSEMBLY
€ 53.50
3
5762049111
ref: 3
LEVER,CLUTCH
€ 34.00
4
5743111011
ref: 4
57431-11013
BOLT,LEVER
€ 6.00
5
0831921068
ref: 5
08319-2106A
NUT 6MM
€ 2.00
6
5746518601
ref: 6
CONTACT,SWITCH
€ 4.50
7
5748133010
ref: 7
COVER,FR BK TERMINAL BASE
€ 19.50
8
5748449110
ref: 8
SCREW
€ 1.50
9
5744111010
ref: 9
ADJUSTER,CABLE
€ 8.00
10
5744211010
ref: 10
NUT,CABLE ADJUSTER
€ 4.00
11
5745149100
ref: 11
BOLT,CLUTCH LEVER HOLDER
€ 3.00
12
0940712402
ref: 12
CLAMP(L:120)
€ 3.00
13
3740009320
ref: 13
37400-33420
SWITCH ASSEMBLY,HANDLE,LEFT
€ 123.50
14
3757145110
ref: 14
LEVER,STARTER
€ 19.00
15
3757345110
ref: 15
WASHER
€ 2.00
16
0832211068
ref: 16
08322-0106B
WASHER 6MM
€ 2.00
17
0211206088
ref: 17
02112-06087
SCREW
€ 2.00
18
0211205258
ref: 18
02112-05257
SCREW
€ 2.00
19
5827331000
ref: 19
BOOT,CLUTCH CABLE
€ 2.50
20
5766131000
ref: 20
COVER,CLUTCH LEVER
€ 5.50
