CLUTCH

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

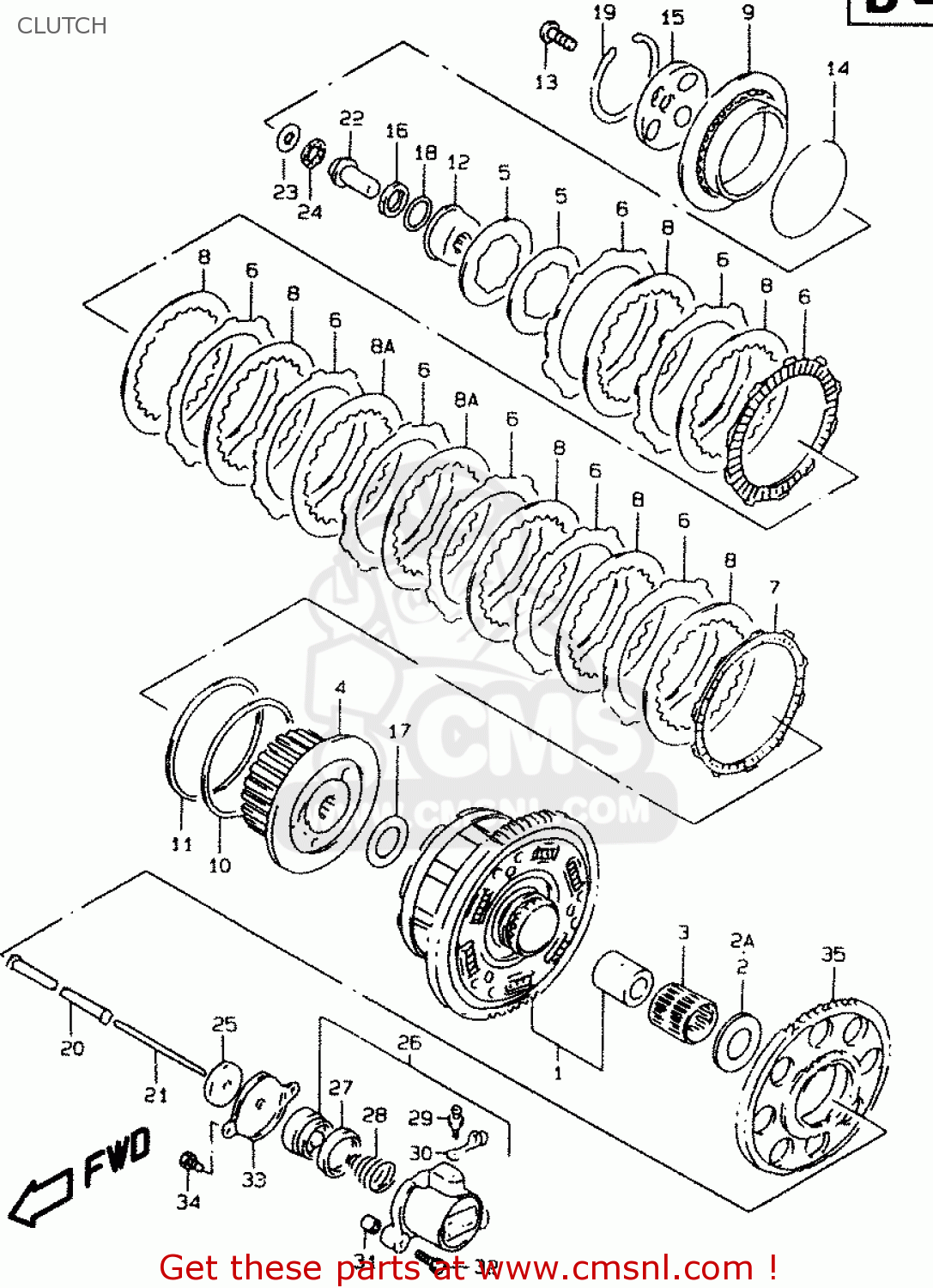

Clutch diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

CLUTCH GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

CLUTCH GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

2120031861
ref: 1
<-21200-31860

GEAR ASSY,PRI DRIVEN

€ 517.00

2

0916025067
ref: 2
MODEL T

WASHER(25X54X2.5)

€ 9.00

2A

0916025037
ref: 2A
MODEL V/W/X

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141031E20
ref: 4

HUB,CLUTCH SLEEVE

€ 140.50

5

2141331E20
ref: 5

SPRING,CLUTCH

€ 12.50

6

2144131E00
ref: 6

PLATE,CLUTCH DRIVE

€ 21.50

7

2144231E00
ref: 7

PLATE,CLUTCH DRIVE

€ 25.50

8

2145131E00
ref: 8
T:1.6

PLATE,CLUTCH DRIVEN NO.1

€ 7.00

8A

2145131E10
ref: 8A
T:2.0

PLATE,CLUTCH DRIVEN NO.2

€ 7.50

9

2146231E20
ref: 9

DISC,CLUTCH PRESSURE

€ 58.00

10

2147131E20
ref: 10

SEAT,CLUTCH PLATE WAVE WASHER

€ 12.00

11

2147231E20
ref: 11

WASHER,CLUTCH PLATE WAVE

€ 15.00

12

2161131E20
ref: 12

HOLDER,CLUTCH SPRING

€ 39.00

13

2161431E20
ref: 13

SCREW,CLUTCH SPRING HOLDER

€ 3.50

14

2162331E20
ref: 14

SEAT,CLUTCH SPRING

€ 5.50

15

2146340C01
ref: 15

LIFTER,CLUTCH PRESSURE DISC

€ 33.00

16

0915924010
ref: 16

NUT

€ 11.00

17

0916025056
ref: 17
25X50X2.5

WASHER(25X50X2.5)

€ 9.50

18

0916424006
ref: 18
24.2X35X2

WASHER

€ 4.00

19

0938184002
ref: 19

CIRCLIP

€ 10.50

20

2311038B00
ref: 20

ROD,CLUTCH PUSH,R

€ 19.00

21

2311131301
ref: 21

ROD,CLUTCH PUSH,L

€ 14.50

22

2312131E00
ref: 22

PIECE,CLUTCH PUSH

€ 18.50

23

0916015045
ref: 23
15.5X28X1

WASHER(15.5X28X1)

€ 4.00

24

0926315003
ref: 24
15X28X2

BEARING(15X28X2)

€ 7.00

25

0928506015
ref: 25
6X34X5.5

SEAL,OIL(6X34X5.5)

€ 8.50

26

2316006B02
ref: 26

CYLINDER,CLUTCH RELEASE

€ 122.50

27

2316306B00
ref: 27

CUP

€ 5.50

28

2316405A00
ref: 28

SPRING,CLUTCH CYLINDER

€ 3.50

29

5912101A00
ref: 29

BLEEDER

€ 8.50

30

5912201A00
ref: 30

CAP,BLEEDER

€ 4.50

31

0421109129
ref: 31

PIN

€ 2.00

32

0713006253
ref: 32

BOLT,CL.COVER

€ 3.00

33

2311746E00
ref: 33

COVER,CLUTCH RELEASE CYLINDER

€ 6.50

34

0211206103
ref: 34

SCREW

€ 1.50

35

2272127A03
ref: 35
<-22721-27A02

GEAR,GENERATOR DRIVE

€ 230.00
