REAR CUSHION LEVER (GSF1200T/V/W/X/ST/SV/SW/SX)

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

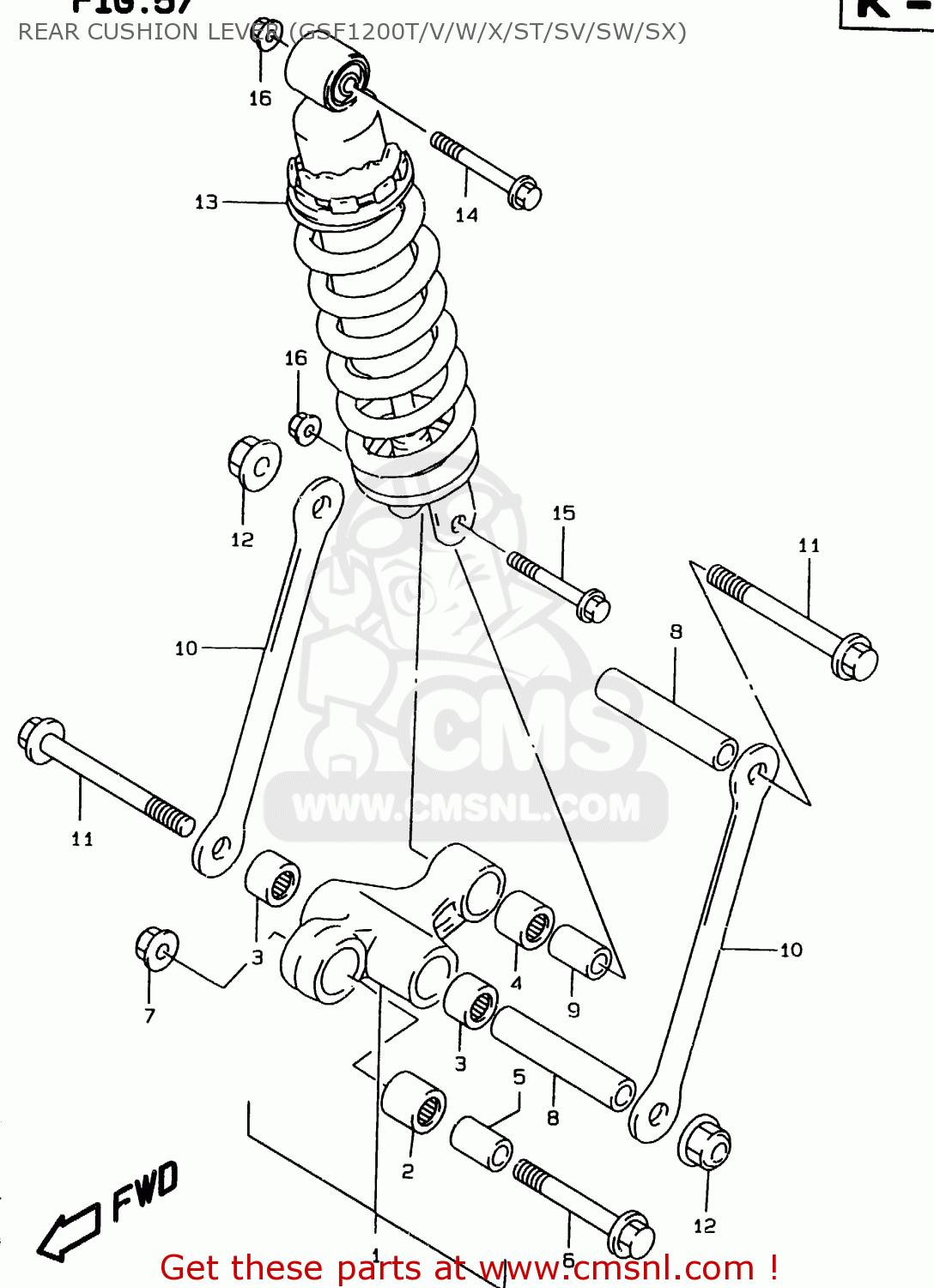

Rear cushion lever (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR CUSHION LEVER (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR CUSHION LEVER (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6260033871
ref: 1

LEVER SET,RR CUSHION

€ 318.00

2

0926320064
ref: 2

BEARING(20X27X26)

€ 20.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268401D00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 17.00

6

6266842A02
ref: 6

BOLT,CUSHION LEVER FR

€ 7.00

7

0831931128
ref: 7

NUT 12MM

€ 4.00

8

0918012122
ref: 8

SPACER(12X17X85)

€ 15.00

9

6268440A10
ref: 9

SPACER,RR CUSHION LEVER

€ 11.50

10

6264127E10
ref: 10

ROD,RR CUSHION LEVER

€ 19.00

11

0910312037
ref: 11

BOLT(12X115)

€ 11.00

12

0831931128
ref: 12

NUT 12MM

€ 4.00

13

6210027E10
ref: 13

ABSORBER,RR SH

€ 691.50

14

0910310064
ref: 14

BOLT(10X50)

€ 4.50

15

0910310101
ref: 15

BOLT(10X54)

€ 3.00

16

0831931107
ref: 16

NUT

€ 3.00
