FRONT BRAKE PIPE (GSF1200SAV/SAW/SAX)

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

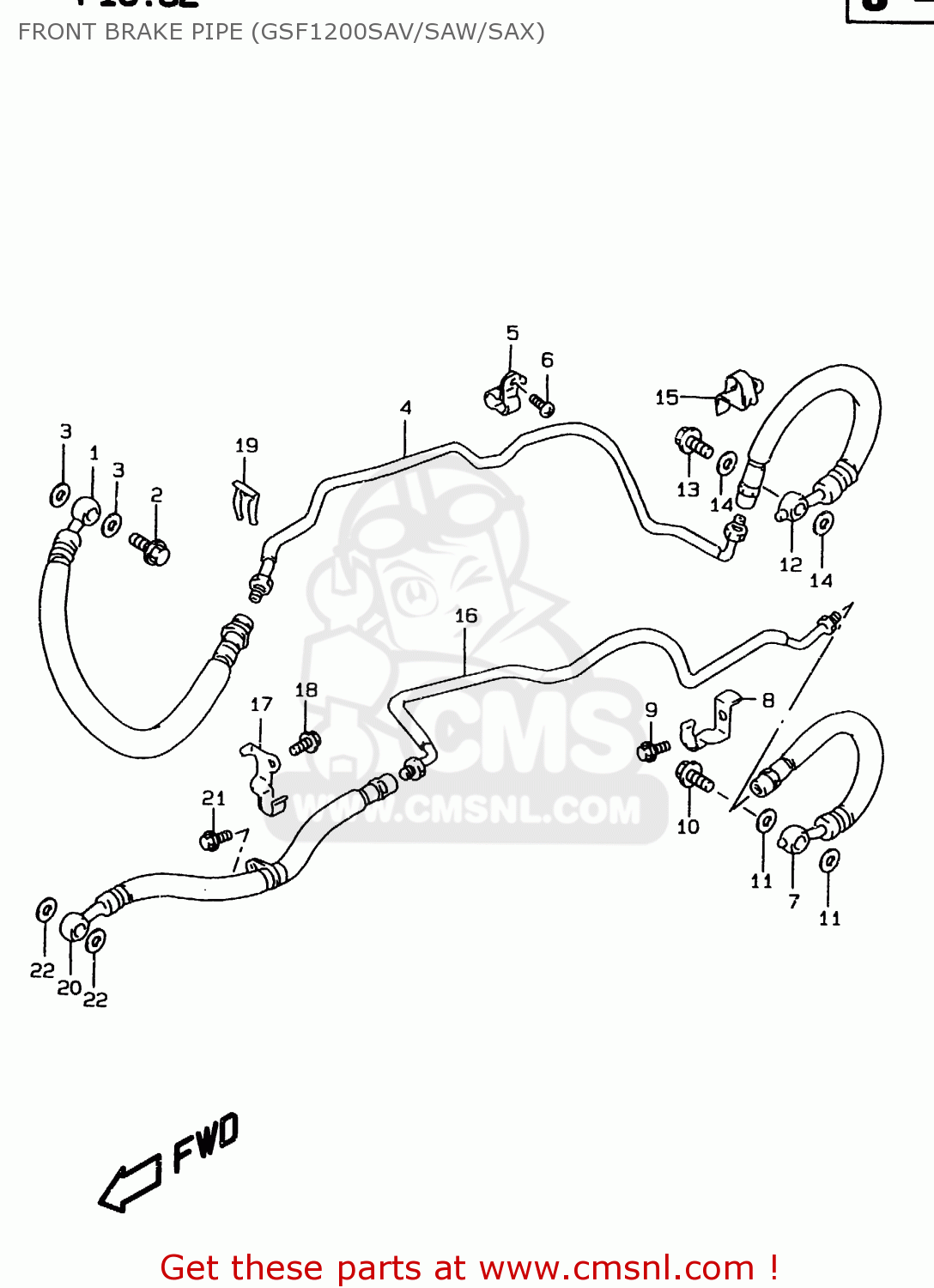

Front brake pipe (gsf1200sav/saw/sax) diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FRONT BRAKE PIPE (GSF1200SAV/SAW/SAX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FRONT BRAKE PIPE (GSF1200SAV/SAW/SAX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5948027E60
ref: 1

HOSE COMP,FRONT BRAKE

€ 51.50

2

0936010042
ref: 2

BOLT UNION

€ 5.00

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5925027E50
ref: 4

PIPE,FR BRAKE NO.1

€ 22.00

5

5925327E50
ref: 5

CLAMP,FR BRAKE PIPE

€ 9.00

6

0214206163
ref: 6

SCREW

€ 2.50

7

5956027E70
ref: 7

HOSE,FR BRAKE HU OUT

€ 39.50

8

5955227E50
ref: 8

CLAMP,FR BRAKE HOSE HU OUT

€ 9.00

9

0155006163
ref: 9

BOLT

€ 2.50

10

0936010042
ref: 10

BOLT UNION

€ 5.00

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

12

5956027E60
ref: 12

HOSE,FR BRAKE HU IN

€ 39.50

13

0936010042
ref: 13

BOLT UNION

€ 5.00

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

15

5955127E50
ref: 15

CLAMP,FR BRAKE HOSE HU IN

€ 9.00

16

5945027E50
ref: 16

PIPE,FR BRAKE NO.2

€ 21.00

17

5926527E50
ref: 17

CLAMP,FR BRAKE HOSE JOINT

€ 9.50

18

0155006163
ref: 18

BOLT

€ 2.50

19

0938313001
ref: 19

E RING

€ 2.50

20

5956027E50
ref: 20

HOSE,FR BRAKE JOINT

€ 65.00

21

0155006163
ref: 21

BOLT

€ 2.50

22

0916110009
ref: 22

WASHER(10X15X1.5)

€ 2.00
