OIL PUMP

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

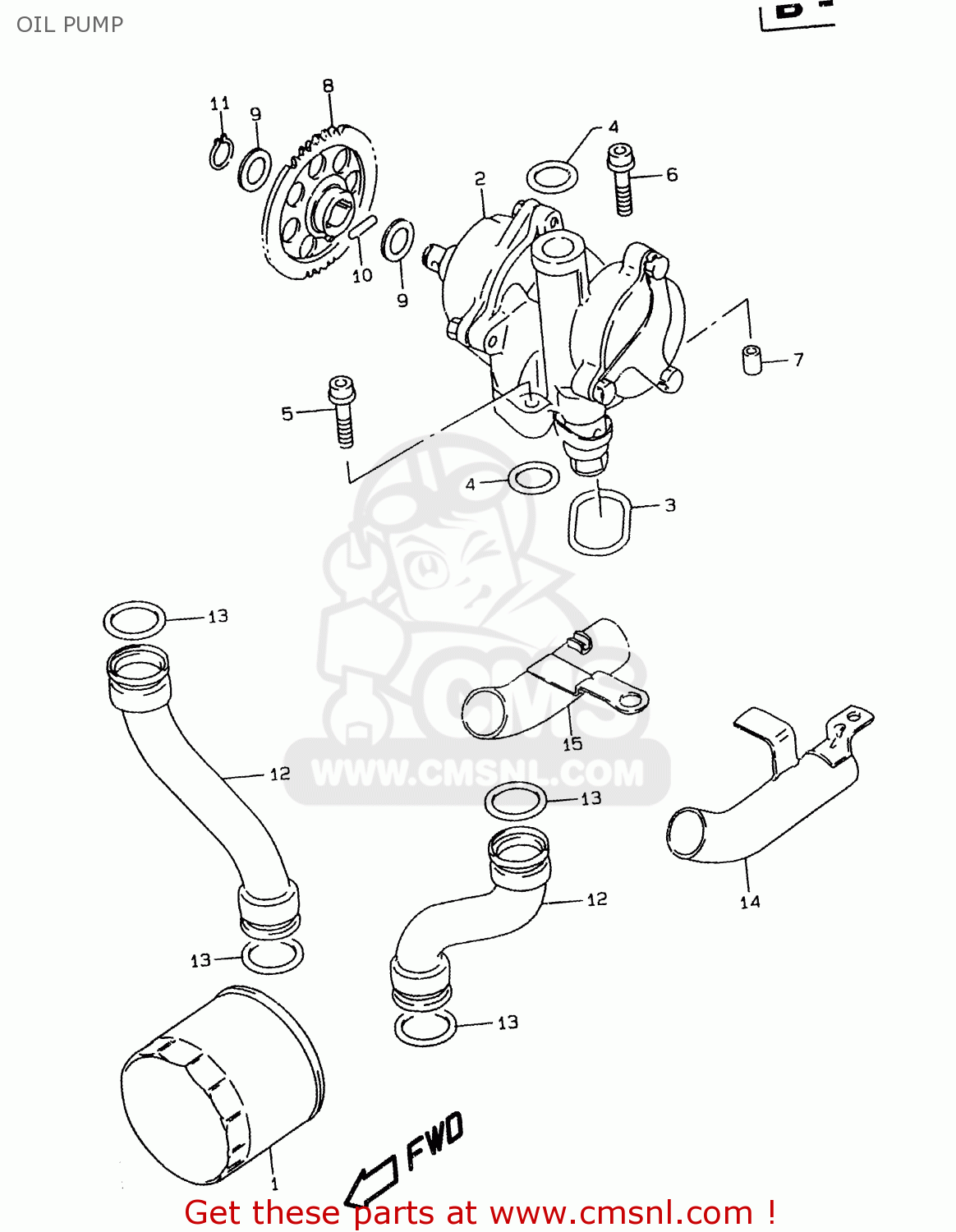

Oil pump diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

OIL PUMP GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

OIL PUMP GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1651006B01
ref: 1
MODEL T/V

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

1

1651034E00
ref: 1
MODEL W/X

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

2

1640006B20
ref: 2

PUMP ASSY,OIL

€ 348.50

3

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

4

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

5

0713006303
ref: 5
MODEL T/V/W

BOLT

€ 3.00

5

0910606089
ref: 5
MODEL X

BOLT(6X30)

€ 4.00

6

0713006353
ref: 6
MODEL T/V/W

BOLT

€ 3.50

6

0910606088
ref: 6
MODEL X

BOLT(6X35)

€ 2.50

7

0421109129
ref: 7

PIN

€ 2.00

8

1633219C00
ref: 8

GEAR,OIL PUMP DRIVEN(NT:37)

€ 60.00

9

0822112205
ref: 9

SHIM

€ 1.50

10

0926105006
ref: 10

PIN(5X18)

€ 1.50

11

0833131126
ref: 11

CIRCLIP,12 MM

€ 2.00

12

1648148B01
ref: 12

PIPE,OIL OUTLET

€ 46.00

13

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

14

1653027A02
ref: 14

PIPE,OIL OUTLET UNDER,L

€ 22.00

15

1654027A02
ref: 15

PIPE,OIL OUTLET UNDER,R

€ 23.00
