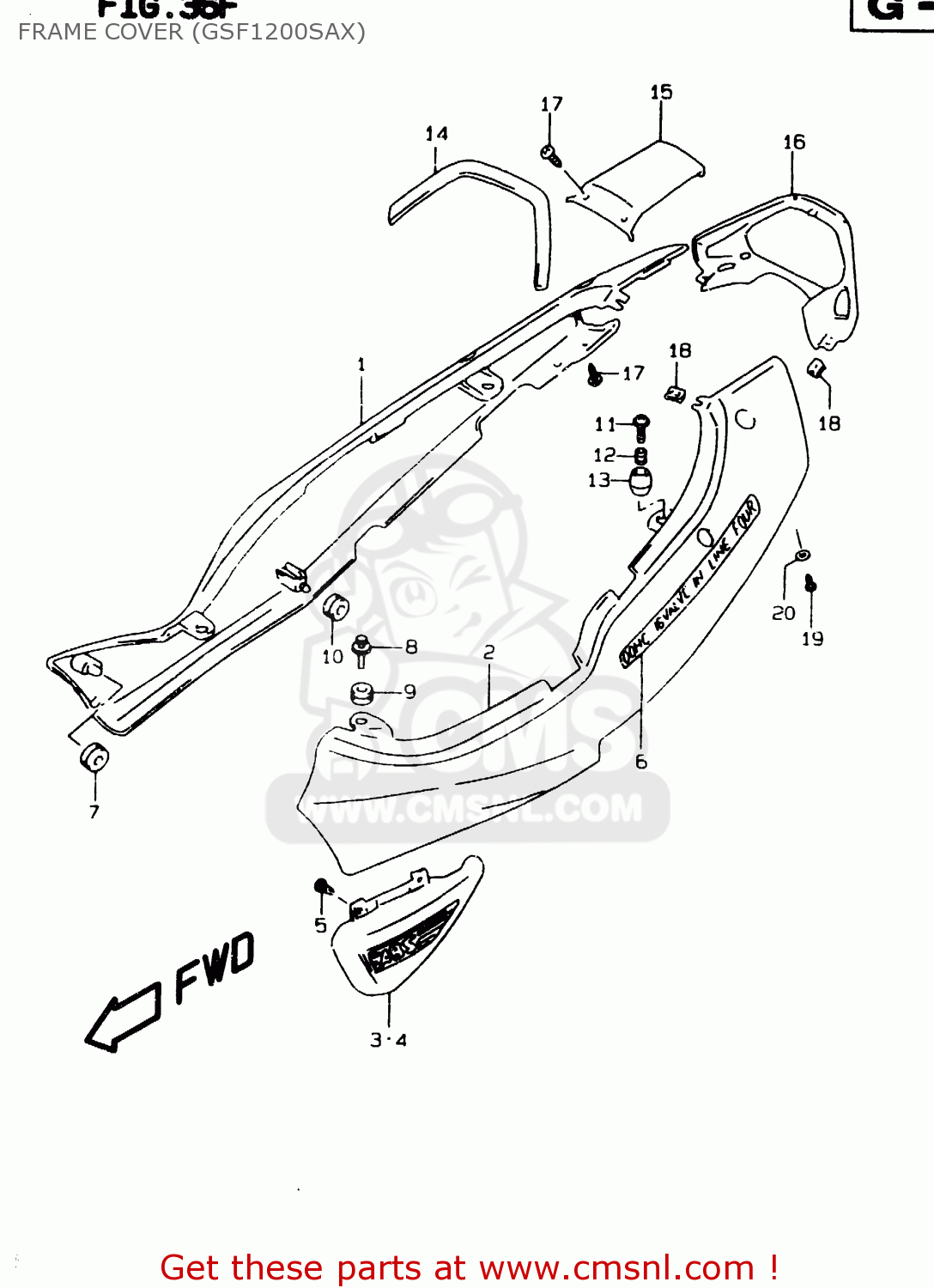

FRAME COVER (GSF1200SAX)

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

Frame cover (gsf1200sax) diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FRAME COVER (GSF1200SAX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FRAME COVER (GSF1200SAX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4711027E6022U
ref: 1

COVER,FRAME,R(MAROON)

€ 0.00

1

4711027E6033J
ref: 1

COVER COMP,FRAME,RIGHT

€ 159.50

1

4711027E60Y7F
ref: 1

COVER, FRAME RH (BROWN)

€ 215.50

1

4711027E60Y7G
ref: 1

COVER, FRAME RH (GREEN)

€ 159.50

2

4721027E6022U
ref: 2

COVER COMP,FRAME,LEFT

€ 0.00

2

4721027E6033J
ref: 2

COVER,FRAME,L(BLACK)

€ 179.00

2

4721027E60Y7F
ref: 2

COVER, FRAME LH (BROWN)

€ 215.50

2

4721027E60Y7G
ref: 2

COVER, FRAME LH (GREEN)

€ 179.00

3

4712127E00291
ref: 3

COVER,FRAME LWR,R

€ 25.00

4

4722127E00291
ref: 4

COVER,FRAME LWR,L

€ 21.00

5

0354105163
ref: 5

SCREW

€ 1.50

6

6813126E3024G
ref: 6
FOR 22U, 33J

EMBLEM,FRAME COVER

€ 9.50

6

6813126E300FP
ref: 6
FOR Y7F

EMBLEM,FRAME COVER

€ 7.00

6

6813126E301RR
ref: 6
FOR Y7G

EMBLEM,FRAME COVER (GOLD)

€ 9.00

7

4716121E00
ref: 7

CUSHION,FRAME COVER FR

€ 7.50

8

0940910306
ref: 8

CLIP

€ 3.00

9

0932010501
ref: 9

CUSHION

€ 5.50

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0913606105
ref: 11

SCREW(6X20)

€ 2.00

12

0918006286
ref: 12

SPACER(6.5X10X9.4)

€ 2.50

13

0932010045
ref: 13

CUSHION

€ 3.50

14

4716127E00
ref: 14

CUSHION,FRAME COVER UPR

€ 6.50

15

4731126E0022U
ref: 15

COVER,FRAME CTR

€ 35.00

15

4731126E0033J
ref: 15

COVER,FRAME CTR

€ 38.00

15

4731126E00Y7F
ref: 15

COVER,FRAME,CENTER (BROWN)

€ 35.50

15

4731126E00Y7G
ref: 15

COVER,FRAME CTR

€ 30.00

16

4733126E00291
ref: 16

COVER,FRAME RR

€ 52.00

17

0324115123
ref: 17

SCREW

€ 2.50

18

0914805020
ref: 18

NUT

€ 2.00

19

0214206163
ref: 19

SCREW

€ 2.50

20

0916106021
ref: 20

WASHER(6.3X16X1.5)

€ 2.50
