STEERING STEM (GSF1200T/V/W/X/ST/SV/SW/SX)

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

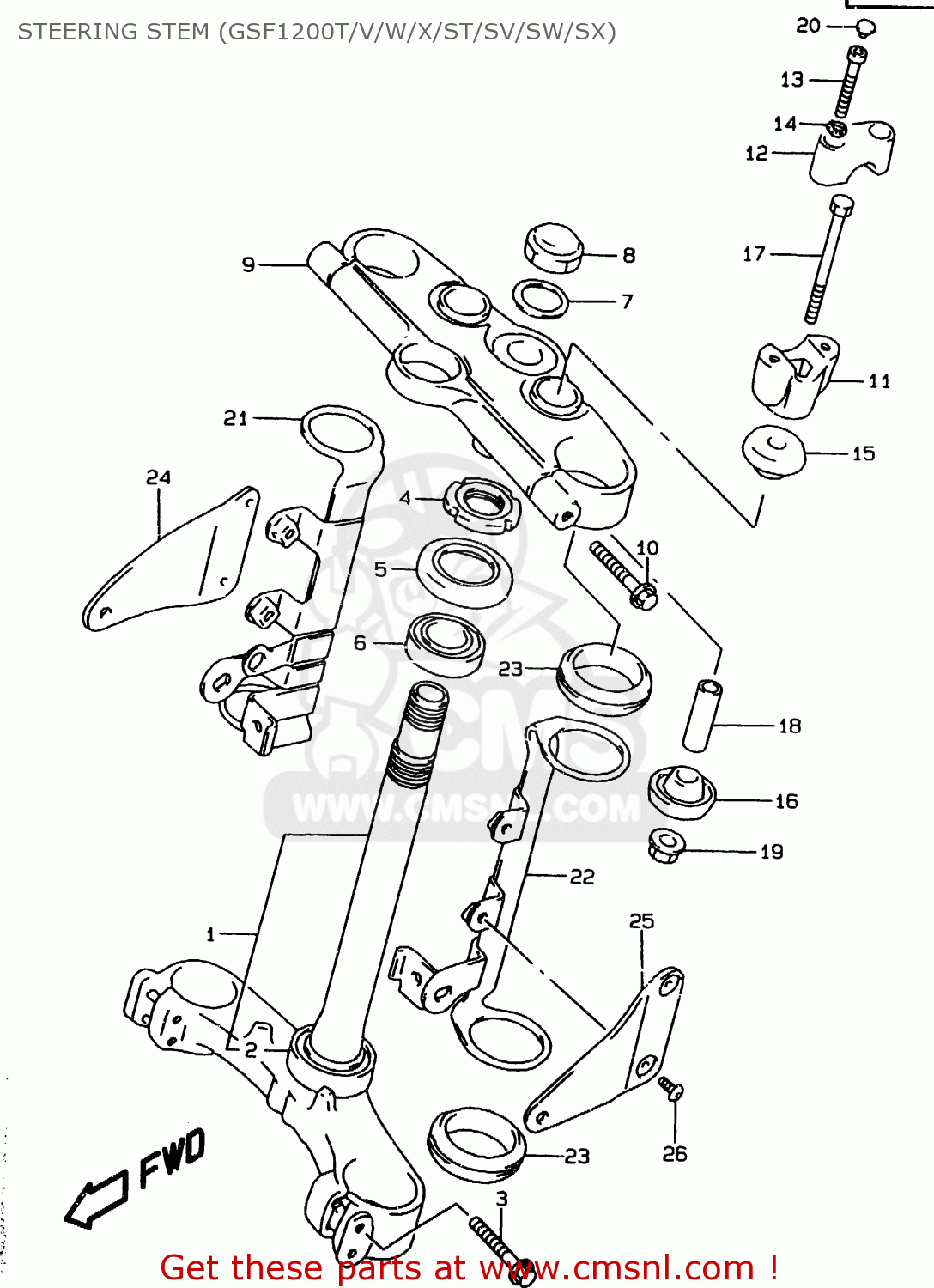

Steering stem (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

STEERING STEM (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

STEERING STEM (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5141027E01
ref: 1

STEM,STEERING

€ 534.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0155008407
ref: 3

BOLT

€ 3.50

4

5163128000
ref: 4

NUT,STEERING STEM(25X44X10)

€ 12.50

5

5164349002
ref: 5

SEAL,STEERING UPR DUST

€ 7.50

6

0926525019
ref: 6

BEARING(25X47X15)

€ 48.50

7

5135624B01
ref: 7

WASHER(22.5X32X1.6)

€ 3.00

8

5135324B00
ref: 8

NUT,CAP

€ 21.50

9

5131127E00
ref: 9

HEAD,STEERING STEM

€ 423.50

10

0155008407
ref: 10

BOLT

€ 3.50

11

5622127E00
ref: 11

HOLDER,HANDLE UNDER

€ 48.50

12

5621127E00
ref: 12

HOLDER,HANDLE UPR

€ 33.00

13

0713008307
ref: 13

BOLT

€ 4.50

14

0916408015
ref: 14

WASHER

€ 3.00

15

5624127E00
ref: 15

CUSHION,RUBBER UPR

€ 32.50

16

5624228C60
ref: 16

CUSHION,RUBBER UNDER

€ 22.50

17

5632127E00
ref: 17

BOLT,HANDLE HOLDER(10X70)

€ 6.00

18

5624342A00
ref: 18

SPACER

€ 6.00

19

0831931107
ref: 19

NUT

€ 3.00

20

0925006011
ref: 20

CAP(OD:11)

€ 2.50

21

5153027E00
ref: 21
GSF1200T/V/W/X

BRACKET,HEADLAMP HOUSING,R

€ 58.50

22

5154027E00
ref: 22
GSF1200T/V/W/X

BRACKET,HEADLAMP HOUSING,L

€ 58.50

23

5155315D00
ref: 23
GSF1200T/V/W/X

DAMPER,HEADLAMP HSG BRACKET

€ 5.00

24

5185127E00
ref: 24
GSF1200T/V/W/X

STAY,HEADLAMP HOUSING,R

€ 49.50

25

5186127E00
ref: 25
GSF1200T/V/W/X

STAY,HEADLAMP HOUSING,L

€ 44.00

26

0913906027
ref: 26
GSF1200T/V/W/X

SCREW(6X12)

€ 3.00
