STAND

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

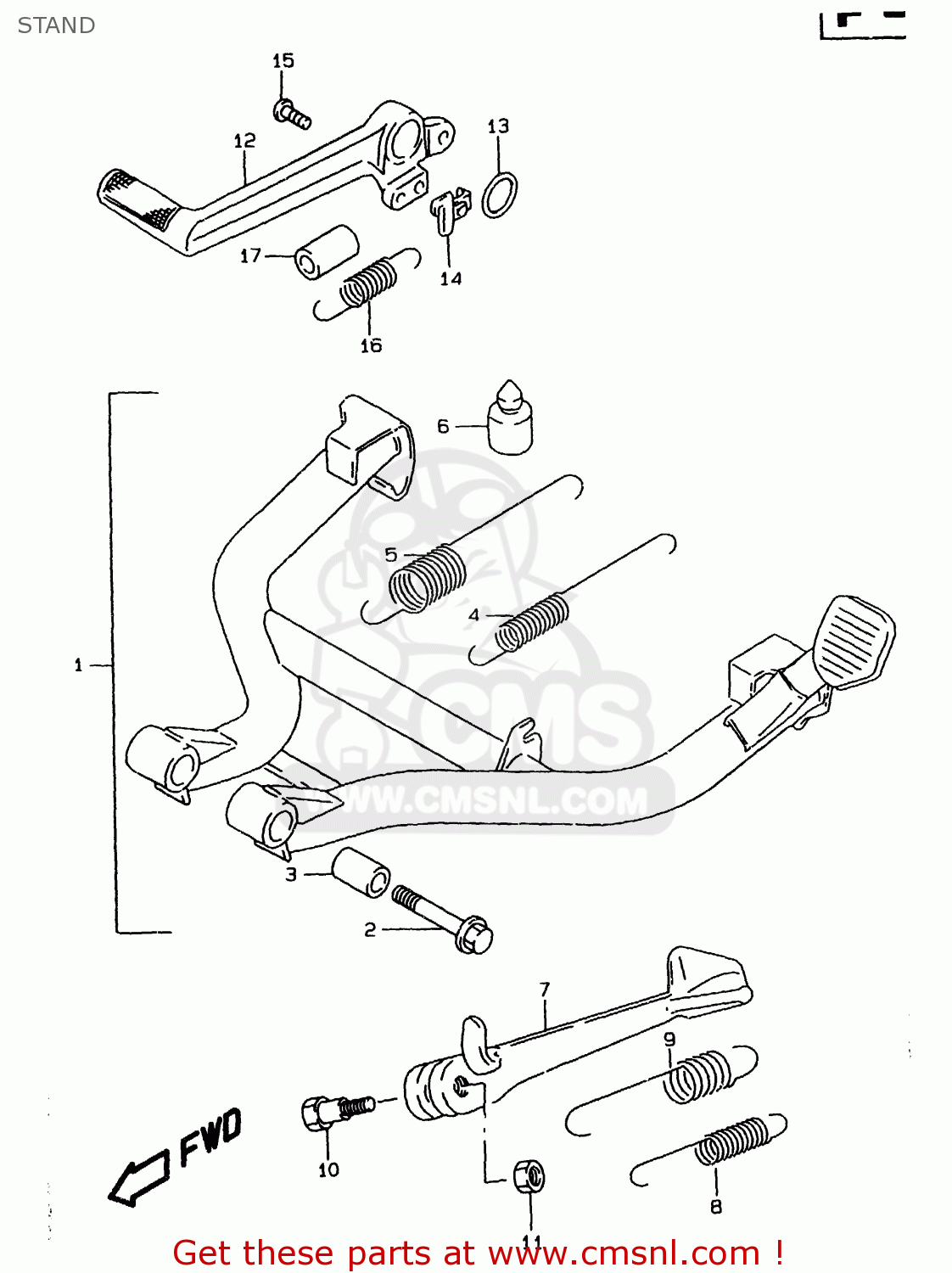

Stand diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

STAND GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

STAND GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4210026821
ref: 1
MODEL T

STAND,CENTER

€ 173.50

1

4210026822
ref: 1
MODEL V/W/X

STAND SET,CTR

€ 173.50

2

0910310126
ref: 2

BOLT(10X48)

€ 4.50

3

0918010113
ref: 3

SPACER(10X16X25.5)

€ 13.50

4

0944314059
ref: 4

SPRING

€ 9.50

5

0944322013
ref: 5

SPRING OUTER

€ 7.00

6

0932110017
ref: 6

CUSHION

€ 5.50

7

4231027E01
ref: 7

STAND,PROP

€ 118.50

8

0944312036
ref: 8

SPRING

€ 7.50

9

0944319010
ref: 9

SPRING

€ 6.00

10

0911110027
ref: 10

BOLT(10X34)

€ 3.50

11

0915910027
ref: 11
MODEL T/V/W

NUT

€ 3.00

11

0831921103
ref: 11
MODEL X

NUT

€ 2.00

12

4311131E01
ref: 12

PEDAL,BRAKE

€ 100.50

13

0916018022
ref: 13

WASHER(18X24X1)

€ 3.00

14

4356032C00
ref: 14

BRACKET,STOP LAMP SWITCH SPR

€ 3.00

15

0211205163
ref: 15

SCREW

€ 2.00

16

0944313029
ref: 16

SPRING

€ 5.00

17

4326117C00
ref: 17

TUBE,BRAKE SPRING GUIDE

€ 5.50
