COWLING BODY (GSF1200ST/SV/SAV)

GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

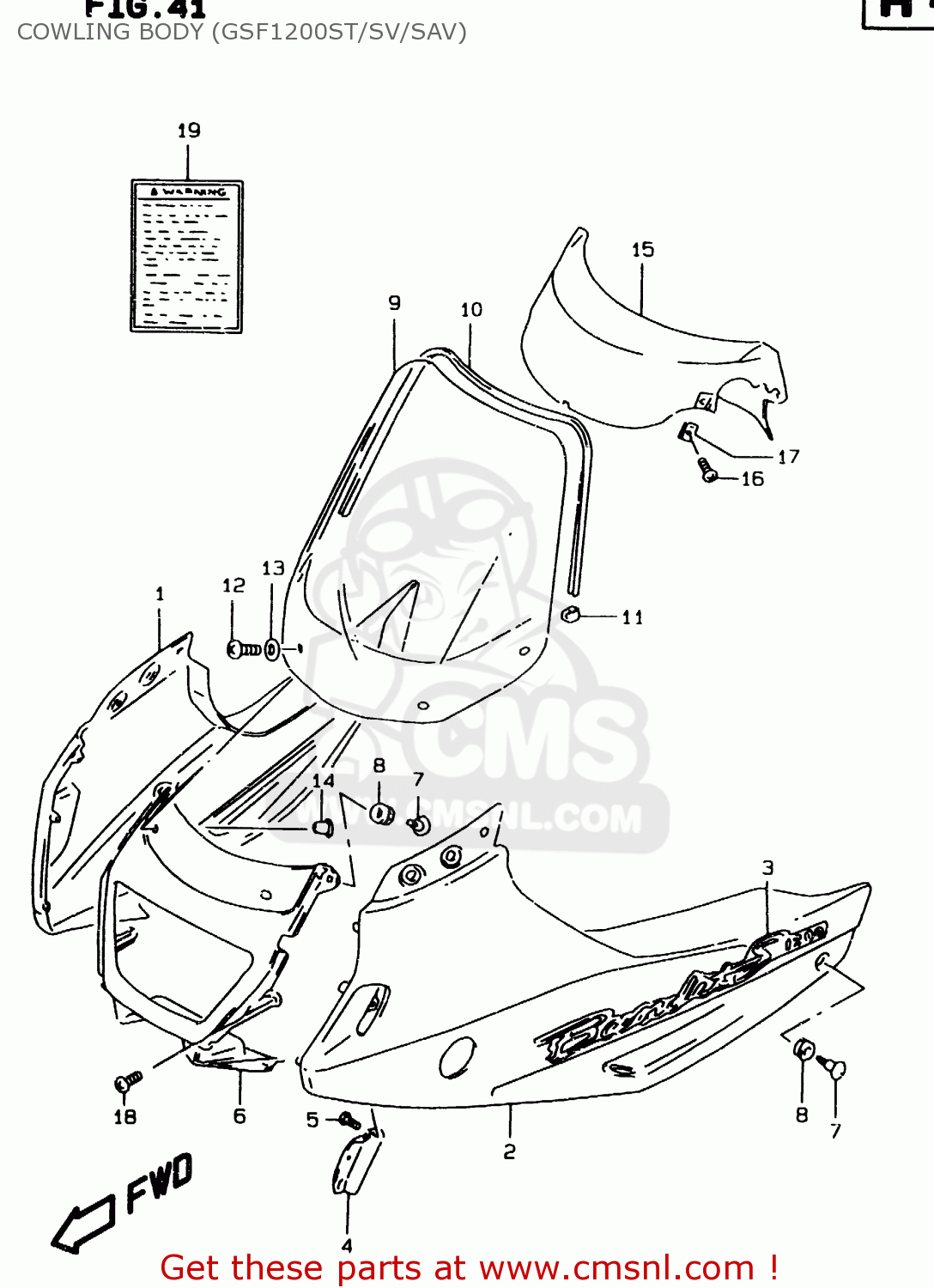

Cowling body (gsf1200st/sv/sav) diagram GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

COWLING BODY (GSF1200ST/SV/SAV) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

COWLING BODY (GSF1200ST/SV/SAV) GSF1200 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

9440127E1022U
ref: 1

COWLING ASSY,SIDE,R

€ 233.00

1

9440127E0033J
ref: 1

COWLING ASSY,SIDE,R

€ 579.00

1

9440127E00Y98
ref: 1
MODEL T

COWLING ASSY,SIDE,R

€ 241.50

1

9440127E00Y0N
ref: 1
MODEL V

COWLING ASSY,SIDE,R

€ 212.00

2

9440227E1022U
ref: 2

COWLING ASSY,SIDE,L(MAROON)

€ 233.00

2

9440227E0033J
ref: 2

COWLING ASSY,SIDE,L

€ 227.50

2

9440227E00Y98
ref: 2
MODEL T

COWLING ASSY,SIDE,L

€ 241.50

2

9440227E00Y0N
ref: 2
MODEL V

COWLING ASSY,SIDE,L

€ 227.50

3

6868127E00F6G
ref: 3
FOR 22U, 33J, Y0N

EMBLEM,COWLING SIDE

€ 19.50

3

6868127E00F7F
ref: 3
FOR Y98

EMBLEM,COWLING SIDE

€ 24.00

4

9441326E00
ref: 4

COVER,COWLING INNER,R

€ 15.00

4

9442326E00
ref: 4

COVER,COWLING INNER,L

€ 11.00

5

0354105103
ref: 5

SCREW 5X10

€ 1.50

6

9440326E1022U
ref: 6

COWLING ASSY,CTR

€ 82.50

6

9440326E0033J
ref: 6

COWLING ASSY,CTR

€ 73.00

6

9440326E00Y98
ref: 6
MODEL T

COWLING ASSY,CTR

€ 73.00

6

9440326E00Y0N
ref: 6
MODEL V

COWLING ASSY,CTR

€ 77.00

7

0913906087
ref: 7

SCREW(6X20)

€ 4.00

8

0932009016
ref: 8

CUSHION

€ 2.50

9

9461026E01
ref: 9

WINDSCREEN SET

€ 229.00

10

9463133C01
ref: 10

MOLDING WINDSCREEN

€ 10.00

11

9463721E00
ref: 11

CLIP,WINDSCREEN MOLDING

€ 4.00

12

0913905025
ref: 12

SCREW(5X14)

€ 2.00

13

0832201053
ref: 13

WASHER

€ 2.50

14

0915905019
ref: 14

NUT

€ 5.50

15

9464027E00
ref: 15

PANEL,INNER

€ 55.50

16

0324205123
ref: 16

SCREW

€ 1.50

17

0914805038
ref: 17

NUT

€ 2.50

18

0214215163
ref: 18

SCREW

€ 3.00

19

6861248B00
ref: 19

LABEL (WARNING SCREEN)

€ 6.50

19

6861248B10
ref: 19
E4, E34

LABEL (WARNING SCREEN)

€ 6.50

19

6861248B20
ref: 19
E18, E22

LABEL (WARNING,SCREEN)

€ 6.50
