ALTERNATOR
GSF1200S BANDIT 1999 (X) USA (E03)

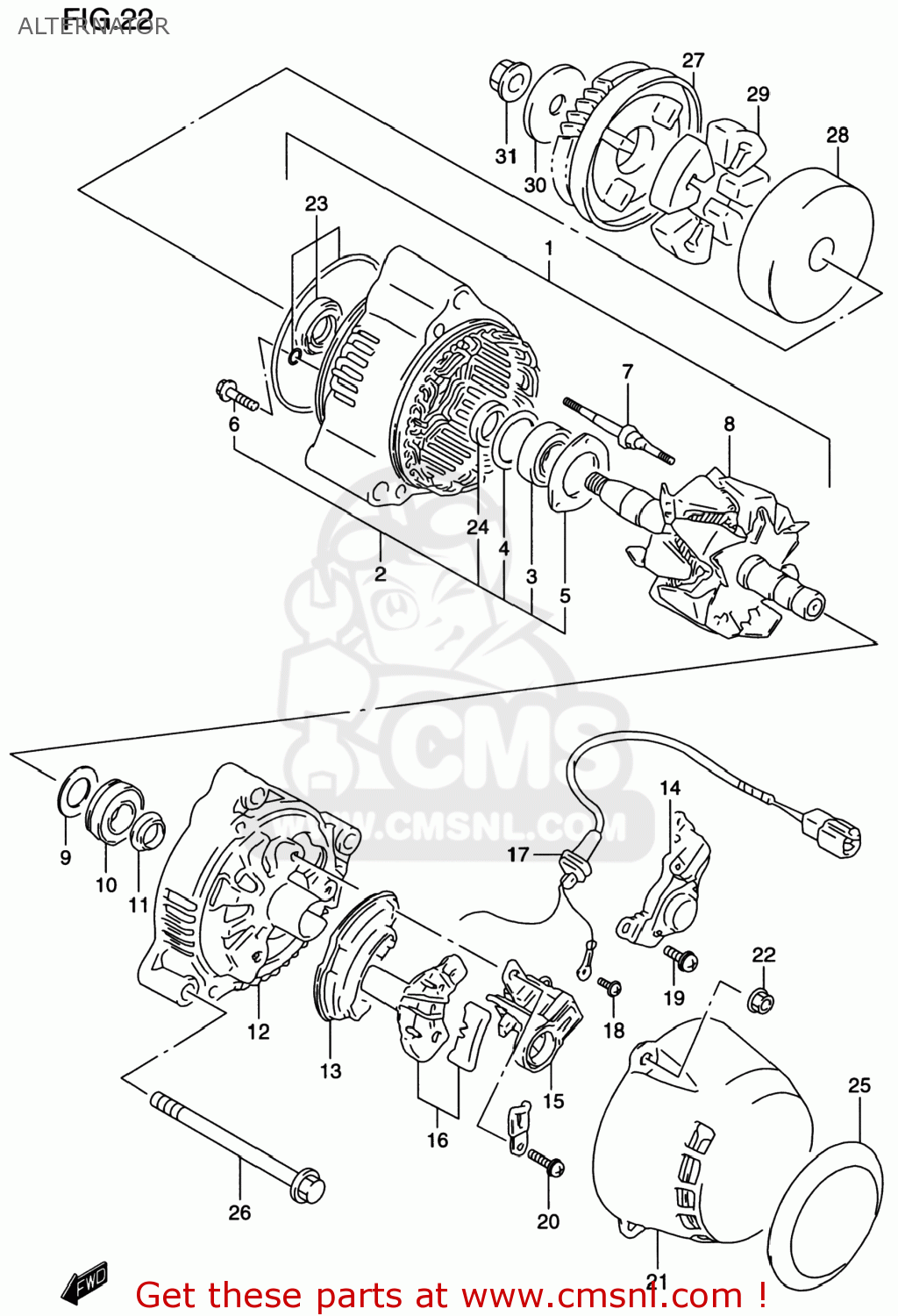

Alternator diagram GSF1200S BANDIT 1999 (X) USA (E03)
ALTERNATOR GSF1200S BANDIT 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3140017C04
ref: 1-1
ALTERNATOR ASSY
€ 1,063.50
1-2
3140019C10
ref: 1-2
31400-17C04
ALTERNATOR ASSEMBLY
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
€ 248.50
3
3161206B00
ref: 3
BEARING
€ 36.50
4
3161348B00
ref: 4
COVER,BEARING
€ 5.50
5
3158548B00
ref: 5
RETAINER
€ 9.00
6
3158648B00
ref: 6
SCREW,BEARING RETAINER
€ 3.50
7
3158785250
ref: 7
STUD BOLT
€ 9.00
8-1
3171048B04
ref: 8-1
ALTERNATOR ASSY
€ 277.50
8-2
3171019C10
ref: 8-2
ROTOR ASSY
€ 283.00
9
3161382610
ref: 9
COVER,BEARING
€ 3.50
10
3161248B00
ref: 10
BEARING
€ 42.50
11
3161327A10
ref: 11
COVER(2)
€ 5.50
12
3161148B00
ref: 12
FRAME,END
€ 83.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
€ 225.50
14
3250027A00
ref: 14
REGULATOR
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
€ 55.50
16
3168717E00
ref: 16
COVER,RECTIFIER
€ 4.50
17
3148048B00
ref: 17
WIRE,LEAD
€ 22.00
18
0211204063
ref: 18
02112-0406B
SCREW 4X6
€ 2.00
19
3168827A00
ref: 19
SCREW
€ 2.50
20
3168827A00
ref: 20
SCREW
€ 2.50
21
3161448B00
ref: 21
COVER
€ 67.50
22
0831610053
ref: 22
08316-1005A
NUT
€ 2.50
23
3178027X50
ref: 23
SERVICE KIT(A)
€ 47.50
24
3177606B00
ref: 24
SPACER
€ 22.00
25
3161527E00
ref: 25
PLATE,ALTERNATOR ABSORBER
€ 10.00
26
0155008903
ref: 26
01550-0890B
BOLT
€ 3.50
27
2273027A05
ref: 27
GEAR,GENERATOR DRIVEN
€ 183.50
28
2273327A05
ref: 28
HOUSING,GENERATOR GEAR DAMPER
€ 95.00
29
2123106B00
ref: 29
DAMPER,GENERATOR DRIVEN
€ 5.50
30
0821110283
ref: 30
WASHER
€ 3.00
31
0831620103
ref: 31
08316-2010B
NUT
€ 3.50
