prices are in EUR
ref
part #
description
quantity
1

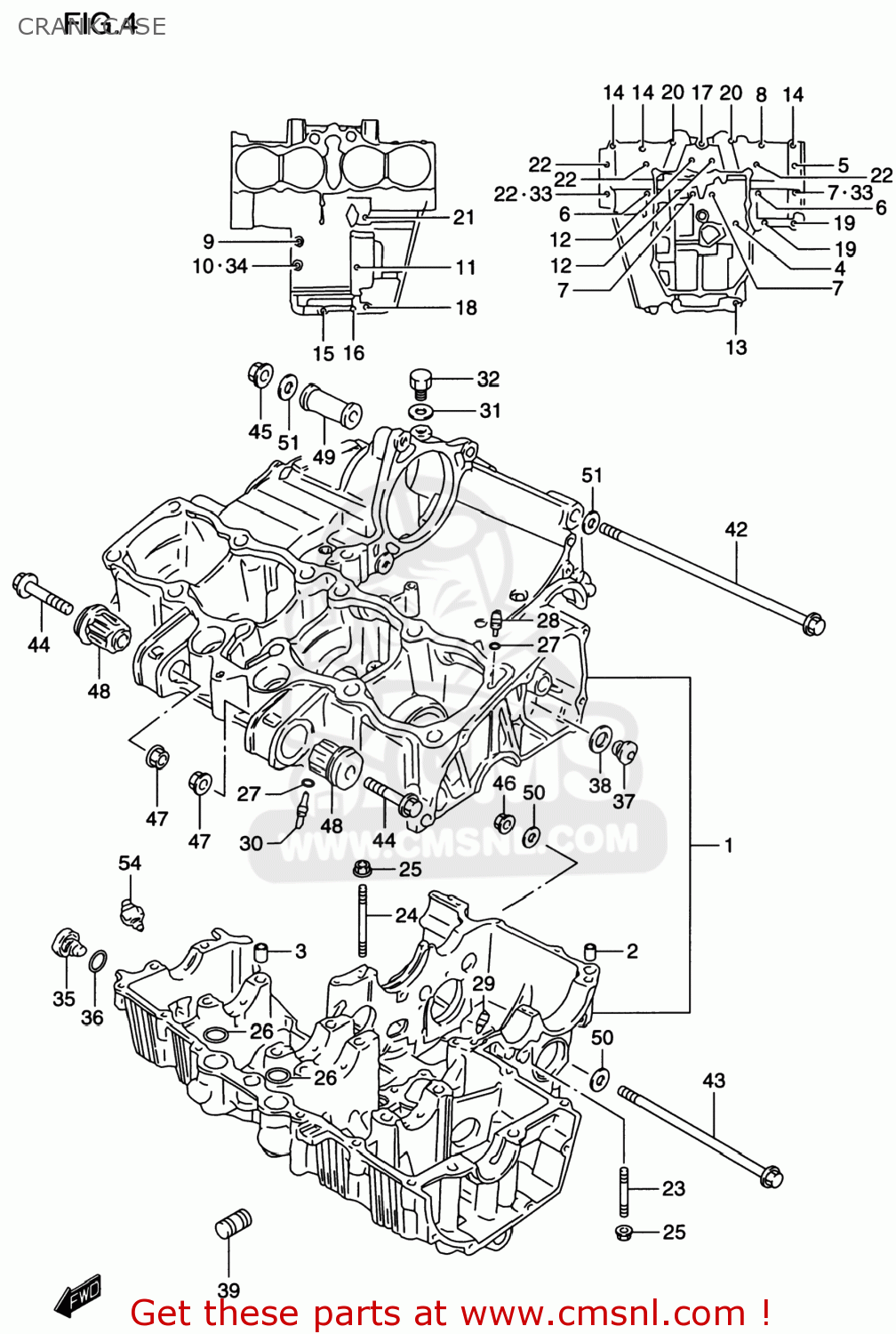

CRANKCASE SET
2
PIN(10.4X13X22)
3
PIN(8.4X11X20)
4
BOLT(6X105)
5
BOLT(8X105)
6
BOLT(8X125)
7
BOLT(8X115)
8
BOLT
9
BOLT
10-2
BOLT
11
BOLT
14
BOLT
15
BOLT
16
BOLT
17
BOLT
18
BOLT
19
BOLT, HYDRAULIC UNIT NO.2
25
NUT
26
O RING(D:2.5,ID:21)
27
O RING(D:1.2,ID:4)
28
JET,AIR
29
JET
30
JET(13)
31
GASKET(12.1X16.2X3.7) (NAS)
32
PLUG(12X9)
33
GASKET(8.5X17X2.3) (NAS)
34
GASKET(6.2X13X1.2) (NAS)
35
PLUG
36
O RING(D:2.4,ID:16.8)
37
PLUG
38
GASKET(13.8X18.8X4.8) (NAS)
39
UNION,OIL STAND
40
BEARING,CRANK THRUST(GREEN)
40
BEARING,CRANK THRUST(GREEN)
40
BEARING,CRANK THRUST(GREEN)
41-1
BEARING,CRANK THRUST(PINK)
41-1
BEARING,CRANK THRUST(PINK)
41-1
BEARING,CRANK THRUST(PINK)
41-2
BEARING,CRANK THRUST(BROWN)
41-3
BEARING,CRANK THRUST(RED)
41-4
BEARING,CRANK THRUST(YELLOW)
41-4
BEARING,CRANK THRUST(YELLOW)
41-5
BEARING,CRANK THRUST(GREEN)
41-6
BEARING,CRANK THRUST(BLUE)
41-7
BEARING,CRANK THRUST(ORANGE)
41-7
BEARING,CRANK THRUST(ORANGE)
41-8
BEARING,CRANK THRUST(BLACK)
42
BOLT(10X180)
44
BOLT,ENGINE MOUNTING (10X5)
45
NUT
46
NUT 12MM
47
NUT
48
BUSH,ENGINE MOUNTING
49
SPACER,ENGINE MOUNT(L27)
51
WASHER
52
SWITCH ASSEMBLY,OIL PRESSURE
